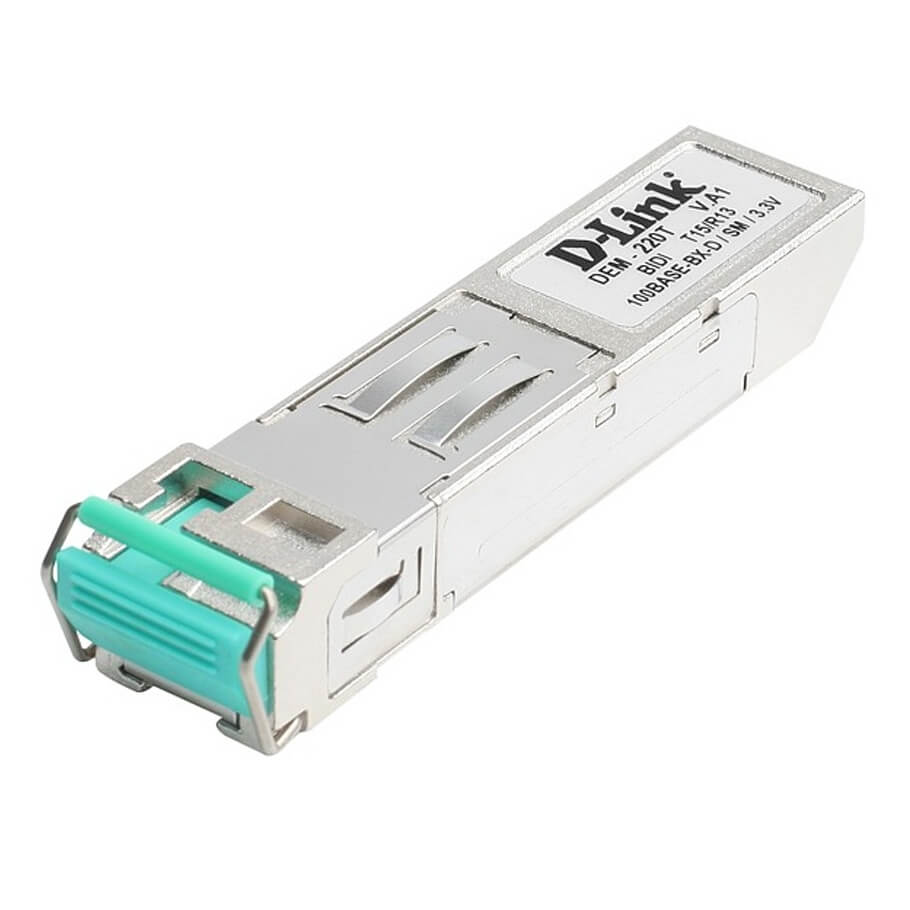

SFP Transceiver 100Base-BX-D Single-Mode D-Link DEM-220T
- Bi-directional SFP transceivers-DEM-220T/220R Fast Ethernet optical cable - external transceivers is designed for installation in SFP ports (Small Form-Factor Pluggable) network devices to transmit and receive data over fiber. Transceivers are made in a compact and provide 100Base-BX interface for fast, reliable data transmission over long distances and the flexibility needed in today's fiber networks.
Specifications
| Model | DEM-220T |
| Standards | IEEE 802.3ah 100BASE-BX |
| Wavelength | Tx: 1550nm RX: 1310nm |
| Connector | Simplex LC connector |
| Fiber type | 9/125um Single-mode Fiber |
| Maximum Fiber Cable Length | 20km |
| Transmit Power Range | -14 to -8dBm |
| Receive Power Range | -32 to -3dBm |
| Sensitivity | -32dBm |
| Power budget | Minimum: 18dB Maximum: 30dB |
| Power | 3.3V |
| Supply Current | 200mA |
| Dimensions | 55.5 x 13.4 x 28.11mm |
| Weight | 19.1g |
- Bảo hành 36 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
