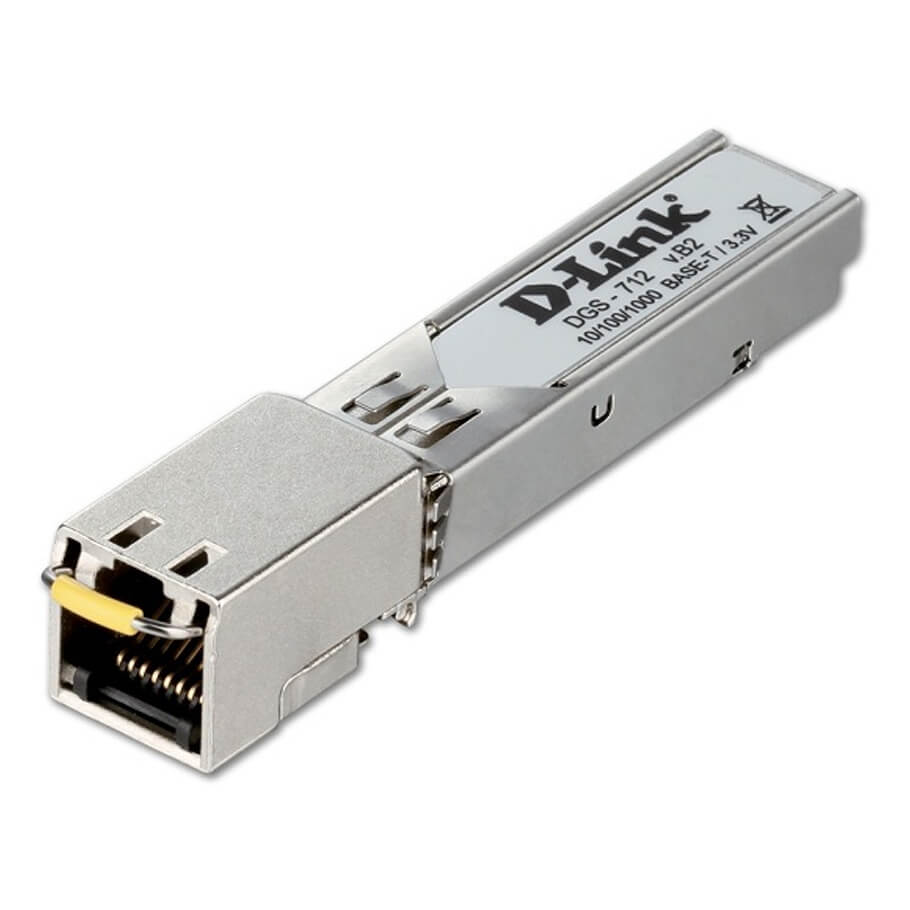

SFP Transceiver 10/100/1000Base-T (UTP) D-Link DGS-712

SFP Transceiver 10/100/1000Base-T (UTP) D-Link DGS-712

Standard

- IEEE 802.3ab 1000BASE-T Gigabit Ethernet

Transceiver Type

- SFP (Small Form Pluggable)

Connector

- RJ-45

Auto MDI/MDIX

- Automatic crossover detection enabled

- External crossover cable not required

Data Rate

- 1000 Mbps (IEEE 802.3 compatible)

- 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

Cable Type

- Cat. 5 twisted-pair cable

Maximum Cable Distance Coverage

- 100 meters

Supply Current

- 350mA (typical)

- 400mA (maximum)

- 1.3W max power over full range of voltage and temperature

Input Voltage

- 350mA (typical)

- 400mA (maximum)

- 1.3W max power over full range of voltage and temperature

Surge Current

- 350mA (typical)

- 400mA (maximum)

- 1.3W max power over full range of voltage and temperature

- Bảo hành 36 tháng.
