0916 287 068 1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S301SX
Trang Chủ >>
Chuyển đổi Quang-điện >> SFP Transceiver D-Link >> 1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S301SX
Mã số:04059116

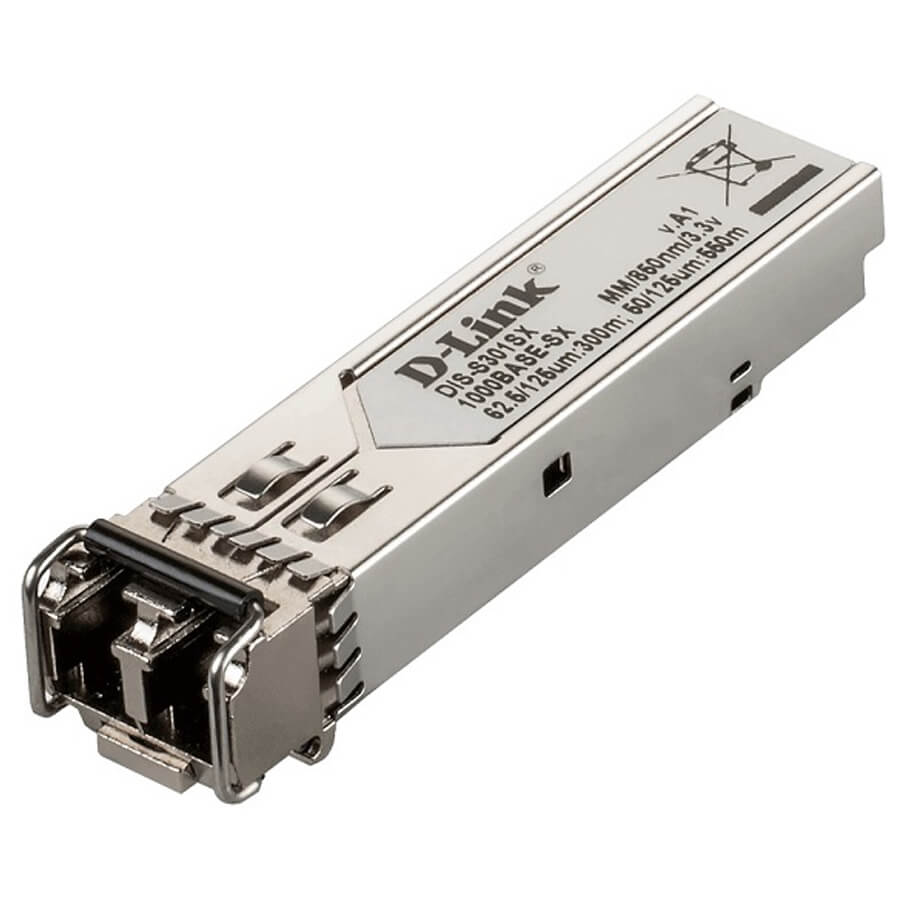

1-port Mini-GBIC SFP to 1000BaseSX Multi Mode Fiber Transceiver D-Link DIS-S301SX
- 850 nm multi-mode transceiver
- Maximum distance of up to 550 m
- Duplex LC connector
- MSA, RoHS-compliant
- Hot pluggable
- -40 ~ 85°C operating temperature
Specifications
| Model | DIS-S301SX |
| Transceiver Type | SFP |
| Fiber Media support | Multi-Mode |
| Distance | 62.5/125um: 300m 50/125um: 550m |
| Speed | 1.25Gbps |
| Wavelength | 850nm |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Output Optical Power (TX Optical Power) | MAX.: -3dBm MIN.: -8 dBm |
| Input Optical Power (RX Optical Power) | MAX.: - 3 dBm MIN.: - 22 dBm |
| Sensitivity | -22dBm |
| Cable Type | Multi-mode 50/125um or 62.5/125um fibre |
| Power | 3.3V |
| Max Input Current | 300mA |
| Power Budget (MIN Power Budget) | 14dB |
| MAX Power Budget | 19dB |
| Operation Temperature | -40~85℃ |
| Storage Temperature | -40~85℃ |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension (W x D x H) | 13.7 x 55.4 x 8.5mm |
| Weight | 20g |
- Bảo hành: 36 tháng.
Giá: 2.977.000 VND
(Đã bao gồm VAT)
