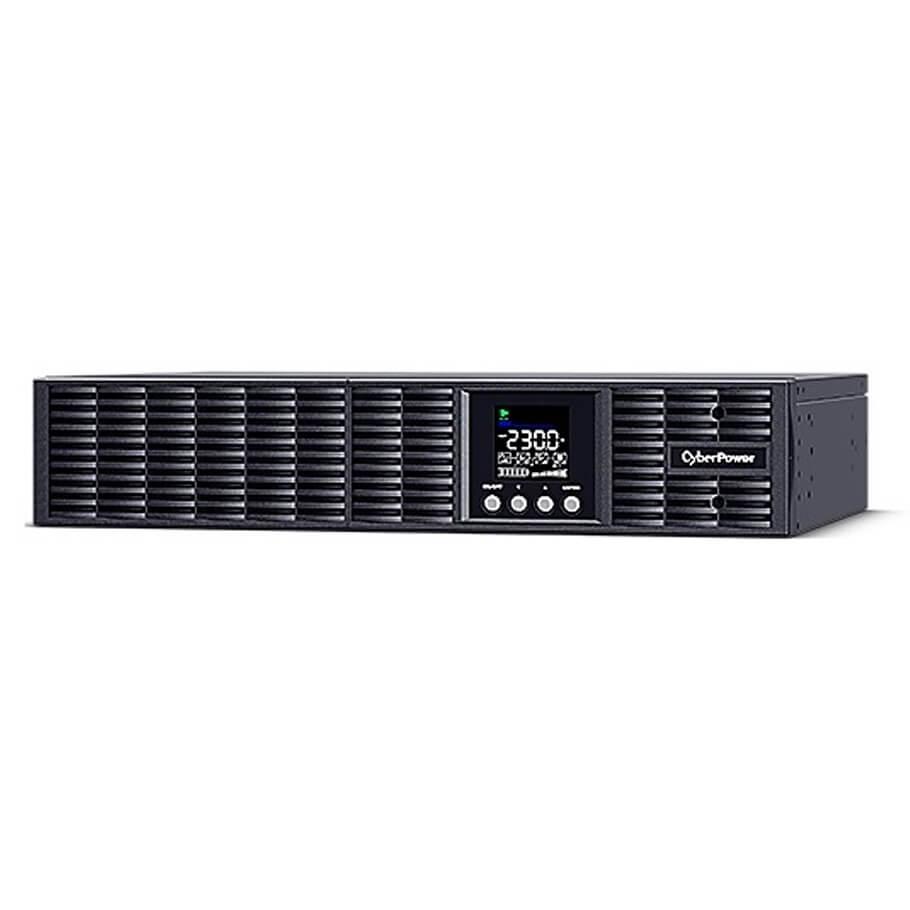

Nguồn lưu điện UPS CyberPower OLS2000ERT2UA

Trang Chủ >> Nguồn lưu điện-Ắc quy >> Nguồn lưu điện CyberPower >> Nguồn lưu điện UPS CyberPower OLS2000ERT2UA
Mã số:28088649
Nguồn lưu điện UPS CyberPower OLS2000ERT2UA

Nguồn lưu điện UPS CyberPower OLS2000ERT2UA

- Công nghệ: On-line double conversion.

- Công suất: 2000VA/1800W.

- Điện áp vào: 160-300 VAC (dòng 2KVA/3KVA là 190~300VAC).

- Power Factor: 0.9.

- Tần số nguồn vào: 40-70 Hz.

- Điện áp ra: 200, 208, 220, 230, 240VAC (Configurable) ±1%.

- Tần số nguồn ra: 50 Hz ± 0.5%.

- Hot swaps battery.

- Tự động nhận tủ acquy ngoài mở rộng.

- Màn hình hiển thị LCD màu và Led (xoay được 90 độ).

- Bảo vệ chống sét lan truyền: RJ11/RJ45 (One In/One Out).

- EPO (Emergency power off): ngắt out khẩn cấp.

- Cổng tiếp điểm khô (Dry contact).

- Quạt làm mát có 20 chế độ (tự động).

- Cổng kết nối: RS232, USB.

- SNMP/HTTP Remote Management Capability (Optional).

- Phần mềm: PowerPanel®Business Edition.

- Kiểu dáng: Rack 2U Or Tower.

Đặc tính kỹ thuật

Model OLS2000ERT2UA
General
Phase Single Phase
Form Factor Rack, Tower
UPS Topology On-line double conversion
Energy Saving Technology ECO Online mode efficiency> 95%
Active PFC Compatibility Yes
Input
Compatible with Generators Yes
Nominal Input Voltage 230VAC ± 10%
Input Voltage Range 190 ~ 300 VAC
Adjustable Voltage Range 0 ~ 30% load 80 ~ 300 Vac
0 ~ 50% load 120 ~ 300 Vac
0 ~ 75% load 160 ~ 300 Vac
0 ~ 90% load 190 ~ 300 Vac
0 ~ 100% load 200 ~ 300 Vac
Input Frequency 50Hz ± 10
60Hz ± 10
Input Frequency Detection Auto-sensing
Rated Input Current 9A
Input Power Factor 0.99
Input Connector Type IEC C14
Detachable Power Cord Plug Type Schuko x 1
Power Cord Length 5ft
Power Cord Length 1.5m
Output
Capacity 2000VA
Capacity 1800W
On Battery Waveform Pure Sine Wave
On Battery Voltage 208 ± 1%
220 ± 1%
230 ± 1%
240 ± 1%
Output Voltage Setting Configuration
On Battery Frequency 50Hz ± 0.5%
60Hz ± 0.5%
Output Frequency Setting Configuration
Power Factor 0.9
ECO voltage mode ± 15%
Overload Protection Internal Current Limiter, Circuit Breaker, Fuse
Overload Protection (Line Mode) 110 ~ 120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode) 110 ~ 120% Load for 10 sec,> 120% Load Immediately
Overload Protection (Bypass Mode) > 130% Download immediately
Peak Factor thirty first
Harmonic distortion (Linear load) THD <3%
Harmonic distortion (Non-linear load) THD <5%
Bypass In Auto Bypass, Manual Bypass
Socket (s) – Total 8
Socket Type IEC C13 x 8
Electrical Sockets - Battery & Overload Protection 8
Socket (s) - Load (CL) 4
Socket (s) - Unlimited Load (NCL) 4
Normal Switching Time 0
Battery
Runtime at Half Load 11.9 min
Runtime at Full Load 4 min
Typical Recharge Time 4 hours
Maximum Charge Current 1.5A
Start On Battery Yes
Smart Battery Management (SBM) Yes
User-replaceable Yes
Battery Type Sealed Lead-acid
Battery Replacement Set RBP0157
RBP Quantity 1
Number of Batteries 4
Battery Voltage 48V
Battery Capacity 12V 9AH
Surge protection & Filtering
Surge Suppression 363J
EMI/RFI Filtration Yes
Phone/Network Protection RJ11/RJ45 (Combo) 1-in, 1-out
Management & Communications
LCD Control Panel Yes
Color LCD Yes
LCD Orientation Rotable LCD screen - Manual
LCD Information Display Operational Mode, Energy Status, Battery Condition, Load Status, Error & Warning, OTHER INFORMATION, Events & Logging
LCD Setting & Control Setup Mode, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s) 1
Dry Switch Yes
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overcharge, Overcharge, Overheating, UPS Failure, Battery Replacement
Management Cable Power Cord x2, USB Cable x1
Power Management Software PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring Yes - with RMCARD205 option
Physical
Enclosure Construction Metal
Color Black
Others
Dimensions (WxHxD) 438 x 88 x 430 mm
Weight 17.15kg
Installed Rack Height 2U
Operating Temperature 0 ~ 40°C
Storage Temperature -15 ~ 45°C
Operating Relative Humidity (Non-condensing) 0 ~ 95%
Online Thermal Dissipation 682 BTU/hr
Audible Noise at 1.0M from Surface of Unit 45 dBA

- Bảo hành: 24 tháng.
