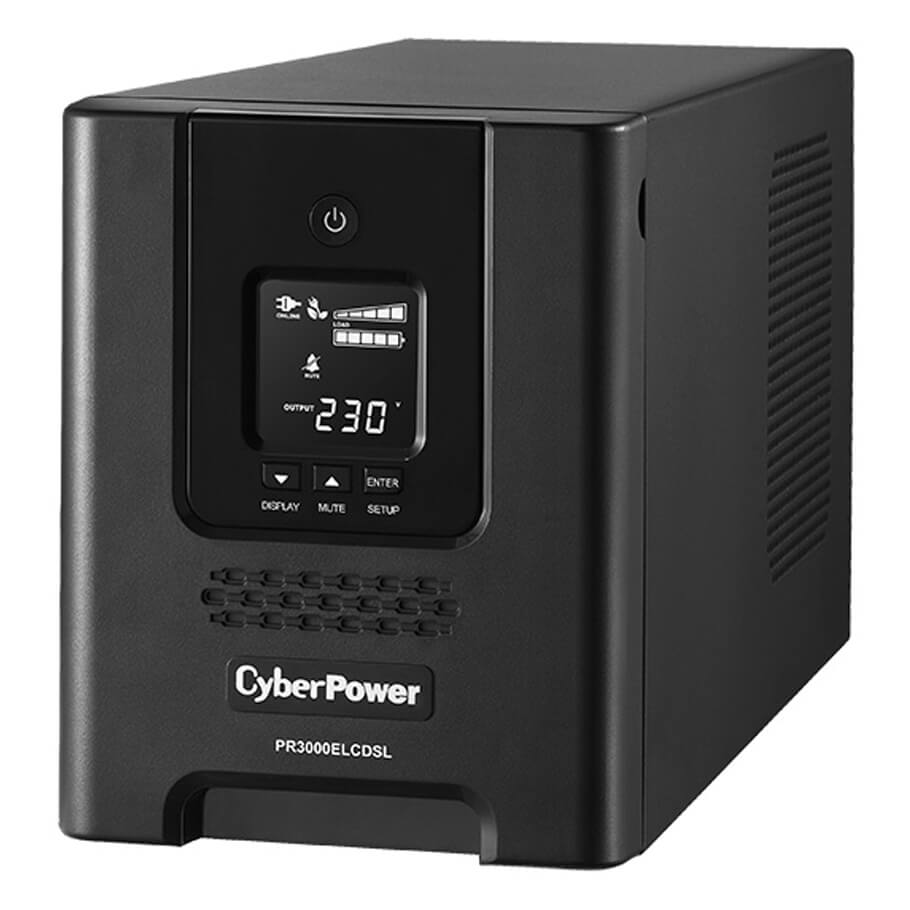

Nguồn lưu điện UPS CyberPower PR3000ELCDSL
– Công nghệ GreenPower UPS™
– Công suất bộ nguồn lưu điện: 3000VA/ 2700W
– Thời gian chuyển mạch: 4ms
– Điện áp ngõ vào: 160 – 283VAC
– Điện áp ngõ ra khi chạy pin: 230VAC
– Tần số ngõ ra khi chạy pin: 50Hz/ 60Hz ± 1%
– Dạng sóng ngõ ra: Sóng sin
– Sử dụng công nghệ Line-Interactive
– UPS thiết kế dạng tháp (tower)
– Automatic Voltage Regulator (AVR): Double Boost, Single Buck
– Cầu trì bảo vệ ngõ ra UPS
– Cổng Emergency Power Off (EPO)
– Hiển thị màn hình LCD
– Thời gian sạc: 8 giờ
– Ắc quy: 12V/ 9AH
– Kết nối với máy tính qua cổng USB và Serial
– Thay thế pin nóng
– Hỗ trợ quản lý từ xa giao thức: SNMP/ HTTP
– Hỗ trợ phần mềm: PowerPanel® Business Edition
Đặc tính kỹ thuật
|
UPS Topology |
Line-Interactive |
|
Energy Saving |
GreenPower UPS™ Bypass Technology |
|
Energy Star Qualified |
Yes |
|
Active PFC Compatible |
Yes |
|
Voltage |
230VAC |
|
Input Voltage Range |
160 – 283VAC |
|
Adjustable Voltage Range |
151 – 297VAC |
|
Input Frequency Range |
50/60Hz ± 3Hz (Auto-sensing) |
|
Plug Type |
IEC 320 C20 |
|
Input Current (Amp) |
16A |
|
Cord Length (m) |
3 |
|
VA |
3000 |
|
Watts |
2700 |
|
On Battery Waveform |
Sine Wave |
|
On Battery Voltage |
230VAC ± 10% |
|
Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
|
Automatic Voltage Regulation (Line Mode) |
Single Buck: 12%Single Boost: 15%Double Boost: 30% |
|
On Battery Frequency |
50/60Hz ± 1% |
|
Overload Protection |
On Utility: Circuit Breaker & Internal circuitry limiting / On Battery: Internal Current Limiting |
|
Outlets - Total |
9 |
|
Outlet Type |
(8) IEC 320 C13, (1) IEC 320 C19 |
|
Outlets - Battery & Surge Protected |
9 |
|
Outlets - Critical Load |
9 |
|
Rated Power Factor |
0.9 |
|
Transfer Time |
4ms |
|
Runtime at Half Load (min) |
7 |
|
Runtime at Full Load (min) |
2 |
|
Battery Type |
Sealed Lead Acid |
|
Battery Number |
BB/HRC9-12FR |
|
Battery Size |
12V/ 9AH |
|
Battery Quantity |
4 |
|
User Replaceable |
Yes |
|
Hot-Swappable |
Yes |
|
Typical Recharge Time |
8 hours |
|
Replacement Battery Pack |
RBP0116 |
|
Replacement Battery Pack Quantity |
1 |
|
LCD Control Panel |
Yes |
|
Multifunction LCD Diagnostic Display |
Toggle Status Display includes: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Silent Mode |
|
HID Compliant USB Port |
Yes |
|
Serial Port |
Yes |
|
Emergency Power Off (EPO) Port |
Yes |
|
Management Cable |
USB Cable, Serial Cable, EPO Cable |
|
LED Indicators |
'Power On |
|
Audible Alarms |
On Battery, Low Battery, Overload, Fault |
|
Software |
PowerPanel® Business Edition |
|
SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD202/203 |
|
Form Factor |
Tower |
|
Certifications |
CE, C-Tick |
|
RoHS |
RoHS Compliant |
|
Dimensions (WxHxD) |
170 x 221 x 432 mm |
|
Weight |
24.5 kg |
– Bảo hành: 2 năm
