0916 287 068 Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2
Trang Chủ >>
Camera quan sát >> Đầu ghi hình Hanwha Vision >> Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2
Mã số:02202535

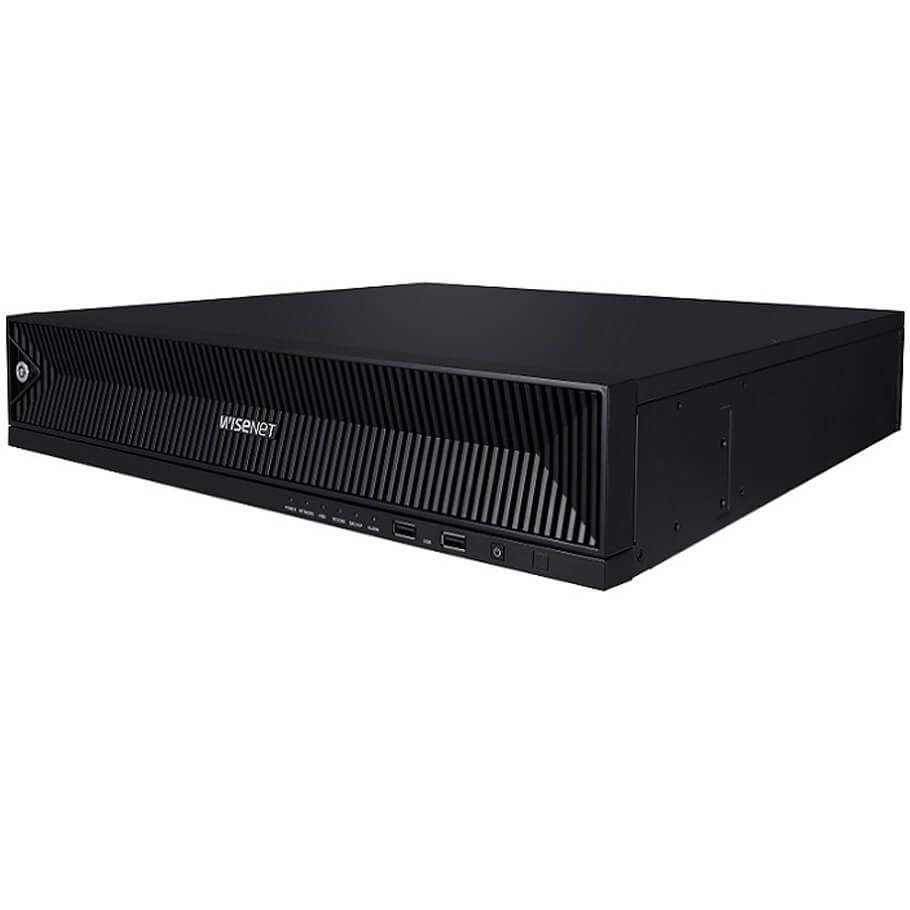

Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2
- Up to 16CH 32MP supported
- Max. 140Mbps network camera recording
- HDMI out
- User friendly UI / UX
- AI search support when working with Wisenet AI camera
- Dynamic Event support
o New event function of cameras is available without software update
- H.265, H.264, MJPEG codec supported
- Bookmark management (Up to 100 set)
- SATA 8ea (Up to 80TB)
Specifications
| Display | |||
| Network camera | Inputs | Max. 16CH | |
| Resolution | 32MP ~ CIF | ||
| Protocols | SUNAPI, ONVIF | ||
| Decoding | Local Display | FHD: HDMI & VGA Dual monitor UHD: HDMI Single monitor |
|
| Multi Screen | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
||
| Resolution | [Local Monitior] FHD Clone mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode: Up to 25fps when displaying more than 10CH |
||
| Performance | |||
| Operating System | Embedded | Linux | |
| Record | Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 140Mbps | ||
| Resolution | 32MP ~ CIF | ||
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | ||
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | ||
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown | ||
| Search & Play | Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | ||
| Simultaneous Playback | Max. 64CH(Local 16CH, Remote 16CH per user) | ||
| Fisheye Dewarping | CMS | ||
| Mode | Date & Time (Calendar), Event list, Text Search, Smart Search | ||
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) | ||
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | ||
| Storage | Supported HDD | Up to 10TB | |
| HDD Slot | SATA 8ea (Max. 80TB) | ||
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | ||
| Network | |||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | ||
| DDNS | Hanwha DDNS | ||
| Transmission Bandwidth | Max. 140Mbps | ||
| Audio | Input/Output | 16 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | ||
| Audio Communication | 2-Way | ||
| Max Remote Users | Search (3), Live Unicast(10), Multicast (20) | ||
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware | ||
| Functions | |||
| Camera Setup | Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
||
| PTZ | Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | ||
| Smart phone | Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | ||
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | ||
| Max. Remote Users | Search(3), Live Unicast(10) | ||
| Redundancy | Failover | N+1 | |
| ARB | Support | ||
| Easy configuration | P2P(QR code) | ||
| Interface | |||
| Storage | Yes | ||
| HDMI | 1EA 3840x2160 30Hz | ||
| VGA | 1EA 1920x1080 60Hz | ||
| Audio | Out 1EA (3.5mm Audio Jack) | ||
| Ethernet | RJ-45 2EA (LAN/WAN, 1Gbps) | ||
| Alarm | In 4EA, Out 2EA | ||
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | ||
| Power inlet | AC 1EA | ||
| General | |||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | ||
| Operating Humidity | 20% ~ 85% RH | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | ||
| Power Consumption | 130W | ||
| Color / Material | Black / Metal | ||
| Dimension (WxHxD) | 440 x 89.8 x 428.4 mm | ||
| Weight | 5.71Kg | ||
- Bảo hành: 24 tháng.
Giá: 20.688.500 VND
(Đã bao gồm VAT)
