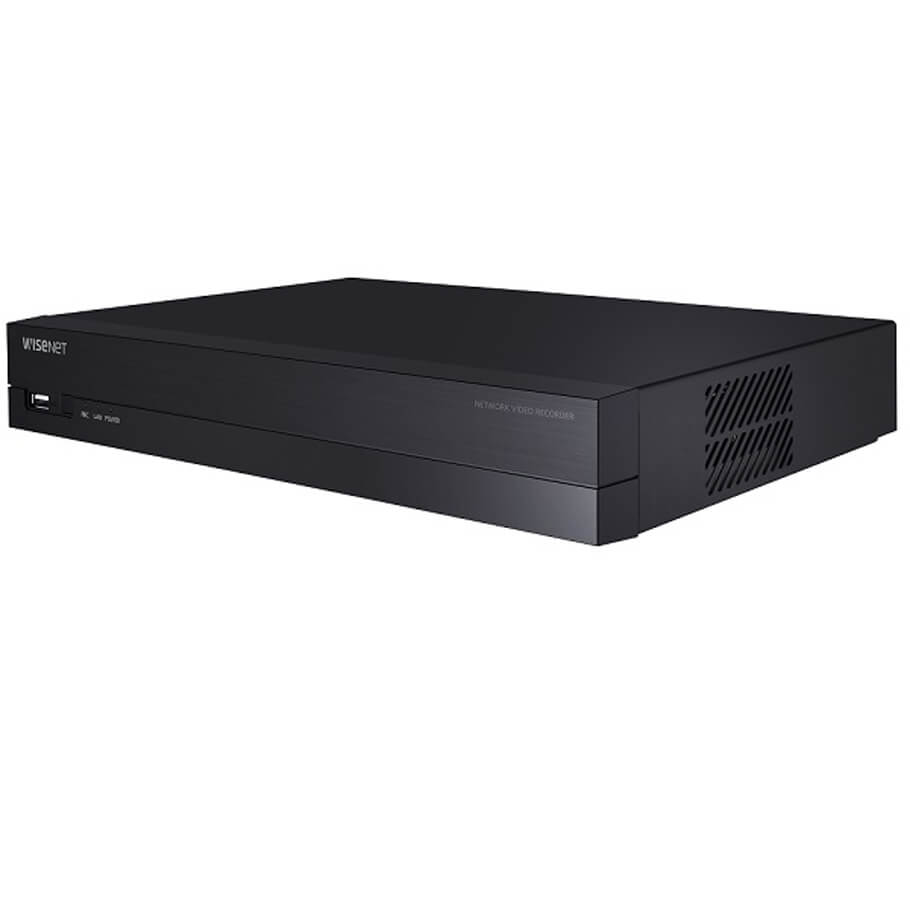

Đầu ghi hình camera IP 4 kênh Hanwha Vision QRN-430S
- Up to 4CH 8MP resolution
- H.265, H.264, MJPEG codec
- 40Mbps network camera recording
- Plug & play by 4 PoE port
- Max. 1 HDD (Up to 6TB)
- HDMI output
- P2P service (QR code)
Specifications
| Display | ||
| Network camera | Inputs | Max. 4CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
|
| Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
|
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH (Local 4CH, Remote 4CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea (Max. 6TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 50Mbps | |
| Audio | Input/Output | 4CH (network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Interface | ||
| Front | Indicator | Power, Record, Network |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| Ethernet | PoE RJ-45(LAN, 10/100) 4 ea, RJ-45 1ea (WAN, 10/100) | |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| Power inlet | DC Adaptor | |
| System | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| General | ||
| Operating Temperature | 0°C to +40°C | |
| Operating Humidity | 20% ~ 85% RH | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max 52W(1HDD, PoE On) | |
| PoE Budget | 35W | |
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300.0 x 47.1 x 208.4 mm | |
| Weight | 1.03Kg | |
- Bảo hành: 24 tháng.
Giá: 7.820.000 VND
(Đã bao gồm VAT)
