0916 287 068 Cáp quang OM3 4FO BELDEN NTAP53WA004BKAA
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp mạng BELDEN >> Cáp quang OM3 4FO BELDEN NTAP53WA004BKAA
Mã số:11571442

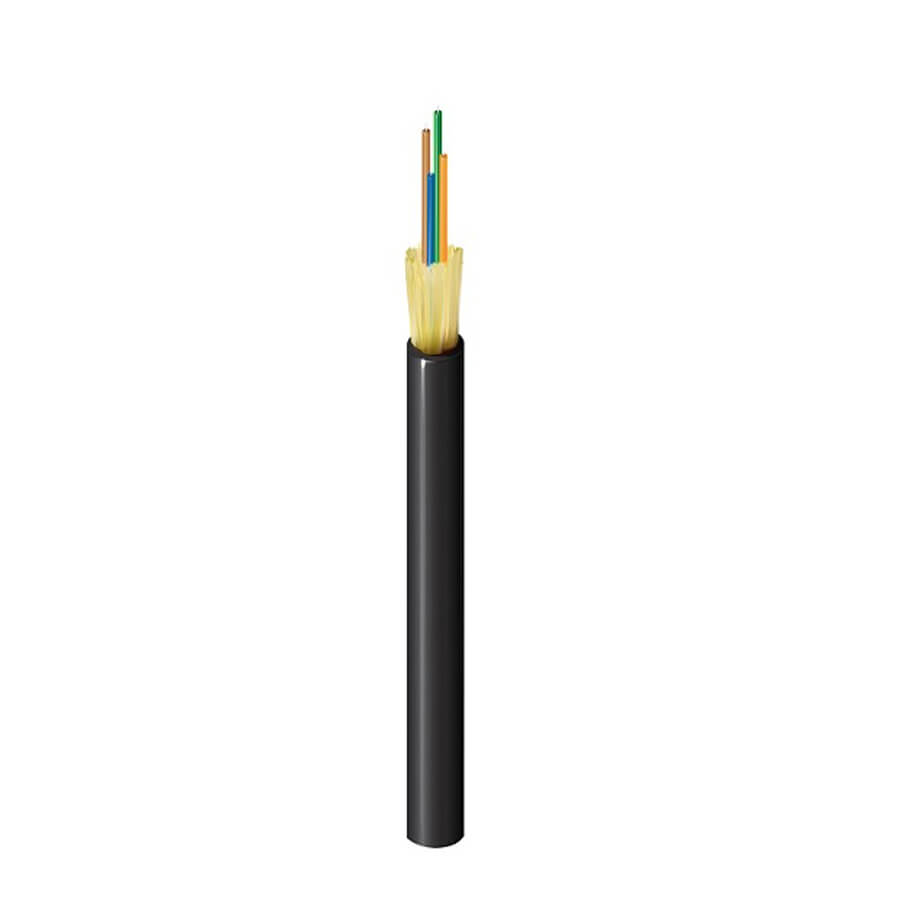

Cáp quang OM3 4FO BELDEN NTAP53WA004BKAA
- Part number: NTAP53WA004BKAA
- Belden Fiber Optic, Tight Buffer, PVC Jacket, Indoor Riser 50/125 (OM), 04FO.
Đặc tính kỹ thuật
| Fiber Specifications | |
| Fiber Type | OM3 |
| Fiber Core Diameter | 50 µm |
| Fiber Diameter | 125 µm |
| Buffer Material | PVC - Polyvinyl Chloride |
| Buffer Construction | Tight Buffer |
| Buffer Diameter | 900 µm |
| Fiber Count | 4 |
| Fiber Color Coding | TIA-598-D |
| Outer Jacket Specifications | |
| Strength Member | Aramid Yarns |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. Diameter | 4.8 mm (0.19 in) |
| Color | Black |
| Optical Characteristics | Wavelength: 850 nm + Max. Attenuation: 3.0 dB/km + Min. Effective Modal Bandwidth (EMB): 2000 MHz.km Wavelength: 1300 nm + Max. Attenuation: 1.0 dB/km |
| Mechanical Characteristics | |
| Min. Bend Radius During Installation | 20 x Cable OD |
| Min. Bend Radius During Operation | 10 x Cable OD |
| Max. Tensile Strength During Installation | 660 N (150 lbf) |
| Max. Tensile Strength During Operation | 200 N (45 lbf) |
| Crush Resistance | Max Crush Resistance During Installation: 1000N/100mm, Max Crush Resistance During Operation: 300N/100mm |
| Temperature Range | |
| Operating Temperature Range | -20 °C to +60 °C |
| Storage Temperature Range | -20 °C to +60 °C |
| Standards and Compliance | |
| Environmental Suitability | Indoor, Outdoor |
| Flammability / Reaction to Fire | UL 1666 |
| ISO/IEC Compliance | IEC 60793, IEC 60794-1 |
| European Directive Compliance | EU Directive 2011/65/EU (RoHS 2) |
Giá: Vui lòng gọi
