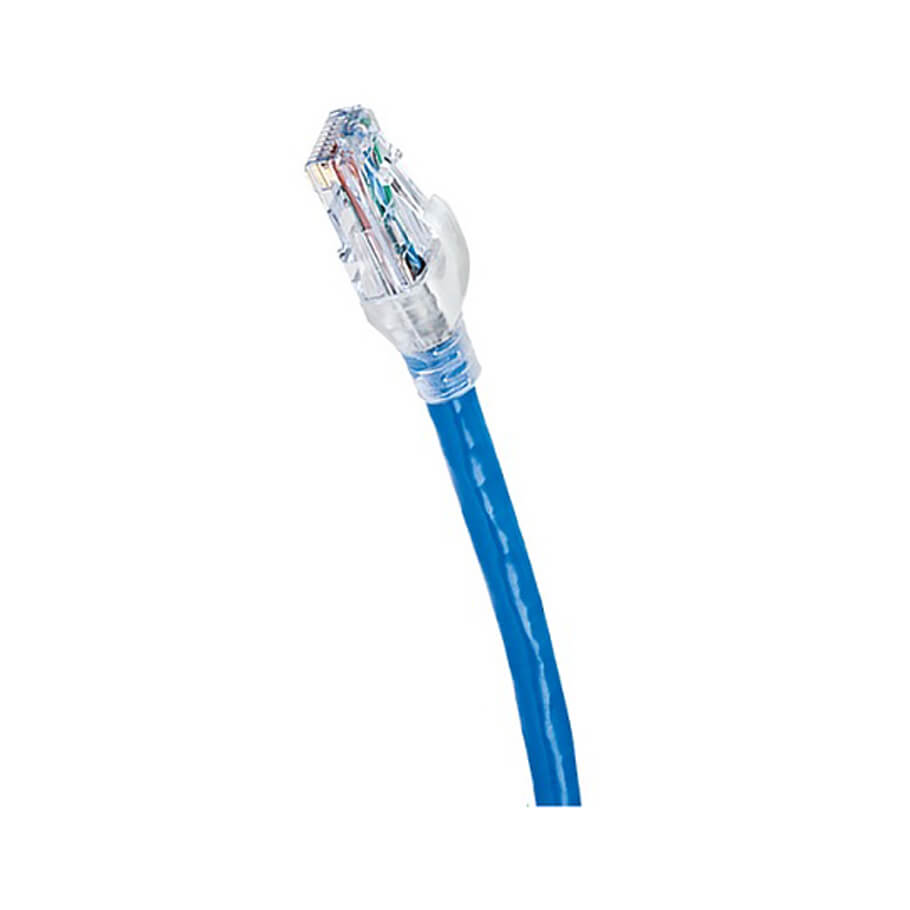

10GX Patch Cord UTP PVC BELDEN CA99106003M (3 mét)

10GX Patch Cord UTP PVC BELDEN CA99106003M (3 mét)

- Part number: CA99106003M

- Suitable Applications: Horizontal and building cabling. Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.

Physical Characteristics (Overall)

- Conductor:

   + AWG: 26

   + Stranding: Stranded

   + Material: BC - Bare Copper

   + Nominal Diameter: 6.1 mm

   + No. of Pairs: 4

- Material: PE - Polyethylene (Foam)

- Inner Shield

   + Element: Floating Shielded Pair

   + Type: Tape

   + Material: Bi-Laminate (Alum+Poly)

- Outer Shield:

   + Type: Braid

   + Material Coverage [%]: Tinned Copper (TC)

   + Coverage [%]: 30%

- Outer Jacket

   + Material: PVC - Polyvinyl Chloride

   + Nominal Diameter: 6.1 mm

- Wiring Scheme: T568A/B-T568A/B

Connectors

- Materials

   + Plug: Polycarbonate: RJ45

   + Boot: PVC: Snagless

   + Front: Connection Phosphor Bronze with 50u inch Gold over Nickel Plating: Blades

Electrical Characteristics

- Dielectric Strength: 2.5 kV DC

- Current Rating: 1A

- Insulation Resistance: 5000 MOhm*km

- Max Contact Resistance: 20 mOhm

Temperature Range

- Installation Temperature Range: 0°C To +50°C

- Operating Temperature Range: -20°C to +60°C

Mechanical Characteristics

- Min Bend Radius (Overall Cable): 25mm

- Plug/Jack Compatibility: RJ45

Standards

- ISO/IEC Compliance: ISO/IEC 11801-1

- Data Category: Category 6A

- TIA/EIA Compliance: ISO/IEC 11801-1:2017; EN 50173-1 Amd 1 Caregory 6A; ANSI/TIA/EIA 568 C.2 Category 6A

Applicable Environmental and Other Programs

- Environmental Space: Indoor Rated (Not Riser or Plenum)

Suitability

- Suitability - Indoor: Yes
