0916 287 068 Cáp mạng BELDEN CAT3 25-pair YJ53441
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp mạng BELDEN >> Cáp mạng BELDEN CAT3 25-pair YJ53441
Mã số:11575717

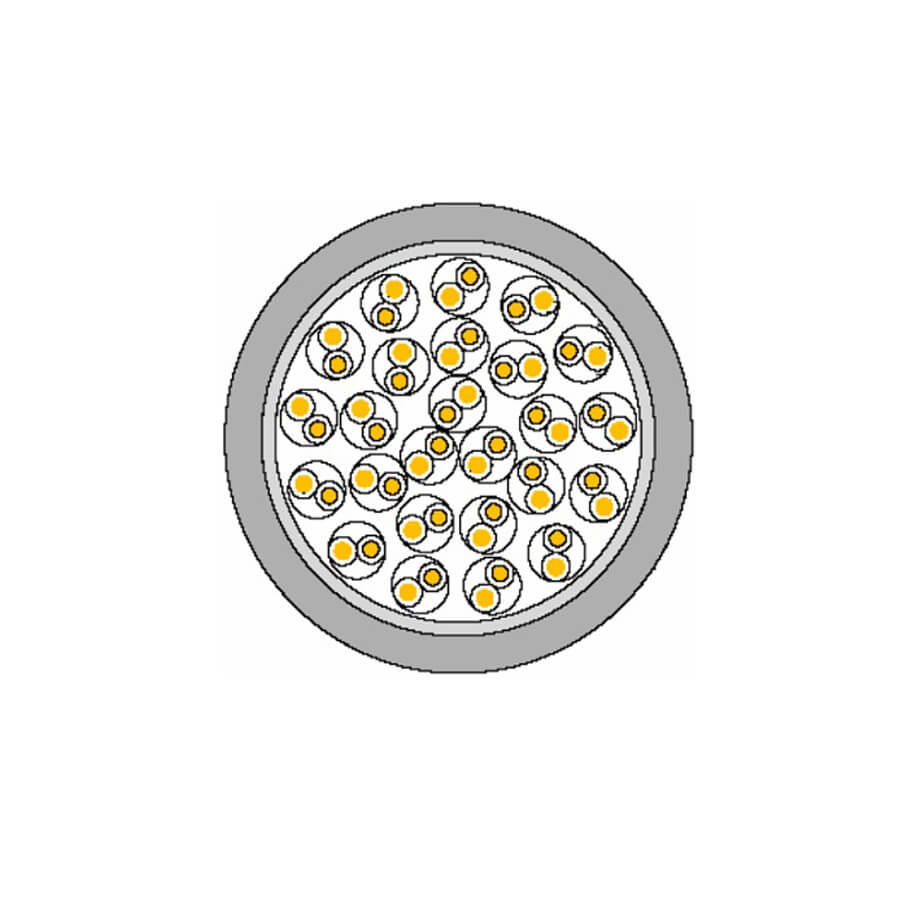

Cáp mạng BELDEN CAT3 25-pair YJ53441
- Part number: YJ53441
- Belden Backbone Indoor Cable Cat3, Nonbonded-Pair, 25-pair, 24 AWG Solid, PVC Jacket.
Technical Specifications
| PHYSICAL CHARACTERISTICS | |
| CONDUCTOR | |
| Number of Pairs | 25 |
| Total Number of Conductors | 50 |
| AWG | 24 |
| Stranding | Solid |
| Conductor Material | BC - Bare Copper |
| OVERALL CABLING | |
| Overall Cabling Core Configuration | 25 Pairs × 1 |
| Overall Cabling Core Wrap | Polyester Tape |
| OUTER SHIELD | |
| Outer Shield Material | Unshielded |
| OUTER JACKET | |
| Outer Jacket Material | PVC - Polyvinyl Chloride |
| Outer Jacket Nom. Wall Thickness | 0.6 mm |
| Outer Jacket Ripcord | Yes |
| OVERALL NOMINAL DIAMETER | |
| Overall Nominal Diameter | 11.0 ± 1.5 mm |
| APPLICABLE SPECIFICATION AGENCY COMPLIANCE | |
| APPLICABLE STANDARDS | |
| IEC Specification | IEC 11801 Category 3 |
| TIA/EIA Specification | ANSI/EIA/TIA-568-B.2 Category 3 |
| EU CE Mark (Y/N) | N |
| EU RoHS Compliant (Y/N) | Y |
| ELECTRICAL CHARACTERISTICS | |
| Nom. Mutual Capacitance @ 1 KHz | 6.6 nF/100m |
| Maximum Capacitance Unbalance | 330 pF/100m |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay @ 16 MHz | 545 ns/100m |
| Maximum Delay Skew | 45 ns/100m |
| Maximum Conductor DC Resistance @ 20 Deg.C | 9.38 Ohms/100m |
| Maximum DCR Unbalance @ 20 Deg.C | 5% |
| Max. Operating Voltage - UL | 300 V RMS |
Giá: Vui lòng gọi
