0916 287 068 8-port GE + 8-Port 1G SFP Industrial DIN-Rail Switch WINTOP YT-RS6316-8GF8GT

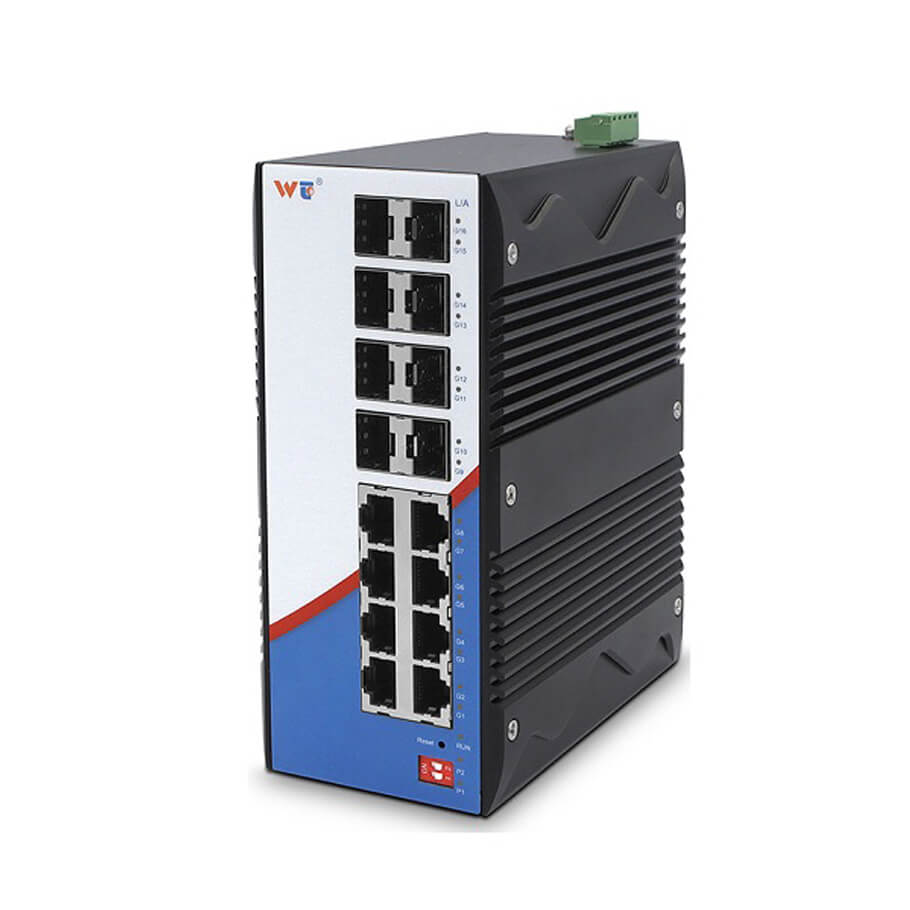

8-port GE + 8-Port 1G SFP Industrial DIN-Rail Switch WINTOP YT-RS6316-8GF8GT
- Provide: 8 Gigabit optical ports and 8 Gigabit electrical ports.
- Fanless: design, working temperature: -40 ~ 85°C.
- IP40 protection grade, impact-resistant aluminum shell.
- Support dual power supply redundant backup input, wide voltage 9-48VDC.
- EMC industrial level 4 electromagnetic compatibility standard.
- Provide second-speed DIP switch function (vlan port isolation, ring network).
- Support STP/RSTP/MSTP/ERPS ring network protection.
- Support SNM P V1/V2c/V3 network management platform.
- Supports WT search tool and WTNMS network management software.
Features
- Supports 4K range 802.1Q VLAN.
- IGMP Snooping to filter multicast traffic.
- Supports Chinese and English web page management configuration.
- Two power inputs, wide voltage 9-48VDC.
- The optical port can force Gigabit speed to facilitate the docking of optical fiber equipment.
- Provides two-speed DIP switch function (vlan port isolation, ring network).
- QoS (IEEE 802.1p and DSCP) improves data delivery certainty.
- Port mirroring function assists in online troubleshooting and can analyze and monitor data.
- Port aggregation increases bandwidth and enhances the reliability of network connections.
- Spanning Tree Protocol STP/RSTP/MSTP ring redundancy.
- Supports one-click factory reset.
- Port aggregation increases bandwidth and enhances the reliability of network connections.
- Spanning Tree Protocol STP/RSTP ring redundancy.
- Port loop detection to reduce the impact of access loops on the entire network.
Technical parameters
| Support standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX and 1000BaseT IEEE 802.3x flow control IEEE 802.1d-2004 STP protocol IEEE 802.1w RSTP protocol IEEE 802.1p Q os IEEE 802.1q VLAN |
| Protocol | IGMP Snooping, SNMPv1/v2c/v3, TFTP, NTP, SNTP, RMON, HTTP, HTTPS, SSH, Telnet, Syslog, LLDP, LACP, WT-Ring, STP, RSTP, MSTP, ERPS, EEE |
| Exchange properties | Qos queue: 8 Packet forwarding rate: 18Mpps VLAN range: 1-4094 Backplane bandwidth: 32 Gbps Message buffer size: 4.1Mbit MAC address table: 8K |
| Interface | Optical port: 1000Mbps Electrical port: 10/100/1000Mbps adaptive, Full/Half duplex mode, supports MDI/MDI-X LED indicators: P 1, P2, RUN, L/A |
| Power requirements | Input voltage: DC 9~ 48 V (redundant) Full load power consumption: 14.5W |
| Physical properties | Shell: aluminum shell, IP40 protection Dimensions: 1 60 x 128 x 70 mm Weight: 850g Installation method: Guide rail type |
| Environmental restrictions | Operating temperature: -40 ~ 85°C (-40 ~ 185°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F ) Ambient relative humidity: 5 ~ 95% ( non-condensing ) |
| Standards and Certifications | Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4 ( 6kv port lightning protection, 4kv power supply lightning protection) Vibration resistance: IEC 60068-2-6 Impact resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Certification: CE, FCC, Rohs, Ministry of Industry and Information Technology network access license, Ministry of Public Security inspection report |
| MTBF (mean time between failures) | |
| Time | 500000 hours |
- Bảo hành: 36 tháng.
