16-Port GE+4-Port 10GBase-X SFP++8-Port GC Layer 3 Managed Switch WINTOP YT-CM5728-4WF8GC16GT

Trang Chủ >> Thiết bị mạng >> Switch WINTOP >> 16-Port GE+4-Port 10GBase-X SFP++8-Port GC Layer 3 Managed Switch WINTOP YT-CM5728-4WF8GC16GT

Mã số:04574055

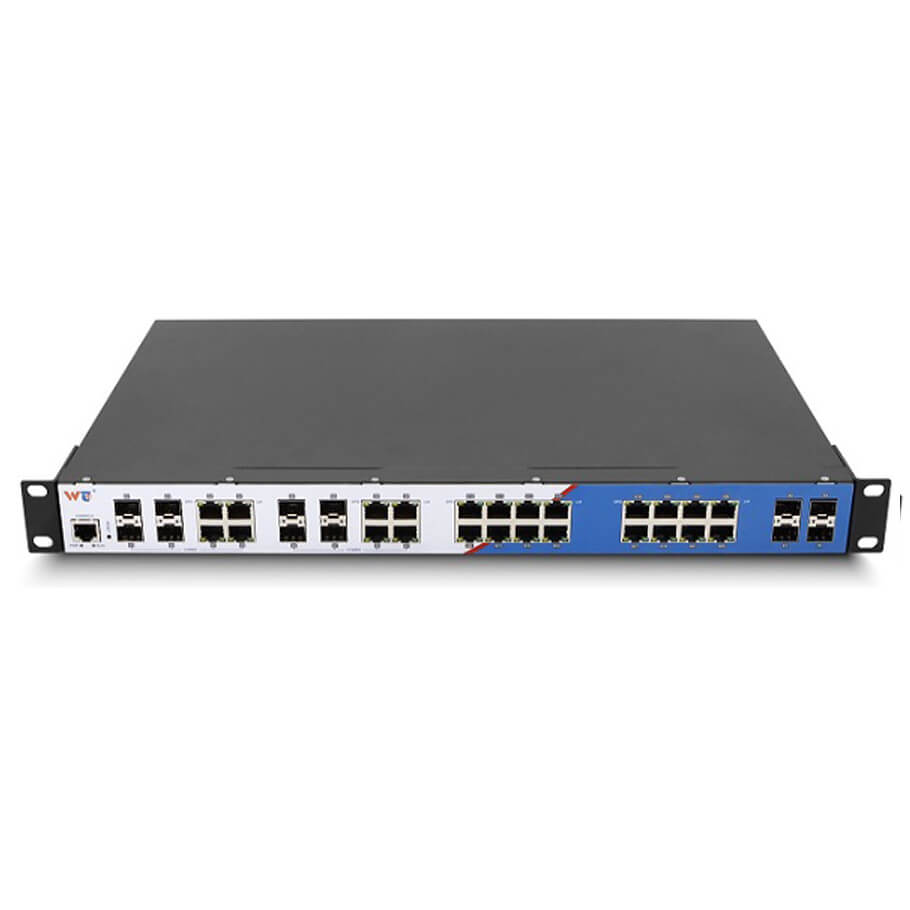

16-Port GE + 4-Port 10GBase-X SFP+ + 8-Port GC Layer 3 Managed Switch WINTOP YT-CM5728-4WF8GC16GT

- Support 4 × 10GBase-X SFP+ slot + 8 × 1000Base Combo port + 16 × 1000Base-T RJ45 port single power, AC220V with layer 3 Management no fans.

- Support static routing RIP, dynamic routing, OSPF.

- Operating temperature: -40~45°C.

- Dimensions: 440 x 280 x 44 mm.

Technical Parameters

Support standards	IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-T) IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX/LX) IEEE 802.3ae (10GBase-X) IEEE 802.3ad (port aggregation), IEEE802.3x (flow control) IEEE 802.1p (priority), IEEE 802.1Q (VLAN) IEEE 802.1D (STP), IEEE 802.1w (RSTP) IEEE 802.1s(MSTP), IEEE 802.1p (QoS)
Protocol	IGMP Snooping, GMRP, GVRP, DHCP, SNMPv1/v2c/v3, TFTP, NTP, SNTP, Ping, Traceroute, RMON, HTTPS, SSH, Telnet, Syslog, ERPS, MLD, LLDP, LACP, ACL, VRRP, RIP, OSPF, BGP, IS-IS, PIM MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Switching features	Qos queue: 8 Packet forwarding rate: 252Mpps VLAN-ID: 1-4094 Backplane bandwidth: 598Gbps MAC address table: 8K Message cache size: 42Mbit
Interface	Debug port: RS-232 (Interface type: RJ45 slot) 10G optical port: 10G/1000Mbps (Interface type: SFP slot) Gigabit optical port: 1000Mbps (Interface type: SFP slot) Gigabit electrical port: 10/100/1000 Mbps adaptive, Full/Half duplex mode, supports MDI /MDI-X LED indicator: PWR, Link/ACT, SPD, RUN
Power requirements	Input voltage: AC 220 V
Physical properties	Shell: Iron shell IP 30 protection Size: 440 x 280 x 44 mm Weight: 4380g Installation method: rack
Environmental restrictions	Operating temperature: -40 ~ 45°C (-40 ~ 113°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Ambient relative humidity: 5 ~ 95% (non-condensing)
Standards and Certifications	Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4 , IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4 (4kv port lightning protection, 4kv power supply lightning protection) Vibration resistance: IEC 60068-2-6 Impact resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Certification: CE, FCC, Rohs, Ministry of Industry and Information Technology network access license, Ministry of Public Security inspection report
MTBF (mean time between failures)	Time: 500000 hours

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
