0916 287 068 16-port GE PoE + 2-port GE + 2-Port 1G SFP Rack-Mounted Switch WINTOP YT-CM2320-2GF18GT-16POE
Trang Chủ >>
Thiết bị mạng >> Switch WINTOP >> 16-port GE PoE + 2-port GE + 2-Port 1G SFP Rack-Mounted Switch WINTOP YT-CM2320-2GF18GT-16POE
Mã số:04579535

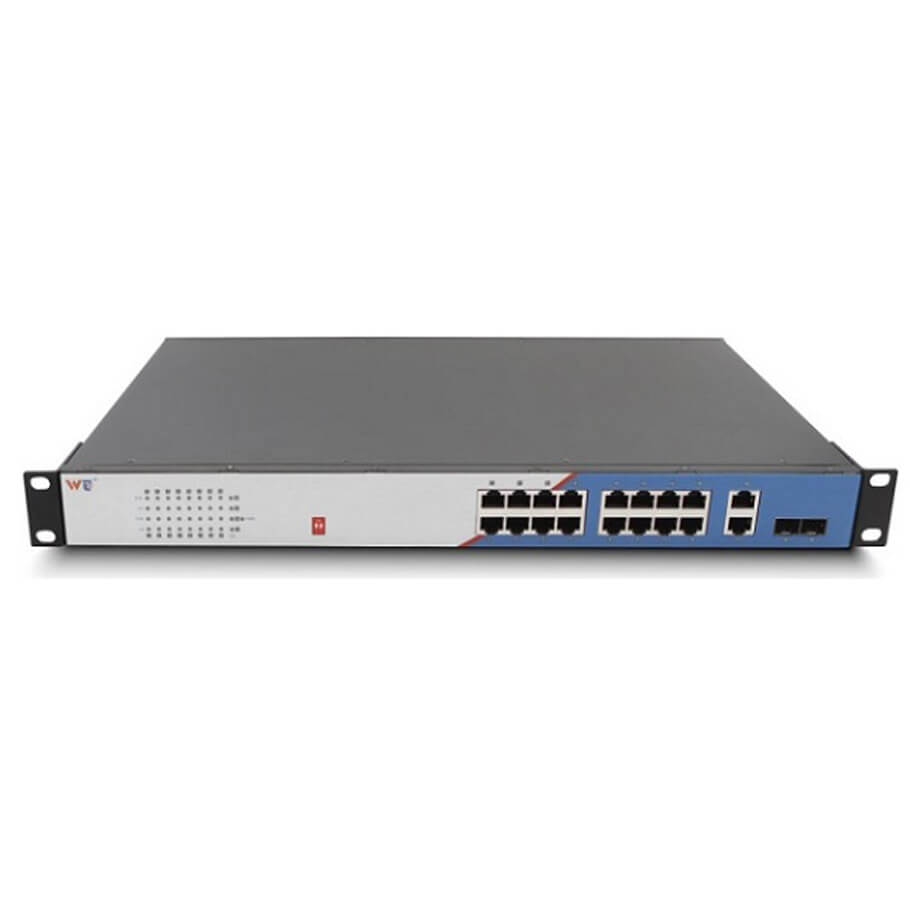

16-port GE PoE + 2-port GE + 2-Port 1G SFP Rack-Mounted Switch WINTOP YT-CM2320-2GF18GT-16POE
- Providing 2 Gigabit fiber ports and 2 Gigabit copper ports, 16 Gigabit POE copper ports.
- The copper ports support 10/100/1000 Mbps self-adaptation; all ports support MDI/MDIX.
- Applicable voltage range: AC220V.
- EMC industrial rating level 4 electromagnetic compatibility standard.
- VIP channels 1-8 ports (PoE port QOS priority).
- Applicable for operation at the ambient temperature of -20°C to 75°C.
- Dial switch with one button for VLAN separation, one-button forced service at 10M.
Technical parameters
| Applicable standards | EEE 802.3 10BaseT IEEE 802.3u 100BaseT IEEE 802.3z 1000BaseFX, IEEE 802.3ab 1000BaseT IEEE 802.3af/802.3at POE |
| Switching feature | Back plane bandwidth: 40 Gbps List of MAC addresses: 8K Message buffer size: 4.1 Mbit |
| Port | Gigabit fiber port: 1,000 Mbps Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported, transmission distance 0-100 m, POE power supply supported by 16 downlink ports. LED indicator: PWR, Link/ACT, POE |
| Power source requirement | Input voltage: AC220V Power consumption: 260W |
| Physical properties | Enclosure: Metal, IP30-rated protection Size: 440*300*44 mm Weight: 4380 g Mounting method: Rack-mounted |
| Environmental restrictions | Working temperature: -20 ~ 75°C (-4 ~ 167°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Relative ambient humidity: 5 ~ 95% (non-condensing) |
| Standards and certification | EMI: FCC Part 15/CISPR22 (EN55022): Class A EMS: IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC61000-4-4 (EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC61000-4-6 (CS) level 3 Anti-vibration performance: IEC 60068-2-6 Shock resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 |
| MTBF (mean time between failures) | Time: 500,000 h |
- Bảo hành: 12 tháng.
Giá: 6.513.000 VND
(Đã bao gồm VAT)
