0916 287 068 16-Port GE + 4-Port 10GBase-X SFP+ + 8-Port Combo Layer 3 Managed Switch WINTOP YT-CM3728-4WF8GC16GT
Trang Chủ >>
Thiết bị mạng >> Switch WINTOP >> 16-Port GE + 4-Port 10GBase-X SFP+ + 8-Port Combo Layer 3 Managed Switch WINTOP YT-CM3728-4WF8GC16GT
Mã số:04572569

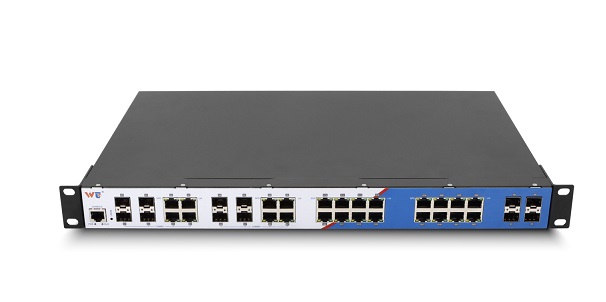

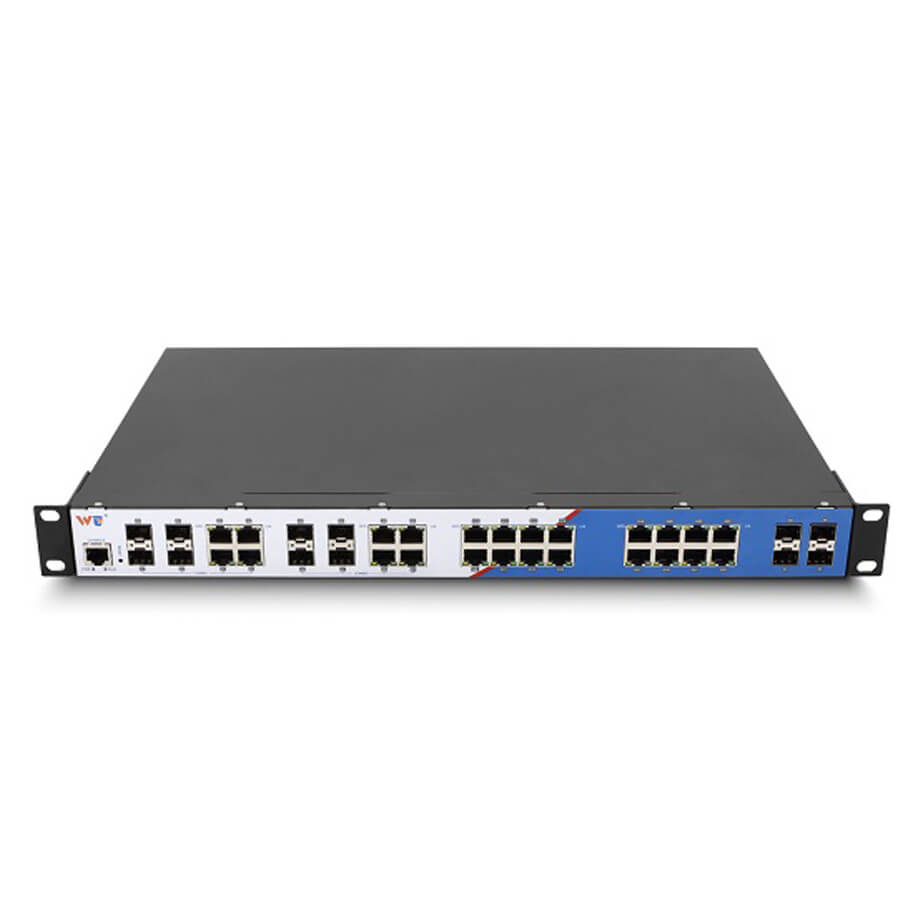

16-Port GE + 4-Port 10GBase-X SFP+ + 8-Port Gigabit Combo Layer 3 Managed Switch WINTOP YT-CM3728-4WF8GC16GT
- Support 4 × 10GBase-X SFP+ slot + 8 × 1000Base Combo port + 16 × 1000Base-T RJ45 port single power, AC220V with layer 3 Management no fans.
- support static routing RIP.
- Operating temperature: -40~45°C.
- Dimensions: 440 x 280 x 44 mm.
Technical Parameters
| Support standards | IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-T) IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX/LX) IEEE 802.3ae (10GBase-X) IEEE 802.3ad (port aggregation), IEEE802.3x (flow control) IEEE 802.1p (priority), IEEE 802.1Q (VLAN) IEEE 802.1D (STP), IEEE 802.1w (RSTP) IEEE 802.1s(MSTP), IEEE 802.1p (QoS) |
| Protocol | IGMP Snooping, GMRP, GVRP, DHCP, SNMPv1/v2c/v3, TFTP, NTP, SNTP, Ping, Traceroute, RMON, HTTPS, SSH, Telnet, Syslog, ERPS, MLD, LLDP, LACP, ACL MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9 switching features |
| Switching features | Qos queue: 8 packet forwarding rate: 252Mpps VLAN-ID: 1-4094 Backplane bandwidth: 598Gbps MAC address table: 8K Message cache size: 42 Mbit |
| Interface | Debug port: RS-232 (Interface type: RJ45 slot) 10G optical port: 10G/1000Mbps (Interface type: SFP slot) Gigabit optical port: 1000Mbps (Interface type: SFP slot) Gigabit electrical port: 10/100/1000 Mbps adaptive, Full/Half duplex mode, supports MDI /MDI-X LED indicator: PWR, Link/ACT, SPD, RUN |
| Power requirements | Input voltage: AC 220V |
| Physical properties | Shell: Iron shell IP 30 protection Size: 440mm x 280mm x 44mm Weight: 4380g Installation method: rack |
| Environmental restrictions | Operating temperature: - 40 ~ 45°C (-4 0 ~ 113°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F ) Ambient relative humidity: 5 ~ 95% ( non-condensing ) |
| Standards and Certifications | Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4 (4kv port lightning protection, 4kv power supply lightning protection) Vibration resistance: IEC 60068-2-6 Impact resistance: IEC 60068-2-27 Free fall: IEC 60068-2-32 Certification: CE, FCC, Rohs, Ministry of Industry and Information Technology network access license, Ministry of Public Security inspection report |
| MTBF (mean time between failures) | Time: 500000 hours |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
