0916 287 068 Wireless Access Point CISCO CW9166I-ROW
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng Cisco >> Wireless Access Point CISCO CW9166I-ROW
Mã số:04212872

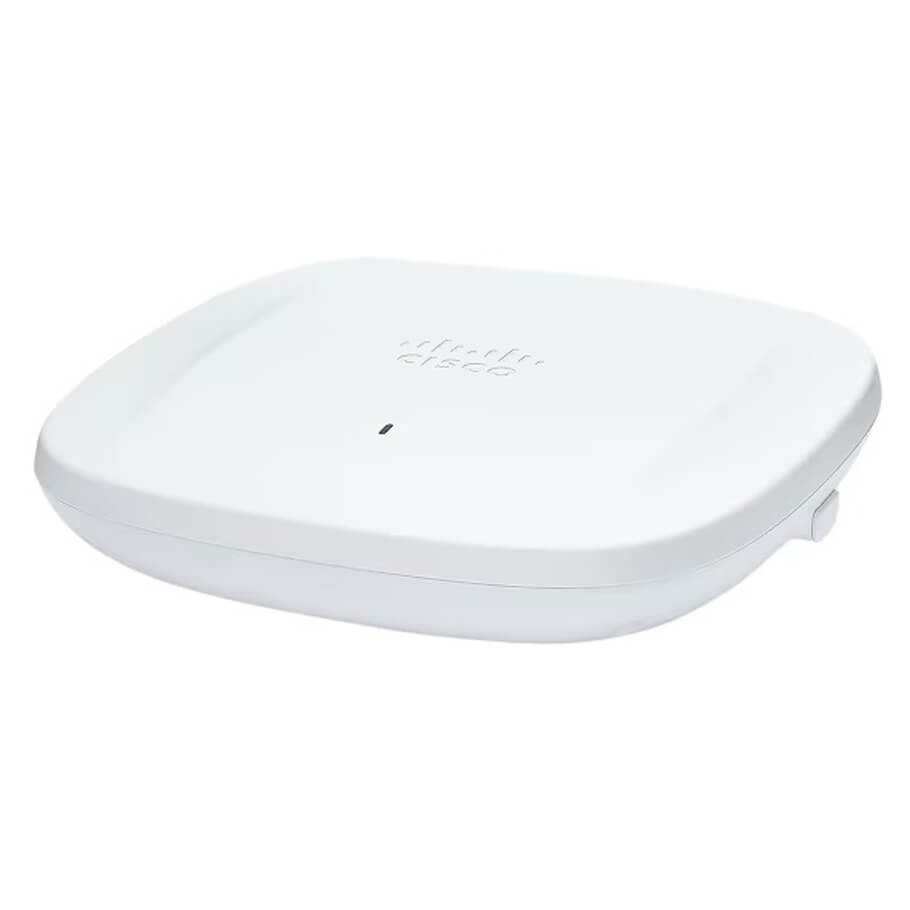

Wireless Access Point CISCO CW9166I-ROW
- Software: Cisco IOS ® XE Software Release 17.9.1 or later.
- Supported wireless LAN controllers:
+ Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual);
+ Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode.
- Interfaces: 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0 at 4.5W.
- Dimensions (W x L x H): 241.3 x 241.3 x 56.9 mm.
- Weight: 1.60kg.
Specifications
| Software | Cisco IOS ® XE Software Release 17.9.1 or later |
| Supported wireless LAN controllers | - Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) - Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode |
| 802.11n version 2.0 (and related) capabilities | - 4x4 MIMO with four spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g - 20- and 40-MHz channels - PHY data rates up to 1.5 Gbps (40 MHz with 5GHz and 20 MHz with 2.4GHz) - Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
| 802.11ac | - 4x4 downlink MU-MIMO with four spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 3.4 Gbps (Dual 4x4 80+80 MHz on 5GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - Wi-Fi Protected Access (WPA) 3 support |
| 802.11ax | - 1024 QAM - 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4GHz, 5GHz and 6GHz) - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80-, and 160-MHz channels (6GHz) - 20-, 40-, 80-, and 80+80-MHz channels (5GHz) - 20-MHz channels (2.4GHz) - PHY data rates up to 7.78 Gbps (4x4 160 MHz on 6GHz, 4x4 80 MHz on 5GHz, and 4x4 20 MHz on 2.4GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - WPA3 support |
| Antennas | - 2.4GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth - 5GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth - 5GHz (XOR): Peak gain 5 dBi, internal antenna, omnidirectional in azimuth - 6GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | - 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45) - Management console port (RJ-45) - USB 2.0 at 4.5W |
| Indicators | - Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | - Access point (without mounting brackets): 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm) |
| Weight | 1.60 kg |
| Input power requirements | - 802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+) - Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 - 802.3af PoE (only for configuration staging, all radios off) - DC power input (54V/MA-PWR-50WAC) |
| Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) - Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m) - Operating temperature: 32° to 122°F (0° to 50°C) - Operating humidity: 10% to 90% (noncondensing) - Operating altitude test: 40°C (104°F) at 9843 ft (3000 m) |
| System memory | - 2048 MB DRAM - 1024 MB flash |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
