0916 287 068 150AX Wi-Fi 6 Access Point CISCO CBW150AX-S
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng Cisco >> 150AX Wi-Fi 6 Access Point CISCO CBW150AX-S
Mã số:04214438

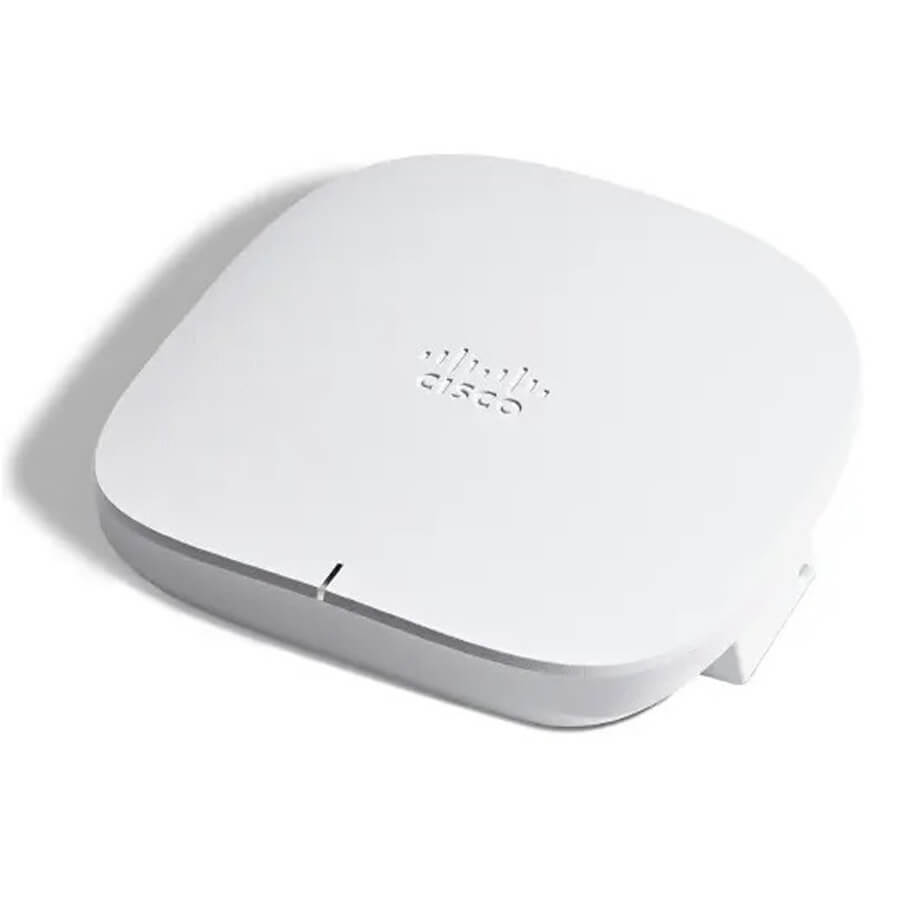

150AX Wi-Fi 6 Access Point CISCO CBW150AX-S
- Wi-Fi 6 (802.11ax), 2.4GHz/5GHz (Dual-Band).
- Up to 1.488Gb/s throughput.
- Interfaces: 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE).
- System: 1GB DRAM, 512MB flash; 1GHz quad core processor.
Thông số kỹ thuật
| Authentication and security | - Wi-Fi Protected Access - with WPA2 or WPA3, including WPA2-Entperprise authentication - 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) - Segmentation via VLANs (up to 16) - 802.11r and 802.11i - Guest network can also authenticate against a Social Login account: Google and Facebook |
| Maximum clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system |
| Maximum # of Access Points | 50 Recommended up to 25 |
| Max # of Mesh Extenders | Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops |
| 802.11ax | - 2x2 downlink MU-MIMO with two spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80- channels - PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - WPA3 support |
| 802.11ac | - 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz - 20-, 40-, and 80-MHz channels - Dynamic Frequency Selection (DFS) |
| Ethernet ports | - Authentication with 802.1X or MAC filtered - Dynamic VLAN or per port - Traffic locally switched or tunneled back to Master AP |
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) 802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11) |
| Integrated antenna | 2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting bracket): 5.92 x 5.92 x 1.57 in. (150.4 x 150.4 x 39.9 mm) |
| Weight | Access point without mounting bracket or any other accessories: 11.6 oz (330 g) |
| Environmental | Operating - Temperature: 32° to 104°F (0° to 40°C) - Humidity: 0% to 95% (noncondensing) - Maximum altitude: 9843 ft (3000 m) at 40°C Nonoperating (storage and transportation) - Temperature: –22° to 158°F (-30° to 70°C) - Humidity: 0% to 95% (noncondensing) - Maximum altitude: 15,000 ft (4570 m) at 25°C |
| System | 1GB DRAM, 512MB flash 1GHz quad core processor |
| Power draw | 9.2W (maximum, on PoE) |
- Bảo hành: 12 tháng.
Giá: 3.912.000 VND
(Đã bao gồm VAT)
