Wifi Access Point Cambium cnPilot e410

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng Cambium >> Wifi Access Point Cambium cnPilot e410
Mã số:04815821

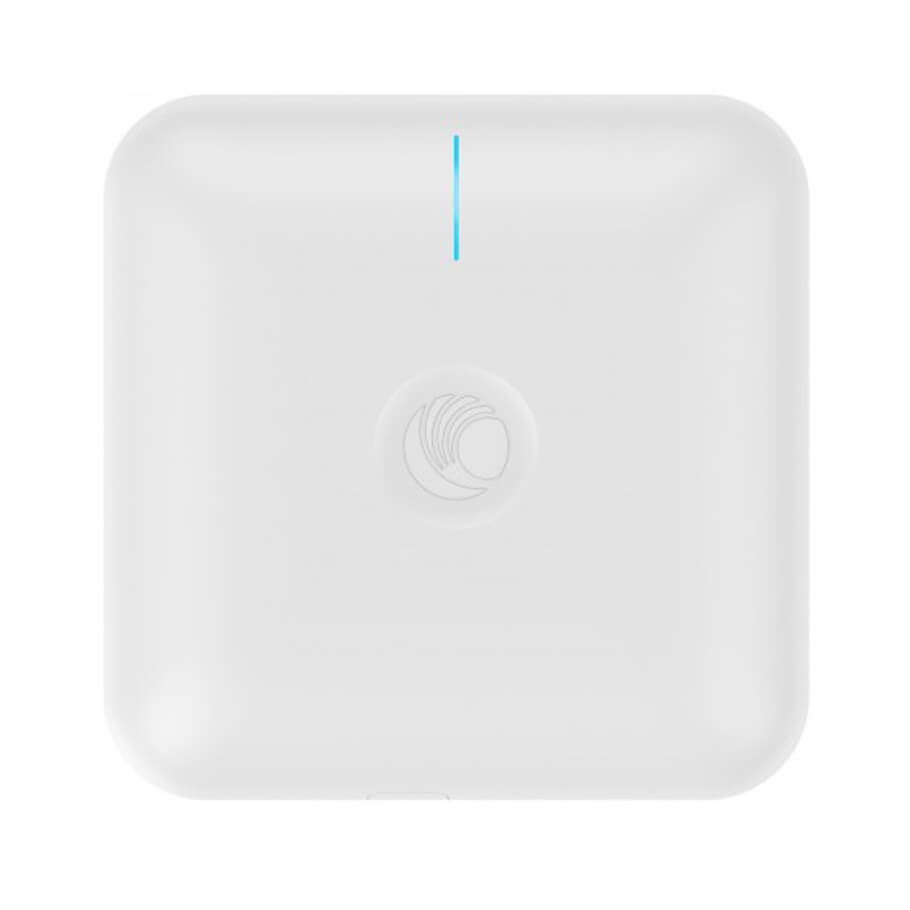

Wifi Access Point Cambium cnPilot e410

Wifi Access Point Cambium cnPilot e410

- Cambium cnPilot e410 là thiết bị thu phát sóng WiFi chuyên dụng trong nhà, hoạt động trên 2 băng tần 2.4GHz và 5GHz, chuẩn 802.11ac Wave2.

- Thiết bị hỗ trợ tốc độ lên đến 867Mbps (5GHz), kiểu dáng công nghiệp bo tròn vuông vức thiết kế tinh tế, lắp đặt dễ dàng, linh động phù hợp cho khách sạn, văn phòng, nhà hàng, quán café, khu nghỉ dưỡng, ký túc xá hoặc những nơi cần trang bị WiFi.

Specifications

Model e410
Radios 1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2
1 x 2.4 GHz (802.11 b/g/n), 2X2
SU-MIMO / MU-MIMO: 2 streams
Wi-Fi 802.11 a/b/g/n/ac
SSID Security WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate 2.4 GHz radio: 400 Mbps
5 GHz radio: 867 Mbps
Ethernet One IEEE Gigabit Ethernet auto sensing
Antenna Internal omni-directional
2.4 GHz: 4 dBi
5 GHz: 4.29 dBi
Max EIRP 2.4 GHz: 25 dBm
5 GHz: 25 dBm
WLAN 256 clients, 16 SSIDs (WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF)
Power 802.3af or 802.3at powered device
Dimensions 170 x 170 x 41 mm
Weight 384g
LEDs Single Tri-color LED (amber, blue, green)
Storage Temperature -40ºC to 70ºC
Ambient Operation Temperature 0ºC to 50ºC
Management
Interfaces HTTP / HTTPS web interface, SSL, Telnet
SNMP V1, V2, V3
Syslog, SNMP traps, NTP
Deployment cnMaestro Cloud, cnMaestro on-premises, Standalone AP
Services Monetized, cloud-managed guest portal with design tools
APIs RESTful management and statistics API
Presence location API
Splunk WebSocket integration, WebSocket
DNS, NAT, TCP connection log
Captive Portal Hosted on cnMaestro Controller
On-AP hosted guest portal
Redirect to HTTP/RADIUS external portal/
authentication
Active Directory integration, Google, Facebook,
Office 365 integration
Data rate, time duration, data throughput limit
Server DNS logging
Hotspot 2.0 Hotspot 2.0/Passpoint 2.0
Accounting RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM
WLAN and Network
Authentication Encryption 802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/PEAPv1
MAC authentication to local database (on AP, on Controller) or external RADIUS.
MAC auth fallback to guest portal
Scheduled WLAN On/off by day, week, time of day
QoS 802.11e/WMM QoS. DSCP/ToS mapping
VLAN 802.11Q, max 4096
Fast Roaming 802.11r, OKC, Enhanced roaming
Mesh Multi-hop (3), either band
Channel Selection Auto RF: manual or automatic
Auto TX Power Auto RF: automatically adjust max transmit Power
Network NAT, NAT logging firewall, DOS protection,
L2/L3/DNS ACL, DHCP server, DHCP Relay
option 82
LLDP, IGMP v1, v2, v3
VLAN Pooling, RADIUS attribute VID
VLAN per SSID, per user
Integrated WIDS (wireless intrusion detection)
Band Steer Load Balance Yes
Tunnel L2TP, L2oGRE, PPPoE
Standards
Wi-Fi Protocols VHT MCS rates, 256-QAM, HT20/40/80 MHz
Transmit beamsteering, Airtime Fairness, Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC
MIMO Power Save, MRC

- Bảo hành: 5 năm.

Giá: Vui lòng gọi

Số lượng :

Thêm vào giỏ Mua ngay
