0916 287 068 Thiết bị lưu trữ SYNOLOGY DS923+

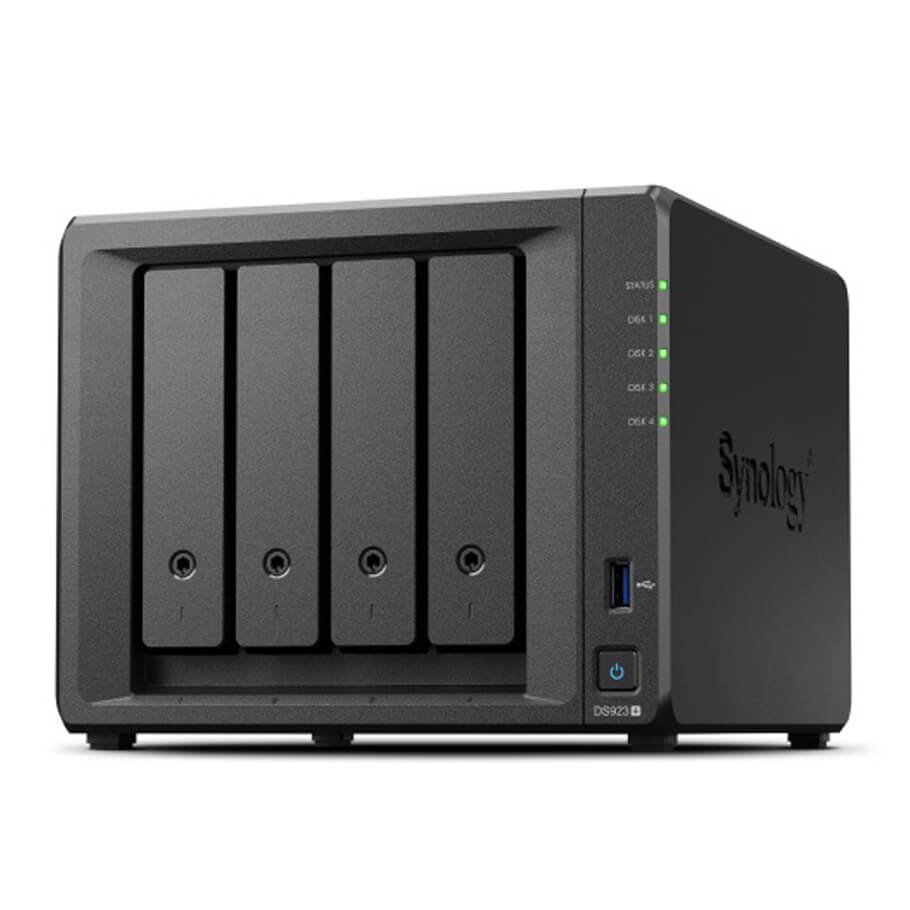

Thiết bị lưu trữ SYNOLOGY DS923+
- The Synology DS923+ is a capable 4-bay NAS solution that can be adjusted and expanded as your needs change, with optional support for up to nine drives, faster networking, and NVMe SSDs for caching or additional storage pools. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.
- Dependable Performance: Up to 625/559 MB/s sequential read/write throughput makes file operations quick and efficient.
- Versatile Network Storage: Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions.
- Fast and Stable Connectivity: Two 1GbE ports for simple integration into existing: environments with optional 10GbE connectivity to tackle more specialized, bandwidth-heavy applications.
- Easy Capacity Expansion: Add 5 extra drive bays with one DX517 expansion unit for a maximum of 9 storage drives.
Đặc tính kỹ thuật
| Hardware | |
| CPU | AMD Ryzen™ R1600 dual-core (4-thread), max. boost clock up to 3.1 GHz |
| Hardware encryption engine | AES-NI |
| Memory | 4 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Compatible drive types | • 4 x 3.5 inch or 2.5 inch SATA HDD/SSD (drives not included) • 2 x M.2 2280 NVMe SSD (drives not included) • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list |
| Hot swappable drives | Yes |
| External ports | • 2 x USB 3.2 Gen 1 ports • 1 x Expansion port (eSATA) |
| Form factor | Desktop |
| Size (HxWxD) | 166 x 199 x 223 mm |
| Weight | 2.24kg |
| LAN ports | 2 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| Network expansion | Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module |
| Scheduled power on/of | Yes |
| System fans | 2 x (92 x 92 x 25 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Operating environment | • Temperature: 0°C to 40°C (32°F to 104°F) • Relative humidity: 8% to 80% RH |
| Storage environment | • Temperature: -20°C to 60°C (-5°F to 140°F) • Relative humidity: 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM Specifications | |
| Networking protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| File systems | • Internal: Btrfs, ext4 • External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID types | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Storage management | • Max. single volume size: 108 TB • Max. number of system snapshots: 65,5361 • Max. number of internal volumes: 64 |
| SSD cache | • Read/write cache support • M.2 NVMe and 2.5' SATA SSD support |
| File sharing capabilities | • Max. number of local user accounts: 2,048 • Max. number of local groups: 256 • Max. number of shared folders: 512 • Max. number of concurrent SMB/NFS/AFP/FTP connections: 1,000 |
| Privileges | Windows® Access Control List (ACL) and application privileges |
| Directory services | Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack, and Kubernetes |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite) |
| Supported browsers | Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets |
- Bảo hành: 24 tháng.
