0916 287 068 Thiết bị lưu trữ SYNOLOGY DS3622xs+

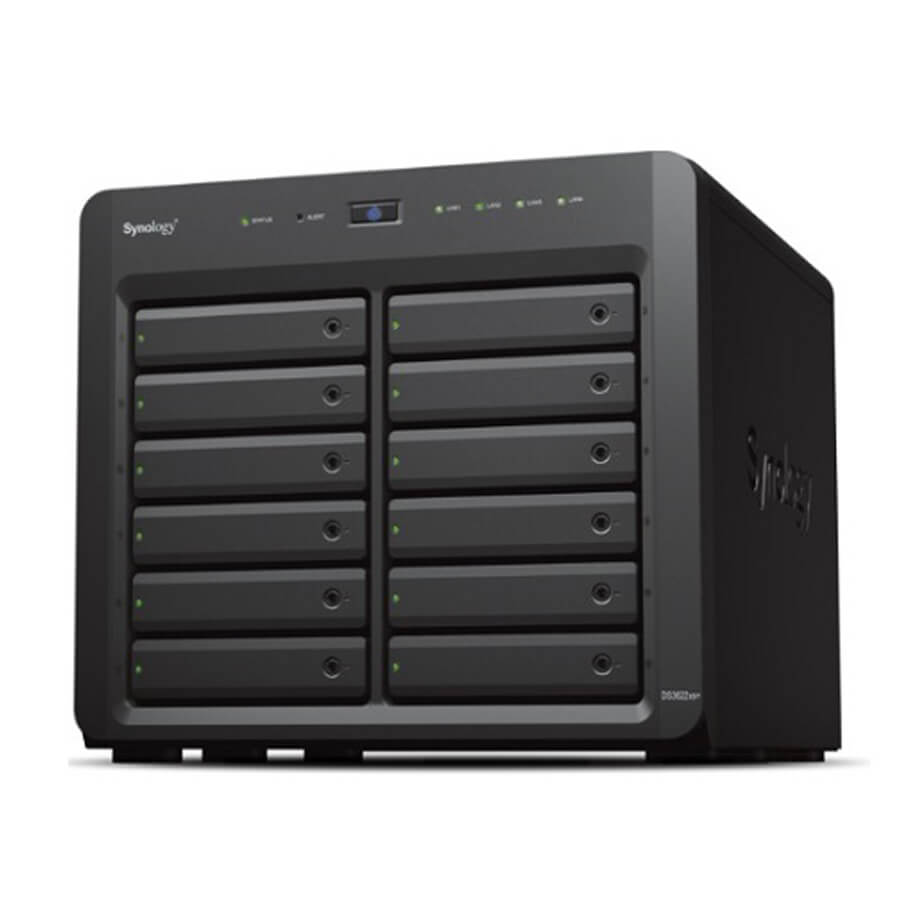

Thiết bị lưu trữ SYNOLOGY DS3622xs+
- Synology DiskStation DS3622xs+ is a 12-bay tower server NAS for businesses that need large and powerful storage. The DS3622xs+ matches high capacity with strong processing capabilities, making it ideal for business surveillance, virtual machine storage, and video editing. Its storage capacity is easily tripled with two 12-bay DX1222 expansion units. Connectivity, storage, and memory are easily expandable to handle even more demanding workloads. Coupled with a large offering of business applications available for Synology DiskStation Manager (DSM), the DS3622xs+ is much more than a storage device.
- High-Performance Storage: Over 260000 4K random read IOPS and 4700/2400MB/s sequential read/write performance.
- More Than a Storage Server: Consolidate and host backup or video management systems, virtual machines, and more thanks to a capable 6-core Intel® Xeon® processor.
- Supports Heavy Applications: Leverage up to 48GB memory, 10/25GbE networking, 2 Fibre Channel support,3 or NVMe SSD Cache4 to boost read and write speeds.
- Easy Capacity Expansion: Scale up to 36 drive bays with two 12-bay DX1222 expansion units.
Đặc tính kỹ thuật
| Hardware | |
| CPU | Intel® Xeon® D-1531 6-core (12-thread) 2.2 GHz, turbo boost up to 2.7 GHz |
| Hardware encryption | AES-NI |
| Memory | 16 GB DDR4 ECC SODIMM (expandable up to 48 GB) |
| Compatible drive types | • 12 x 3.5 inch or 2.5 inch SATA HDD/SSD (drives not included) • Only drives listed on the compatibility list can be used to create storage pools |
| Hot swappable drives | Yes |
| External ports | • 2 x USB 3.2 Gen 1 ports • 2 x Expansion ports (Mini-SAS HD) |
| Form factor | Desktop |
| Size (HxWxD) | 270 x 300 x 340 mm |
| Weight | 9.8 kg |
| LAN ports | • 1 x 1GbE RJ-45 (out-of-band management and data transfer) • 2 x 1GbE RJ-45 (data transfer) • 2 x 10GbE RJ-45 |
| Wake on LAN/WAN | Yes (only on 1GbE ports) |
| Out-of-band management | Yes (on first 1GbE port) • Power on/off/reboot • Access system console |
| PCIe Expansion | • 1 x 8 width slot, Gen 3.0 x8 lanes • Supports network interface cards, 3 M.2 NVMe adapter cards for SSD cache, 4 Fibre Channel host bus adapters, 3 and 10GbE/M.2 NVMe adapter combination cards |
| Scheduled power on/of | Yes |
| System fans | 2 x (120 x 120 x 25 mm) |
| AC input power voltage | 100V to 240V AC |
| Power frequency | 50/60 Hz, single phase |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | 20°C to 60°C (-5°F to 140°F) |
| Relative humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM Specifications | |
| Networking protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Fibre Channel,3 Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| File systems | • Internal: Btrfs, ext4 • External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID types | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Storage management | • Max. single volume size: 108TB/200TB12 • Max. number of system snapshots: 65,536 • Max. number of internal volumes: 256 |
| SSD cache | • Read/write cache support • M.2 NVMe4 or 2.5' SATA SSD support |
| Out-of-band (OOB) management | Power on, shutdown, force shutdown, force reboot, reset system, view DSM logs, monitor DSM logs, view OOB logs |
| File sharing capabilities | • Max. number of local user accounts: 16,000 • Max. number of local groups: 512 • Max. number of shared folders: 512 • Max. number of concurrent SMB/NFS/AFP/FTP connections: 4,000 (10,000 with RAM expansion) |
| Privileges | Windows® Access Control List (ACL) and application privileges |
| Directory services | Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials |
| Virtualization | VMware vSphere®, Microsoft Hyper-V®, Citrix®, OpenStack, and Kubernetes |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite) |
| Supported browsers | Google Chrome®, Firefox®, Microsoft Edge®, Safari® 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android™ 11.0 and later) on tablets |
- Bảo hành: 24 tháng.
