0916 287 068 Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-30TK(K)
.jpg "Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-30TK(K)")

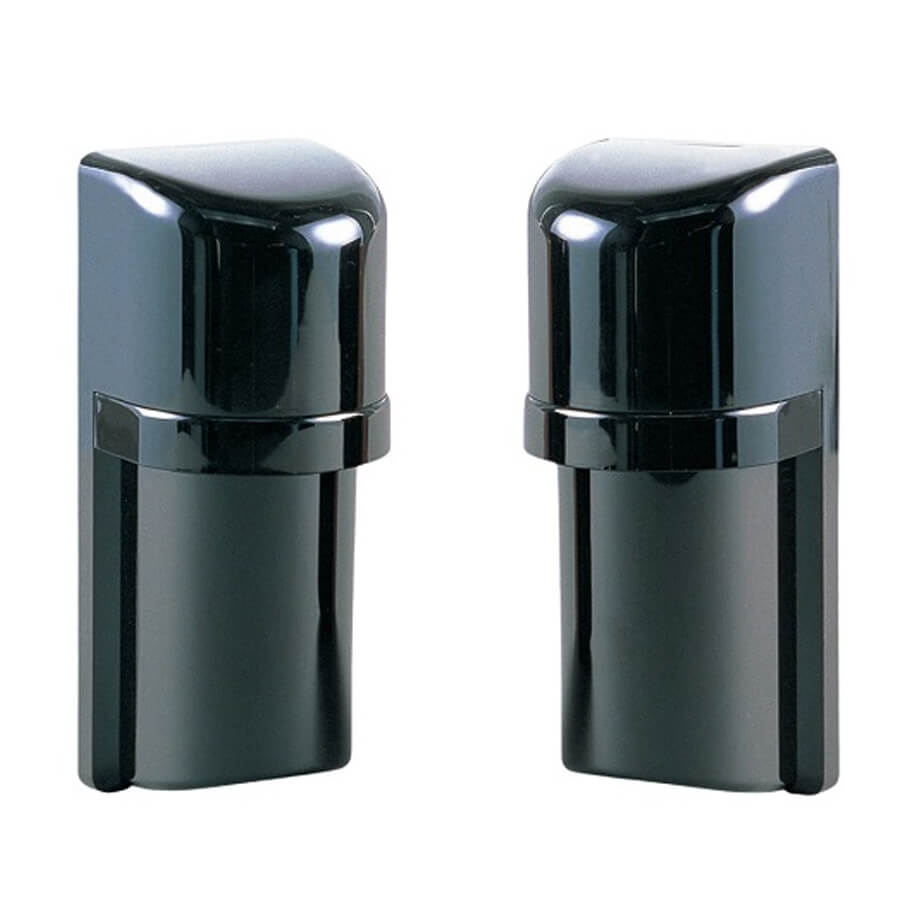

Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-30TK(K)
- High Reliability
+ Synchronized twin beams reduce false alarms caused by flying birds and falling leaves.
- External Light Protection
+ Trouble-free condition in 50,000 lx illumination fluctuation is assured by external light compensation circuit a filter, specially designed, that cuts visible rays effectively. Excellent tolerance against sun light, automobile head light, fluorescent light or mercury light.
- Easy Beam Alignment
+ The special view finder allows for fast aiming and assures good alignment. Equipped with monitor jack to check sensitivity.
- Rotary Optical System
+ The optical system of both the transmitter and receiver can be rotated a full 180 degree which allows for side aiming.
+ Therefore the units do not have to be mounted face to face and the beam direction can not be discerned by simple observation.
- Insect Protection
+ A sealed optical system prevents intrusion and interference by insects.
- Other Features
+ Automatic Gain Control circuit loaded
+ Wide adjustment (horizontally +/-90 degrees,vertically +/-10 degrees)
+ Two different colors housing (Black/White)
- Protection Against Frost/Dew
+ As a special hood is attached on sensor cover, beam protection continues without interruption even when the cover is screened by frost or dew.
Thông số kỹ thuật
| Model | PB-30TK(K) |
| Product name | PHOTO ELECTRIC BEAM SENSOR |
| Detection system | Simultaneous breaking, of 2 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 100' (30m) or less Indoor 200' (60m) or less |
| Max. beam range | Outdoor 1000' (300m) or less |
| (Approximation) | Indoor 1000' (300m) or less |
| Response time | 50msec. to 700msec. (Variable at pot) |
| Supply voltage | 10V to 30VDC (Non-polarity) |
| Current consumption | 53mA or less |
| Alarm output | Dry contact reray output form C Contact action: Interruption time + delay time (1 to 3 sec.) Contact capacity: 30V AC/DC, 0.5A or less |
| Tamper output | Dry contact reray N/C Action: Activated when cover is detached Contact capacity: 30V AC/DC, 0.5A or less |
| Alarm LED | Red LED (Receiver) ON: when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) ON: when an alarm is initiated. |
| Functions | Monitor jack output,AGC circuit, Frost proof cover |
| Ambient temperature range | -13F to +140F (-25C to +60C) |
| Mounting positions | Indoor / Outdoor |
| Wiring | Terminals |
| Weight | Transmitter: 13.3oz(380g) Receiver: 14oz(400g) |
| Appearance | PC resin(wine red) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 12 tháng.
