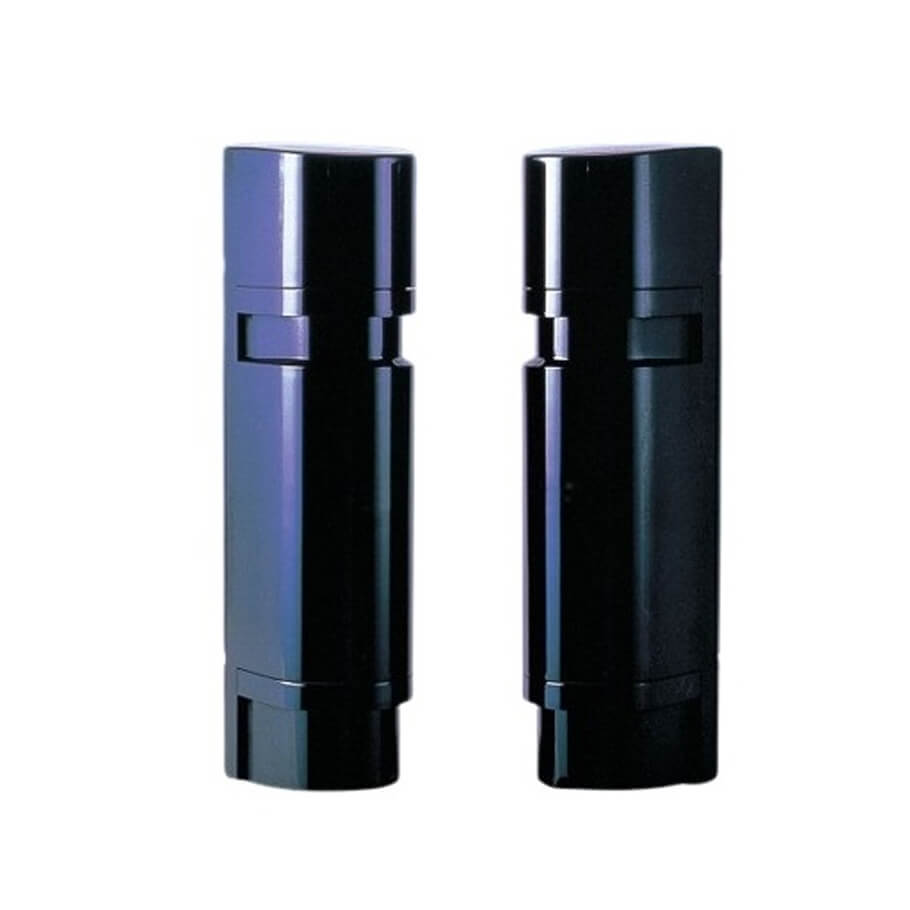

0916 287 068 Photoelectric Beam Sensor Outdoor TAKEX PB-100ST
Photoelectric Beam Sensor Outdoor TAKEX PB-100ST
- High Reliability
+ Synchronized twin beams reduce false alarms caused by flying birds and falling leaves.
- External Light Protection
+ Trouble-free condition in 50,000 Ix illumination fluctuation is assured by external light compensation circuit a filter, specially designed, that cuts visible rays effectively. Excellent tolerance against sun light, automobile head light, fluores-cent light or mercury light.
- Easy Beam Alignment
+ The special view finder allows for fast aiming and assures good alignment. Equipped with monitor jack to check sensitivity. Also there is a sensitivity attenuation LED and monitor jack output.
- Rotary Optical System
+ The optical system of both the transmitter and receiver can be rotated a full 180°which allows for side aiming.
+ Therefore the units do not have to be mounted face to face and the beam direction can not be discerned by simple observation.
- Insect Protection
+ An unique rubber grommet prevents insects from entering through the wiring hole.
- Other Features
+ Automatic Gain Control circuit loaded.
+ Wide adjustment (horizontally +/-90°, vertically +/-10°).
+ Tamper output for high security. (Receiver).
+ Polycarbonate cover excellent at anti-shock.
- Protection Against Frost/Dew
+ As a special hood is attached on sensor cover, beam protection continues without interruption even when the cover is screened by frost or dew.
Thông số kỹ thuật
| Model | PB-100ST |
| Name | Photoelectric Beam Sensor |
| Detection system | Simultaneous breaking of 2 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 330ft. (100m) |
| Max. beam range | 3300ft. (1000m) |
| Response time | 50msec. to 700msec. (Variable at pot) |
| Supply voltage | 10V to 30V DC (Non-polarity) |
| Current consumption | 80mA or less |
| Alarm output | Dry contact relay output form C Contact action:Interruption time+delay time (1 to 3 sec.) Contact capacity: 30V (AC/DC) 0.5A or less |
| Tamper output | Dry contact relay N/C Action : Activated when cover is detached Contact capacity : 30V (AC/DC) 0.1A or less |
| Alarm LED | Red LED (Receiver) On: when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) On: when beam is attenuated |
| Functions | Monitor jack output, AGC circuit, Frost proof cover |
| Ambient temperature range | -13F to +140F (-25C to +60C) |
| Mounting positions | Outdoor |
| Wiring | Terminals |
| Weight | Transmitter/Receiver : 42oz (1200g) each |
| Appearance | PC resin (wine red) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 12 tháng.
