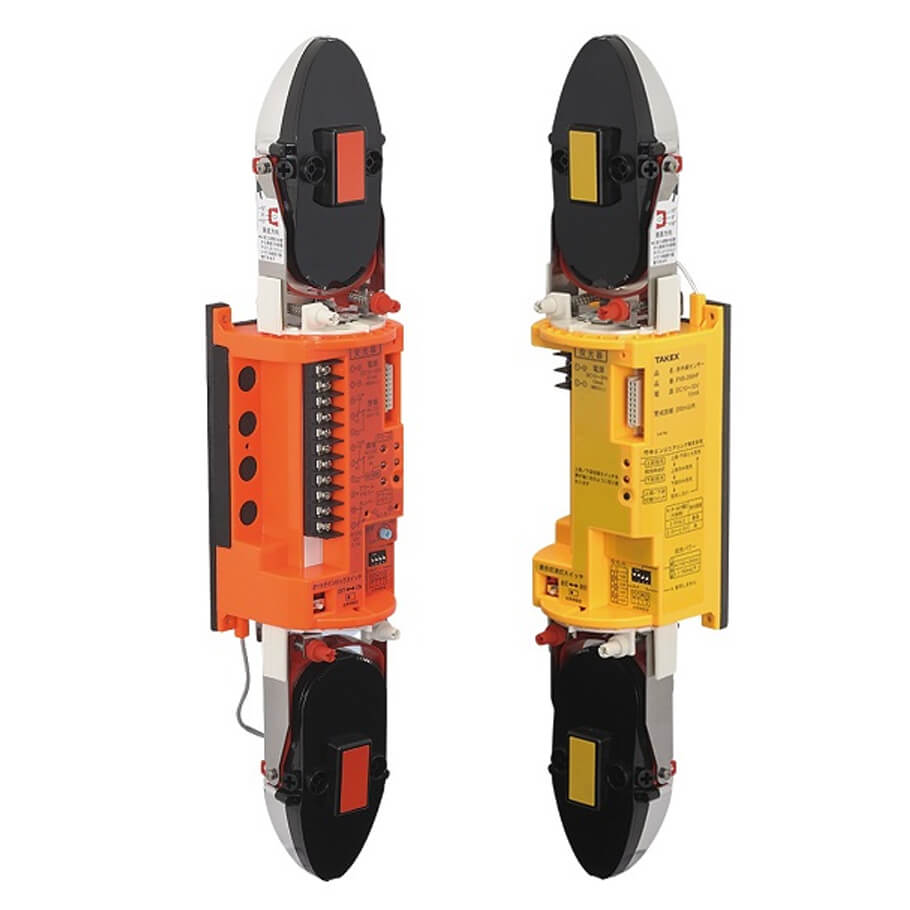

Photoelectric Beam Sensor TAKEX PXB-100HF-KH(E)

Photoelectric Beam Sensor TAKEX PXB-100HF-KH(E)

- Double Modulation: Double modulated beams are designed to distinguish the external lights. It increases the reliability in the outdoor security system. (50,000 lux light immunity).

- Quad High Power Beam

   + The beam power is 100 times of the minimum requirement.

   + The beam distance is 10 times of the described specification.

   + This high power beam maintains the ability to operate reliably in inclement weather.

- Wide Beam: The pitch between upper and lower beam is wider than previous models; drastically reducing false alarms initiated by birds and falling leaves.

- Advanced Reticle Sighting System: Enables a faster and easier alignment process.

- Increased Vertical Angle Adjustment

   + The horizontal is still ±90°;

   + ±20° Better accommodates alignment on uneven terrain, when compared to existing models (±10°).

- Target Color: Structure colors are tuned to the Peak Wavelengths of the Human Eye Response (Photopic eye response), to be easily targeted in the beam alignment process.

- Bi-Directional Wireless Alignment Checker: One person can accomplish system alignment in a fraction of the time; for dramatic savings on labor costs. (sold separately) . Bi Directional communication distance is max 200m.

- Low Current Consumption: 50% reduction in current consumption allows cost savings upfront (by reducing the required wire gauge on installation), and continues the savings for years to come with lower electrical consumption.

- Eco-Friendly: RoHS certified compliant: free from Lead, Mercury, Cadmium, Hexavalent Chromium, Polybrominated biphenyl, and Polybrominated biphenyl ether.

- Lightening Protection: Maximum Lightening induced surge protection to 10,000VDC (normal mode) and 15,000VDC (common mode).

Specification

- Bảo hành: 12 tháng.
