0916 287 068 Passive Infrared Sensor TAKEX PA-6812E (BL)
.jpg "Passive Infrared Sensor TAKEX PA-6812E (BL)")

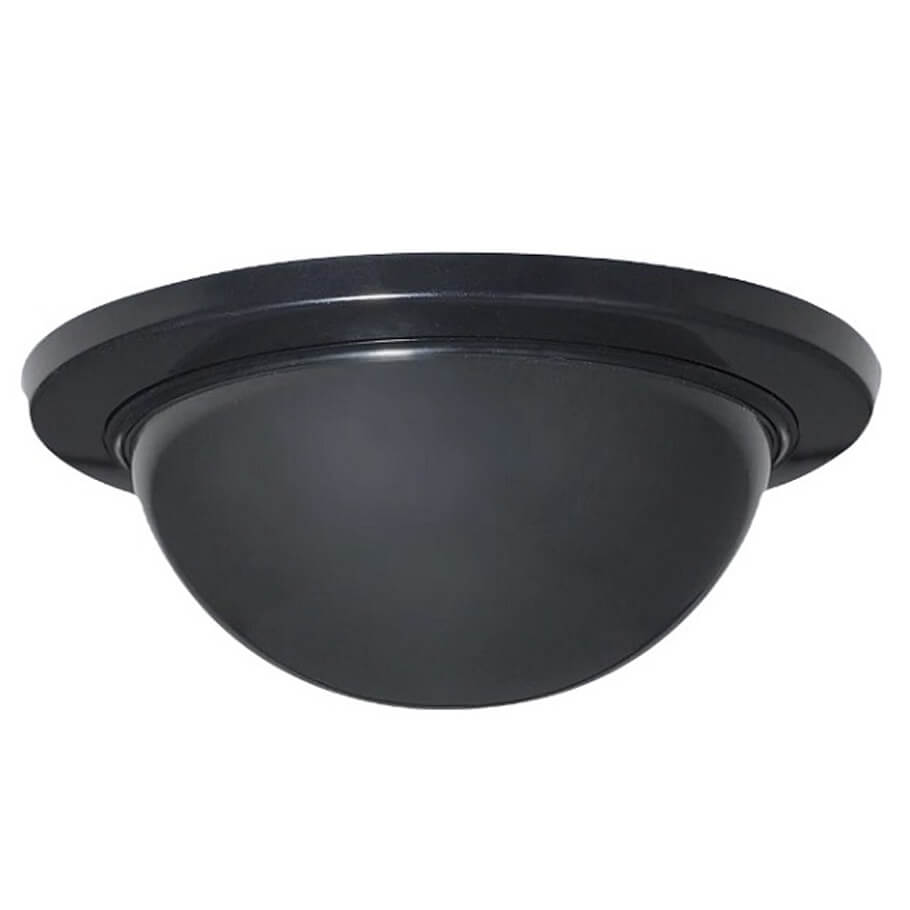

Passive Infrared Sensor TAKEX PA-6812E (BL)
- Compact design
+ Our high technology provides the world's smallest dome shaped infrared sensor.
+ Super slim & compact design-120mm in diameter and 47mm in height.30% smaller than PA-6700 series.
- Easy installation
+ Easy separation of the sensor unit and the base unit eases installation and maintenance.
+ The sensor unit can be snapped into and out of the base unit. One touch operation eases installation in high places.
- Mirror optic
+ The CAD designed optic with our original simulation software has achieved sharp zones.
+ A rotating mirror ensures ecient detection regardless of the area setting.
- Silent relay
+ Photo-mos FET switch relay adopted at alarm output. Completely noiseless by eliminating the movable part which is inside of the relay.
- High stability
+ Signal processing by the original CPU.
+ Excellent R.F.I and noise immunity.
+ Good protection against insect intrusion.
- Sensitivity changeover
+ Sensitivity is adjustable by 4 steps: 60%, 80%, 100％, 120％.
- Pulse count changeover
+ Mode selector allows setting for 1, 2, 3 or 4 triggers to initiate an alarm output to suit its application. (PA-6812E / PA-6810E / PA-6805E)
- Alarm contact changeover
+ Mode selector allows N/O or N/C contact to be selected.
- Remote led control
+ Alarm LED can be disabled by external contact switch.
- Auto alarm memory
+ Alarm memory can be auto-reset or disabled by mode selector.
- Other features
+ Distinguishable operation LED.
+ Alarm LED: Red, Memory LED: Yellow
+ Wall mounted with optional attachment BCW-401.
Thông số kỹ thuật
| Model | PA-6812E (BL) |
| Product name | PASSIVE INFRARED SENSOR |
| Detection system | Passive infrared |
| Coverage | Wide angle 40' (12m) Max. |
| Sensitive zone | 17 pairs |
| Supply voltage | 10.5 to 30V DC (non-polarity) |
| Current consumption | 25mA Max. (+2mA at L/C use) |
| Alarm signal | Dry contact (Semi-Conductor) (N.C. / N.O. changeover) Reset : Approx. 2 sec., 24V (AC/DC) 0.25A (protective resistor 3.3Ω) |
| Alarm memory | 3 minutes ashing, 47 minutes lighting and automatically reset |
| Alarm LED | Red : Flashing at warming up Lighting at alarm (LED disabled) |
| Memory LED | Yellow : Flashing at memory activated Lighting at memory indication |
| Adjustment | Vertically : 30 degrees Horizontally : 25 degrees (on mounting hole of base) |
| Count changeover | 1 / 2 / 3 / 4 changeover |
| Ambient temperature range | +5F to +131F (-15C to +55C ) without condensation |
| Mounting position | Indoor ceiling (wall mount with optional attachment BCW-401) |
| Wiring connection | Terminals on separate base unit |
| Weight | 3.85oz (110g) |
| Appearance | Compact |
| Color | Black |
- Bảo hành: 12 tháng.
