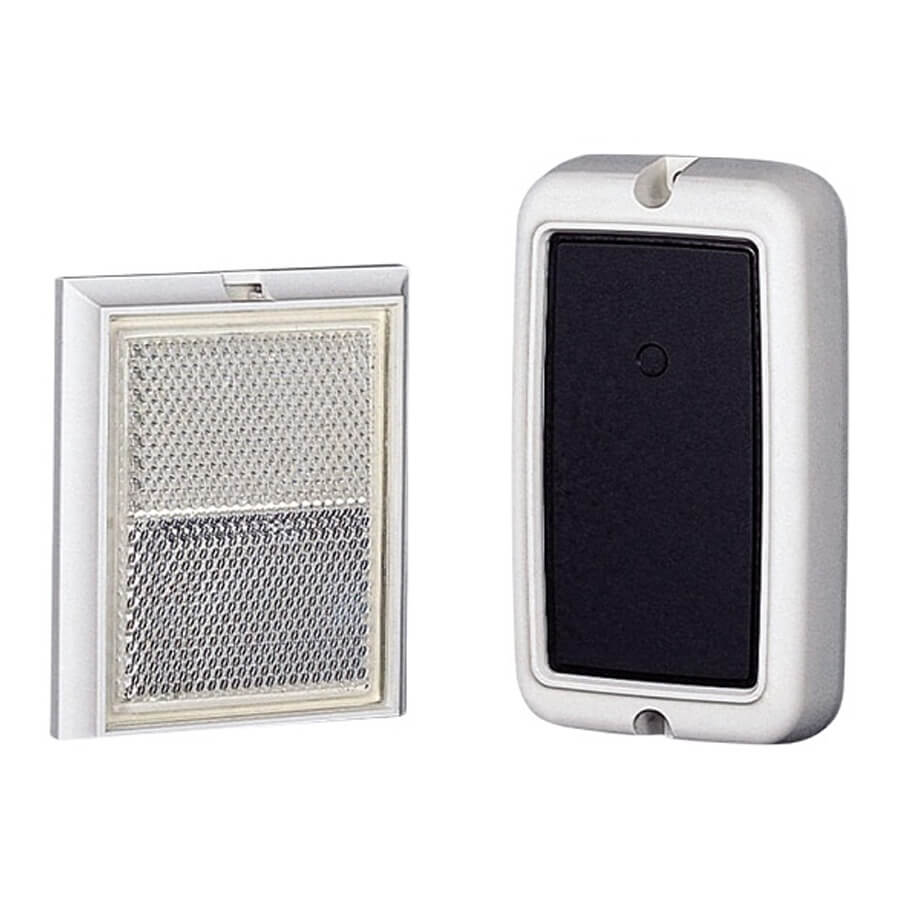

Photoelectric Beam Sensor TAKEX PR-5B(R)(E)

Photoelectric Beam Sensor TAKEX PR-5B(R)(E)

- Reflector Beam For Short Distance Protection

   + The PR-5B is designed for applications where a“beam break” sensor is desirable but running wire to both ends is impractical.

   + Suggested applications include entrances and exits, corridors, staircases and as an annunciation device.

- Compact Size And Smart Design

   + Super slim, pocket calculator sized unit is esigned for unobtrusive installation.

   + Its new white enclosure blends well with virtually all environments.

- Excellent External Light Immunity: Our original design has been further enhanced by the addition of a new special filter which effectively eliminates interference from visible light rays.

- Easy Installation: The reflector allows up to 30 degrees(+/-15 degrees) angle variance in beam reception/reflection which makes installation very“forgiving”and can aid in situations where it is nearly impossible for the beam to reflect off the mirror“dead center”.

   + Simple terminal arrangement provides for easy installation.

   + Wide range of supply voltage, 10.5V to 26V DC (non-polarity)

   + Flush mount plates available for both sensor and reflector (option), BP-5B, BP-5D, BP-5C

   + “L”brackets available for both sensor and reflector (option), BL-5

Specification

- Bảo hành: 12 tháng.
