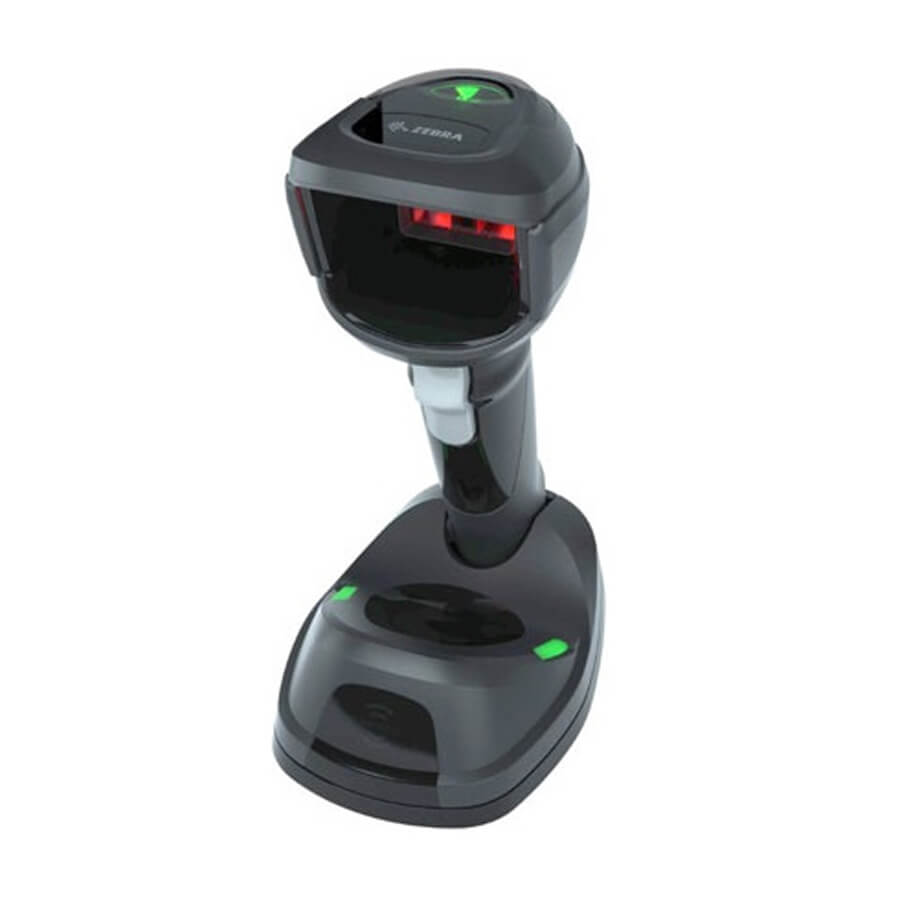

Máy quét mã vạch Zebra Symbol DS 9908
- Quét mã vạch: 1D + 2D + OCR + Digimarc.
- Nguồn sáng: Aiming Pattern: Circular 617nm Amber LED.
- Tốc độ quét: Up to 240 in./610 cm per second for 13 mil UPC in optimized mode.
- Cổng giao tiếp: USB (mặc định), tùy chọn RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485.
- Tiêu chuẩn chống thấm: IP52.
Đặc tính kỹ thuật
| Model | DS 9908 |
| Physical | |
| Dimensions | 20.3 cm H x 9.4 cm W x 13.2 cm D |
| Weight | 330g |
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Operating current at nominal voltage (5.0V) | 321mA |
| Supported Host Interfaces | USB Certified3, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume) |
| Performance | |
| Swipe Speed (HandsFree) | Up to 240 in./610 cm per second for 13 mil UPC in optimized mode |
| Light Source | Aiming Pattern: Circular 617nm Amber LED |
| Illumination | (2) 645nm Red LEDs |
| Imager Field of View | 48° H x 30.6° V Nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 16% minimum reflective difference |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0° - 360° |
| Imaging | |
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality (A4 Document) | 116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./ 20.3 cm |
| Environmental | |
| Operating Temperature | 0.0° to 50.0° C |
| Storage Temperature | -40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble | Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m Tumbler |
| Environmental | IP52 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles / 0 to 107,600 Lux |
- Bảo hành: 12 tháng.
