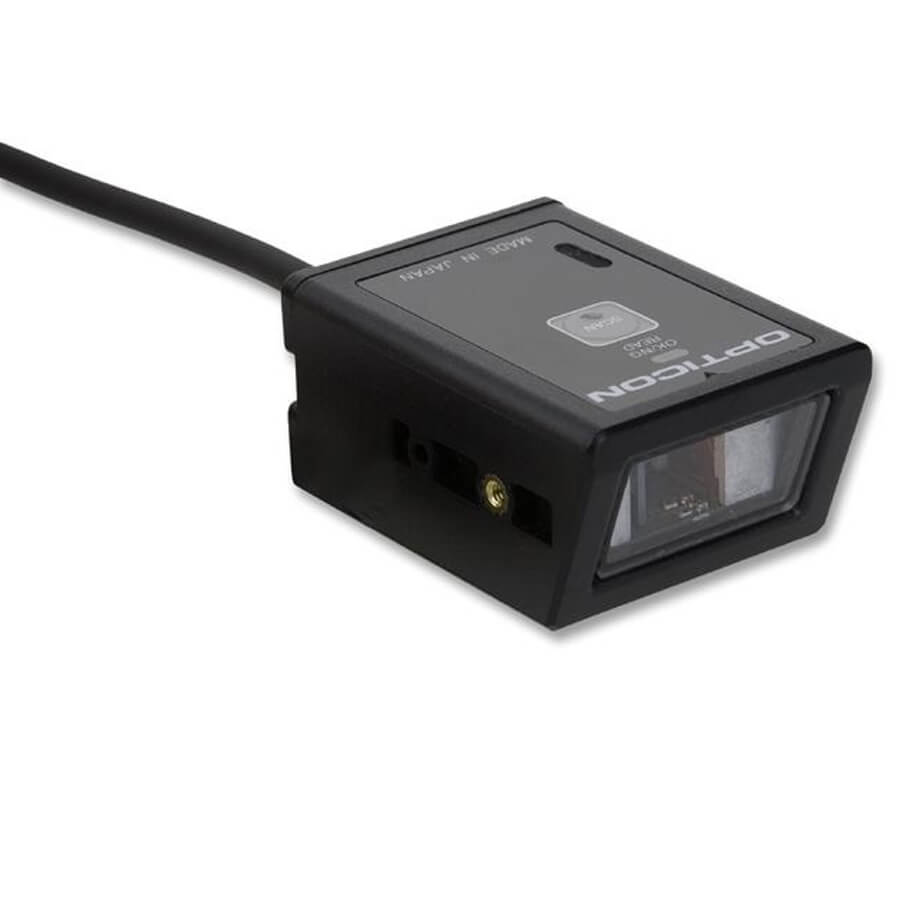

Máy quét mã vạch OPTICON NLV-1001-USBHID

Operating indicators

Visual

1 LED (red/green/orange)

Non-visual

Buzzer

Communication

USB

Ver. 1.1, HID/VCP

Power

Voltage requirement

5V ± 10%

Current consumption

85mA (typical use), max. 150mA

Barcode scanner Optics

Light source

650 nm visible laser diode

Scan method

Bi-directional scanning

Scan rate

100 scans/sec

Trigger mode

Manual, multiple read, auto-trigger, serial software trigger

Reading pitch angle

-35 to 0°, 0 to +35°

Reading skew angle

-50 to -8°, +8 to +50°

Reading tilt angle

-20 to 0°, 0 to +20°

Curvature

R>15 mm (EAN8), R>20 mm (EAN13)

Min. resolution at PCS 0.9

0.127 mm / 5 mil

Min. PCS value

0.45

Depth of field

70 - 630 mm / 2.76 - 24.80 in (1.0 mm / 39 mil), 50 - 400 mm / 1.97 - 15.75 in (0.5 mm / 20 mil), 50 - 240 mm / 1.97 - 9.45 in (0.25 mm / 10 mil), 50 - 130 mm / 1.97 - 5.12 in (0.15 mm / 6 mil), 60 - 100 mm / 2.36 - 3.94 in (0.127 mm / 5 mil), at PCS 0.9 Code 39

Supported Symbologies

Barcode (1D)

JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal code

Chinese Post, Korean Postal Authority code

2D code

Composite codes, MicroPDF417, PDF417

Durability

Temperature in operation

-10 to 45 ºC / 14 to 113 ºF

Temperature in storage

-20 to 60 ºC / -4 to 140 ºF

Humidity in operation

20 - 85% (non-condensing)

Humidity in storage

20 - 90% (non-condensing)

Ambient light immunity

Fluorescent 3,000 lx max, Direct sun 50,000 lx max, Incandescent 3,000 lx max

Antistatic electricity

10kV (non-destructive)

Drop test

0.75 m / 2.5 ft drop onto concrete surface

Protection rate

IP43

Regulatory & Safety

Product compliance

CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II

Physical

Dimensions (w x h x d)

30 x 20 x 43.3 mm

Weight body

Ca. 18.5 g / 0.7 oz (excl. cable)

Case

ABS, Black
