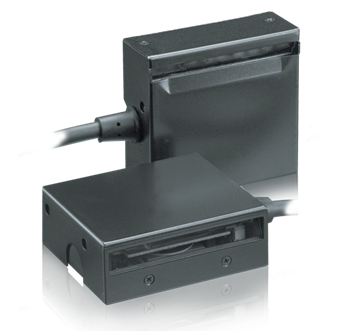

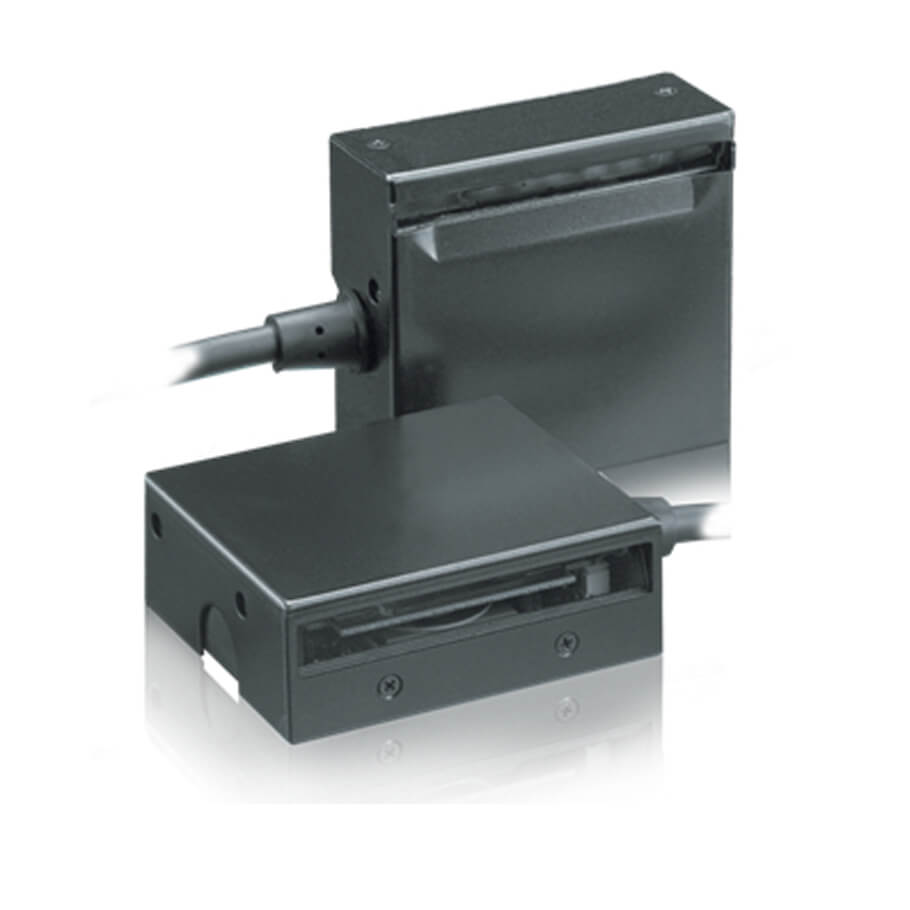

Máy quét mã vạch OPTICON F-70 RS232C I TYPE

Operating indicators

Visual

1 LED (red/green/orange)

Non-visual

Buzzer

Communication

RS232

DB25 F connector with external power supply

Power

Voltage requirement

5V ± 5%

Current consumption

220mA (typical use)

Barcode scanner Optics

Light source

660 nm red LED

Scan method

CCD linear sensor

Scan rate

700 scans/sec

Trigger mode

Multiple read, serial software trigger

Reading pitch angle

-6 to 0º, 0 to +6º

Reading skew angle

-30 to -10°, +10 to +30°

Reading tilt angle

-20 to 0°, 0 to +20°

Focal plane

35.4 mm

Curvature

R>30 mm (EAN8), R>20 mm (EAN13)

Min. resolution at PCS 0.9

0.2 mm / 0.15 mm at 60 mm reading length

Min. PCS value

0.45

Depth of field

Ca. 30 - 42 mm / 1.18 - 165 in (Ca. -5 to + 5 mm from focal plane)

Supported Symbologies

Barcode (1D)

JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), IATA, Industrial 2of5, Interleaved 2of5, MSI/Plessey

Durability

Temperature in operation

0 to 40º C / 32 to 104º F

Temperature in storage

-10 to 60º C / 14 to 140º F

Humidity in operation

20 - 85% (non-condensing)

Humidity in storage

20 - 90% (non-condensing)

Ambient light immunity

Fluorescent Light 5,000 lx max, Incandescent Light: 5,000 lx

Antistatic electricity

15kV (non-destructive)

Drop test

0.6 m / 2 ft drop onto concrete surface

Vibration test

10 - 100 Hz with 2G for 3 hours

Regulatory & Safety

Product compliance

CE, FCC, RoHS, EN60950-1, IEC60950-01,IEC60825-1, EN55022, EN55024

Physical

Dimensions (w x h x d)

55 x 47 x 20 mm

Weight body

Ca. 100 g / 3.5 oz (excl. cable)

Case

Sheet metal, Black
