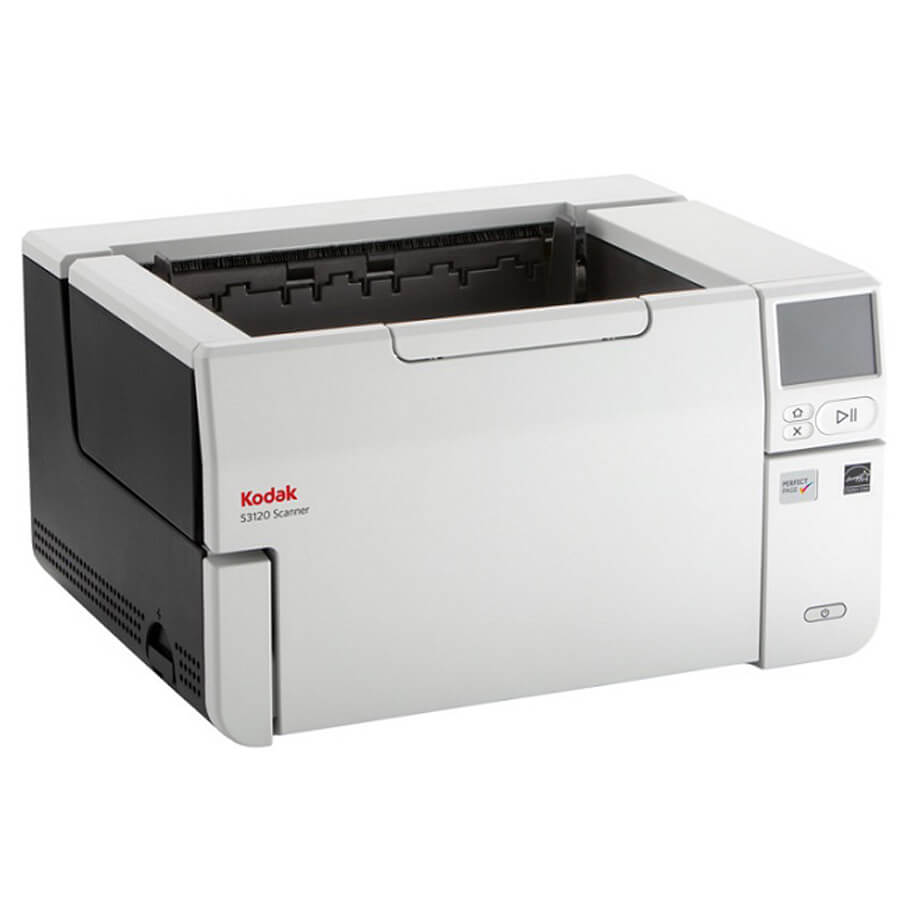

Máy quét khổ giấy A3 KODAK S3120
- Kiểu máy: để bàn nạp giấy tự động.
- Khổ giấy: tối đa 305 mm x 4.06 m / tối thiểu 63.5 mm x 71.1 mm.
- Độ dày/Trọng lượng giấy: giấy 27~433 g/m².
- Công suất/ngày: 50.000 tờ.
- Tốc độ quét (ADF, Trắng đen/Thang xám, 200dpi, Chiều thẳng, Giấy letter): 120ppm/240ipm.
- Tốc độ quét (ADF, Màu, 200dpi, Chiều thẳng, Giấy letter): 120ppm/240ipm.
- Cảm biến hình ảnh: CIS kép.
- Đèn chiếu sáng: đèn LED kép.
- Độ phân giải quang học: 600dpi.
- Khay nạp: 300 tờ (định lượng 80 g/m²).
- Cổng kết nối: USB 3.2 GEN1; Ethernet 10/100/1000.
Đặc tính kỹ thuật
| Model | S3120 |
| Product Highlights | Compact A3 scanner with a straight-through paper path to feed thick or exceptionally long documents |
| Throughput Speeds | 120 ppm / 240 ipm |
| Feeder Capacity | Up to 300 sheets of 80 g/m² (20 lb.) paper |
| Connectivity | USB 3.2 Gen 1x1 Compatible 10/100/1000 Ethernet |
| Maximum Document Size | 305 mm x 4.06 m (12 in. x 160 in.) |
| Minimum Document Size | 63.5 mm x 71.1 mm (2.5 in. x 2.8 in.) |
| Paper Thickness & Weight | 27–433 g/m² (7.2–160 lb.) paper |
| Maximum Optical Capture Resolution | 600 dpi |
| Recommended Daily Volume | Up to 50,000 pages per day |
| Acoustical Noise | Off or ready mode: < 20 dB(A) Scanning mode: < 60 dB(A) |
| Bundled Software | Capture Pro Limited Edition Smart Touch |
| Dimensions | Height: 254 mm / 10 in. Width: 457.2 mm / 18 in. Depth: 370.84 mm / 14.6 in. |
| Weight | 16.8 kg |
| Electrical Requirements | 100-240 V (International); 50-60 Hz |
| File Format Outputs | BMP JPEG Single-page TIFF Microsoft Excel Microsoft Word Multipage TIFF Text searchable PDF PNG RTF |
| Network Protocols | DHCP (or static IP) TCP/IP |
| Operator Control Panel | 3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons |
| Operating Temperature / | 15-35° C (59-95° F) |
| Operating Humidity | Operating Humidity 15% - 80% RH |
| Power Consumption | Running: less than 50 watts Sleep Mode: less than 4 watts Standby: less than 0.3 watts |
| Recommended PC Configuration | INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more |
| Scanning Technology | Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3) |
- Bảo hành: 12 tháng.
