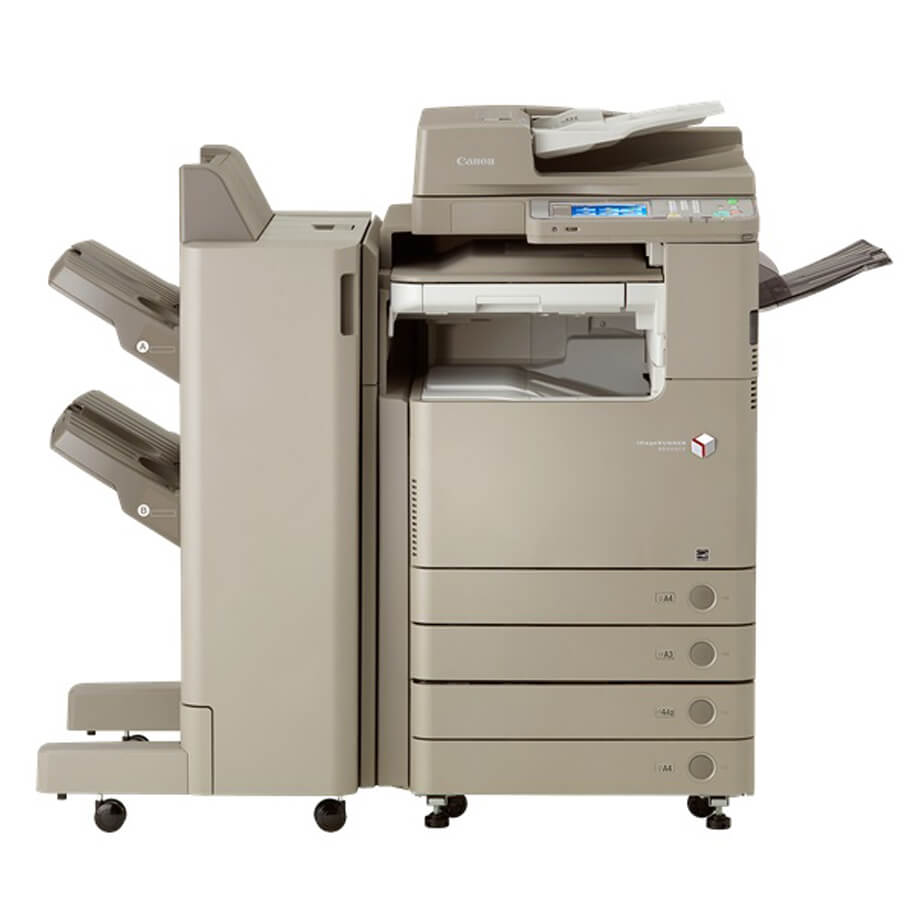

Máy Photocopy màu Canon imageRUNNER ADVANCE C2230
– Chức năng in, scan qua mạng, scan tới email
– Tốc độ copy: 30 trang/ phút (đen/màu)
– Độ phân giải: 1200 x 1200 dpi (in), 600 x 600 dpi (copy)
– Khổ giấy A3-A5.
– Chức năng: In 2 mặt tự động (duplex)
– CPU: 1.66 GHz. RAM: 2GB (chuẩn). HDD: 160GB (chuẩn)
– Số lượng bản in, copy liên tục: 1-999 bản.
– Chức năng phóng to, thu nhỏ: 25%-400%
– Khay cassette: Khay 520 tờ x 1; khay 550 tờ x 1, khay tay 100 tờ
– Cổng giao tiếp: USB 2.0, Ethernet
– Tuổi thọ Drum (A4): 43.000 bản (trắng/ đen); 36.000 bản (màu)
– Mực NPG-52 (B/C/M/Y): 23.000 (trắng/ đen); 19.000 (màu) - Bản A4
– Chức năng nạp và đảo bản gốc tự động (DADF-AJ1)
– Hỗ trợ màn hình LCD cảm ứng màu đa sắc: 7 inch TFT
– Hỗ trợ chức năng Tiếng Việt
Đặc tính kỹ thuật
|
Type |
Desktop |
|
|
Maximum Original Size |
A3 |
|
|
Copy Sizes |
Cassette 1 |
A3, B4, A4, and B5 |
|
Cassette 2 |
A3, B4, A4, A4R, B5, B5R, A5R |
|
|
Custom Size 139.7 x 182mm to 304.8 x 457.2mm and Envelopes |
||
|
Stack Bypass |
305 x 457mm, 320 x 450mm (SRA3), A3, B4, A4, A4R, B5, B5R, A5, A5R |
|
|
Custom Size 99 x 139.7mm to 320 x 457.2mm and Envelopes** (Optional) |
||
|
Resolution |
Reading |
600 x 600dpi |
|
Copying |
600 x 600dpi |
|
|
Printing |
1200 x 1200dpi (Text / Line only) |
|
|
Copy / Print Speed |
A4 |
30ppm (B&W / Colour) |
|
A3 |
15ppm (B&W / Colour) |
|
|
Magnification |
Zoom |
25 - 400% |
|
First Copy Time |
Black & White |
5.9 secs. |
|
Full Colour |
8.9 secs. |
|
|
Warm-Up Time |
34 seconds |
|
|
Multiple Copies / Prints |
1 to 999 sheets |
|
|
Duplexing |
Standard automatic stackless |
|
|
Paper Weight |
Cassette 1 |
64 to 120gsm |
|
Cassette 2 |
64 to 163gsm |
|
|
Stack Bypass |
64 to 220gsm |
|
|
Duplex |
64 to 120gsm |
|
|
Paper Capacity |
Standard |
Cassette 1 (80gsm): 520 sheets |
|
Cassette 2 (80gsm): 550 sheets |
||
|
Stack Bypass (80gsm): 100 sheets |
||
|
Optional |
550 sheets x 2 cassettes (80gsm) |
|
|
Total maximum capacity |
2,270 sheets |
|
|
CPU |
1.66GHz |
|
|
Memory |
Standard |
2GB RAM |
|
Hard Disk Drive |
Standard |
160GB |
|
Interface |
Ethernet (1000BaseT / 100Base-TX / 10Base-T) |
|
|
Power Supply |
220-240V AC, 50 / 60Hz |
|
|
Power Consumption |
1.5kW max |
|
|
Toner (Estimated Yield @ 5% Coverage) |
23,000 (B&W), 19,000 (Cyan, Magenta and Yellow) |
|
|
Drum Yield |
53,000 (B&W), 44,000 (Cyan, Magenta and Yellow) |
|
|
Dimensions (W x D x H) |
Main Unit Only |
565 x 680 x 791mm |
|
(With the Duplex Colour Image Reader Unit-G1) |
||
|
Weight |
Main Unit Only |
Approximately 79kg |
|
With DADF |
Approximately 86.9kg |
|
|
Print Specification |
|
|
|
PDL |
UFRII (Standard), PCL 5c/6 (Optional), Adobe PostScript 3 (Optional) |
|
|
Resolution |
1200 x 1200dpi (Text / Line only), 600 x 600dpi |
|
|
Memory |
2GB (Uses Main Unit RAM) |
|
|
Hard Disk |
Standard 160GB |
|
|
CPU |
Canon Custom Processor, 1.67GHz (Uses Main Unit CPU) |
|
|
PS Fonts |
Roman 136 |
|
|
PCL Fonts |
Roman 93, Bitmap10, OCR2 |
|
|
Supported OS |
PCL |
Windows XP / Server2003 / Vista / Server2008 / Windows7 / Server 2008 R2 / Windows 8 |
|
Adobe PostScript 3 |
Windows XP / Server2003 / Vista / Server2008 / Windows7 / Server 2008 R2 / Windows 8, Mac OS X (10.4.9 or later) |
|
|
UFR II |
Windows XP / Server2003 / Vista / Server2008 / Windows7 / Server 2008 R2 / Windows 8, Mac OS X (10.4.9 or later) |
|
|
Mac-PPD |
Mac OS 9.1 or later, Mac OSX (10.2.8 or later) |
|
|
Interface |
Ethernet (1000Base-T / 100Base-TX / 10Base-T), USB2.0 |
|
|
Network Protocol |
TCP / IP (LPD / Port9100 / WSD / IPP / IPPS / SMB / FTP), IPv6, IPX / SPX (NDS, Bindery), AppleTalk |
|
|
Pull Scan |
Network TWAIN Driver |
|
|
Send Specification (Standard) |
|
|
|
Scan Resolution |
100dpi, 150dpi, 200 x 100dpi, 200dpi, 200 x 400dpi, 300dpi, 400dpi, 600dpi |
|
|
Destinations |
E-Mail / Internet FAX (SMTP), PC (SMB, FTP), WebDA V. Google Docs and Microsoft SharePoint Online with iR-ADV Cloud Connect MEAP application |
|
|
Address Book |
LDAP, Local (Max.1800) |
|
|
File Format |
TIFF, JPEG, PDF, XPS, High compression PDF / XPS, PDF / A-1b, Optimize PDF for Web, OOXML (.PPTX only) |
|
– Bảo hành: 12 tháng
