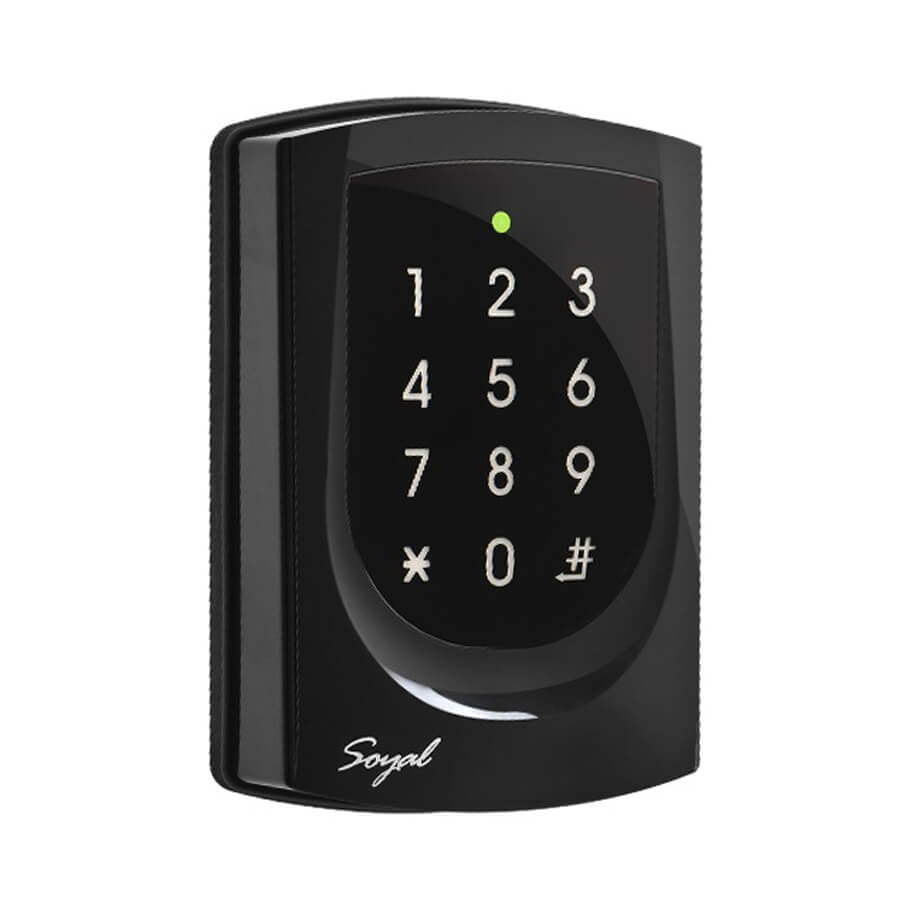

0916 287 068 IP-Based Touch Keypad Access Controller SOYAL AR-725EB
IP-Based Touch Keypad Access Controller SOYAL AR-725EB
- Frequency: 125kHz.
- RS-485 and TCP/IP communication interface.
- Built-in Watch Dog to prevent the halting.
- User capacity: 16.000.
- Event logs: 32.000.
- Lift control: 64 floors/32 floors/16 floors.
- Ingress protection IP55.
- Data reduancy while system disconnected, indentify users and store event log up 32000 records.
- 63 auto-open zone settings and 16 sets of Auto-Open Zone editable.
- WG port provides anti-pass-back function.
- Built-in HTTP Browser for remote Access Control.
- One more Exit Switch, Door Contact and Door Output to wiegand.
- Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal.
- TTL or RS-485 serial output for various application, lift control and Bluetooth Module.
- Built-in 16 set of Alarm and 120 days of Holiday setting.
- Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open.
- Intelligent to shift for standalone or networking mode while system disconnected.
- Support SCC encryption (Soyal Security Communication) to enchance security of communication.
Specification
| Communication interface | Host: RS485 (9600bps (N, 8, 1))/TCP/PoE |
| Serial: UART Port (output only)/ 9600bps (N, 8, 1)x2 | |
| Frequency | 125kHz |
| Supported Tags | ISO18000-2:EM4001 and EM4095 compatible |
| RFID Reading Range | 5-15cm |
| UID Bits | 64 |
| DI/DO | DI: Push Button X2/Door Sensor X2 |
| DO: Security Output/Arming Output/ Duress Output/ Duress Output | |
| RO: Door Locsk Relay | |
| Doors/Floors Number | 2 Doors/64 Floors |
| User Capacity | 16000 |
| Event Log | 32000 |
| Indicator | LED: 1 Bi-Color LED |
| Buzzer: 1 | |
| Extend Port | Tamper Switch/Tamper Output/WG In Port WG/WG Out Port/Buzzer |
| Dimension (mm) | 110 (H) x 79 (W) x 26 (D) |
| Housing Material | PC |
| Weight (g) | 150±10 |
| Power Consumption | <5W |
| Power Voltage | 9-24VDC |
| Ingress Protection | IP55 |
| Enviroment | Operating Temperature: -20°C+65°C Storage Temperature: -25°C to +70°C Operating Humidity: 20%~90% Storage Humidity: 5%~95% |
- Bảo hành: 12 tháng.
