Industrial-grade Ultra PoE Splitter PLANET IPOE-171S

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng PLANET >> Industrial-grade Ultra PoE Splitter PLANET IPOE-171S
Mã số:04027392

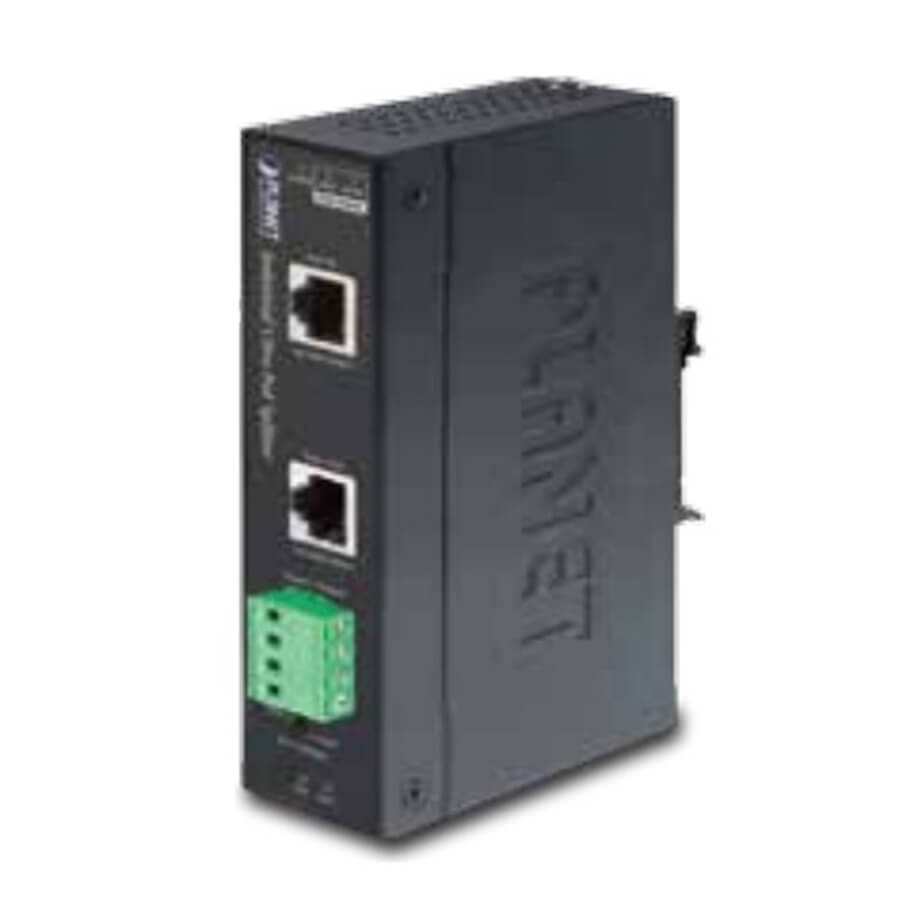

Industrial-grade Ultra PoE Splitter PLANET IPOE-171S

Industrial-grade Ultra PoE Splitter PLANET IPOE-171S

- PLANET IPOE-171S is an Industrial-grade Ultra Power over Ethernet Splitter which delivers both the Ethernet data and a 60-watt to 110-watt PoE power from Ultra PoE  PSE  (Power Source Equipment) over an  UTP cable.  It comes with a selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 95-watt power output to  a  non-PoE powered Ethernet device.  It supports passive 10/100/1000Mbps Ethernet connection and  distance up to 100 meters. To fulfill the growing industrial applications, the IPOE- 171S is designed to work under the  operating temperature range from  -40  to 75 degrees C. The  IPOE-171S is  an  ideal solution to  transferring power to a traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

- Interface: 2 RJ45 interfaces: 1-port Data + Power input and 1-port Data output; 2 DC output (4-pin terminal block)1 DC 12V/24V DIP switch.

Power over Ethernet

- Complies with ultra Power over Ethernet end-span and mid- span PDs.

- Complies with IEEE 802.3at Power over Ethernet Plus end- span/mid-span PD.

- Supports PoE input power up to 110 watts.

- Splits the 50~56V DC power over RJ45 Ethernet cable into DC 12V/24V output.

- Remote power feeding up to 100 meters.

Hardware

- IP30 metal case protection.

- DIN rail and wall mount design.

- -40 to 75 degrees C operating temperature.

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi
