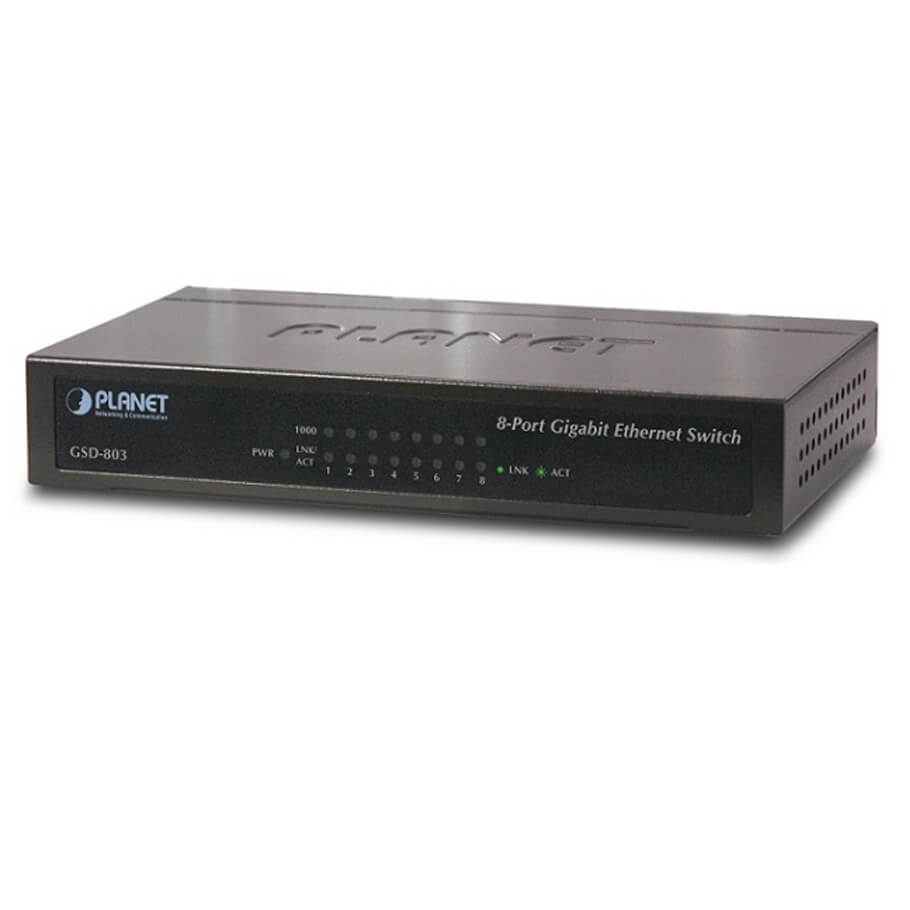

8 Port 10/100/1000Mbps Gigabit Ethernet Switch PLANET GSD-803
- 8 cổng 10/100/1000Mbps Gigabit Ethernet.
- Tiêu chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
- Các tính chất Store-and-Forward mode với các tốc độ dây và forwarding.
- Hỗ trợ 8K cho các địa chỉ MAC.
- Hỗ trợ 9K cho gói Jumbo.
- Hỗ trợ chức năng Auto-MDI/MDI-X.
- Hỗ trợ giao thức CSMA/CD.
- Thiết kế theo chuẩn B: FCC, CE.
RJ45 Interface
- 8 10/100/1000Mbps Gigabit Ethernet ports.
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- Supports auto MDI/MDI-X function.
Switching
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation.
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation.
- Integrated address look-up engine, supporting 8K absolute MAC addresses.
- 9K Jumbo packet size.
- Power saving ability for Green networking.
- Automatic address learning and address aging.
- Supports CSMA/CD protocol.
Hardware
- Made of metal, desktop size and wall-mount design.
- LED indicators for system power, per port 1000 & Link / Act.
- 5V DC, 1A external power adapter.
- FCC, CE Class B compliant.
Đặc tính kỹ thuật
|
Hardware Specification |
|
|
Hardware Version |
6 |
|
10/100/1000Base-T Ports |
8 auto MDI/MDIX ports |
|
LED Display |
One for Power, Two for 1000 & Link / Act per port |
|
Switch Specification |
|
|
Switch Processing Scheme |
Store-and-Forward |
|
Address Table |
8K entries |
|
Flow Control |
Back pressure half duplex |
|
IEEE 802.3x pause frame full duplex |
|
|
Switch fabric |
16Gbps |
|
Throughput (packet per second) |
11.9Mpps |
|
Jumbo packet size |
9K |
|
Standards Conformance |
|
|
Standards Compliance |
IEEE 802.3 (Ethernet) |
|
IEEE 802.3u (Fast Ethernet) |
|
|
IEEE 802.3ab (Gigabit Ethernet) |
|
|
IEEE 802.3x (Full-duplex Flow Control) |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Regulation Compliance |
FCC Part 15 Class B, CE |
|
Power Requirements (External power adapter) |
5VDC, 1A |
|
Power Consumption (100M Full Operation) |
4.9 watts / 16 BTU |
|
Enclosure |
Metal |
|
Dimensions |
155 x 86 x 26 mm |
|
Weight |
348g |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
