0916 287 068 Electric Strike Lock HIKVISION DS-K4G100
Trang Chủ >>
Khóa cửa Điện tử-Điện từ >> Khóa cửa điện từ HIKVISION >> Electric Strike Lock HIKVISION DS-K4G100
Mã số:24141147

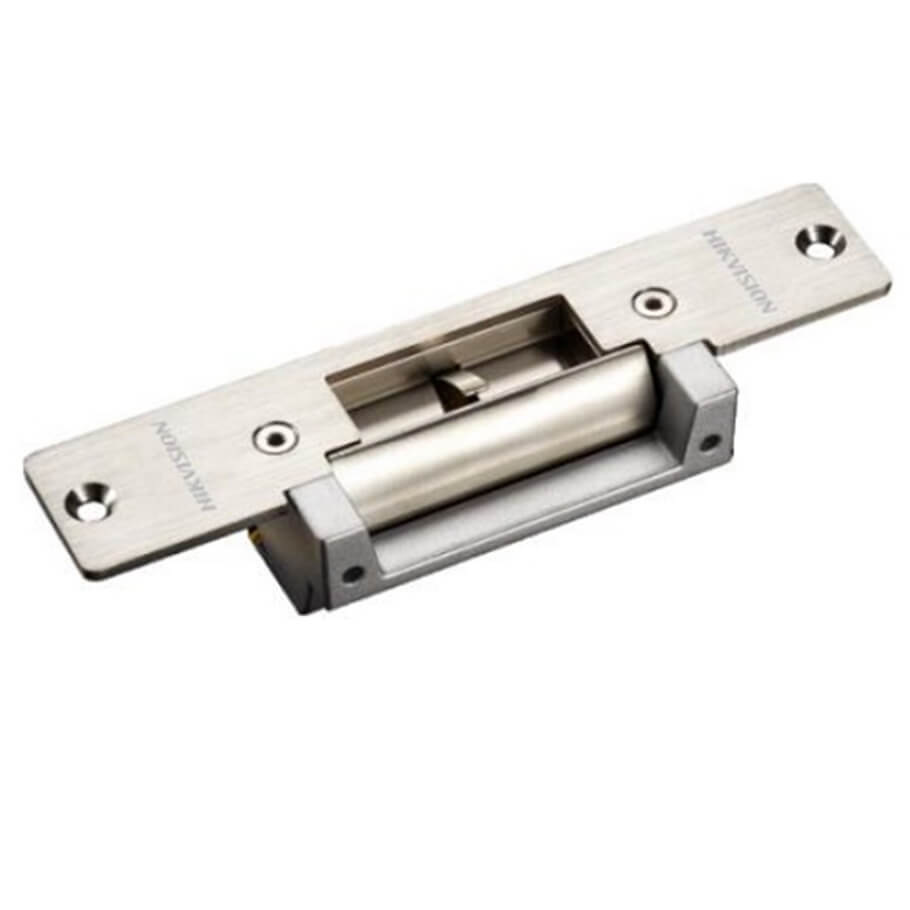

Electric Strike Lock HIKVISION DS-K4G100
- The electric strike lock is designed for wooden door, metal door, and PVC door. It can work depending on the thrust or pull producing by the electromagnetism.
Key Feature
- Fail-secure and fail-safe selectable.
- Material of latch: US304 stainless steel Material of plate: wire-drawing on the surface.
- The magnetic lock supports static linear thrust of 800 kg (1764 lb).
- 100.000 times usage of the electromagnetic coil when powering on.
- Depth of the latch groove: 15mm.
- Strong suction which protects the door from forced opening when the door is locked.
- Double insulation.
Specifications
| Model | DS-K4G100 |
| Dimension of lock body (L × W × H) | 165 mm × 43.7 mm × 35 mm |
| Material of latch | Stainless steel |
| Maximum thrust | 800 kg (1764 lb) |
| Input voltage | 12 VDC, 320 mA/24 VDC, 160 mA ± 15% |
| Signal Output | Dry contact signal output; NO output while locking and NC output while unlocking |
| Suitable door | Wooden door, metal door, PVC door |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95% (non-condensing) |
| Weight | 0.4 kg (0.9 lb) |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
