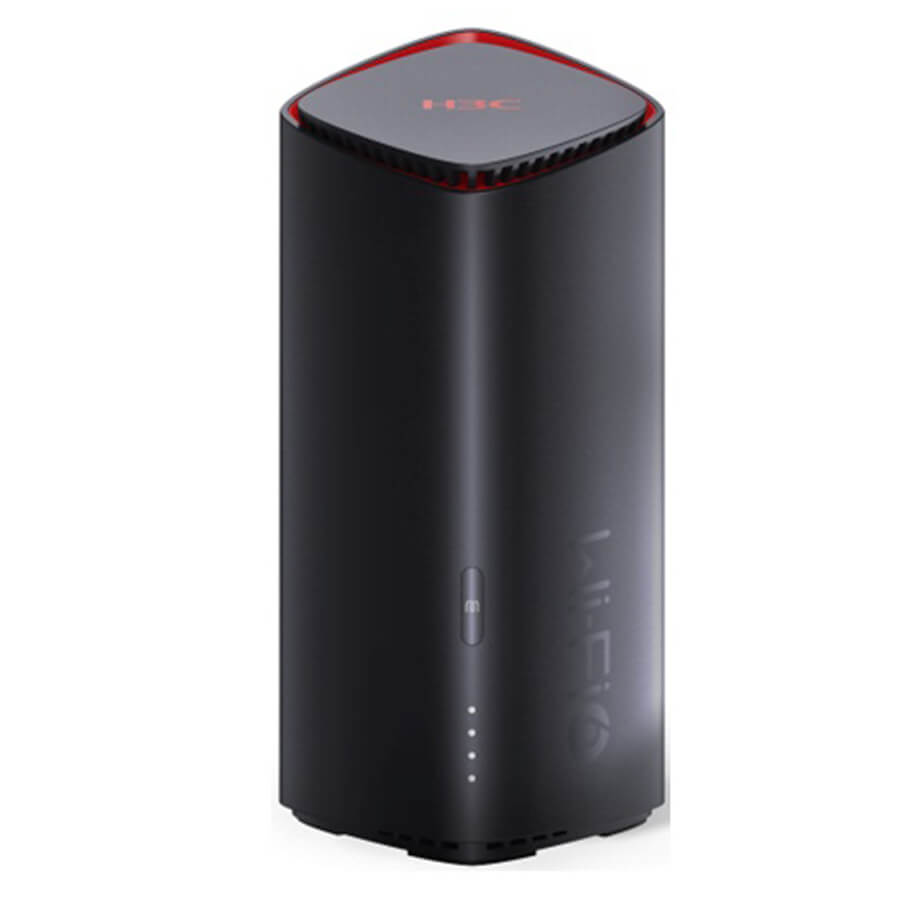

Dual-band Gigabit Wi-Fi 6 Router H3C Magic BX54
- Anten trong đa hướng, sử dụng 6 chip khuếch đại Skyworks cao cấp (cường độ tín hiệu +7dB, vùng phủ sóng +70%).
- Hỗ trợ 4 cổng 10/100/1000Base-T Ethernet.
- CPU: Dual-core 1.0GHz.
- Vùng phủ sóng: Lên đến 400m² (không vật cản).
- Tốc độ: 574Mbps (2.4GHz) và 4804Mbps (5GHz).
- Kết nối đến 640 thiết bị (khuyến nghị 160 thiết bị đồng thời).
- Kích thước (W × D × H): 95 x 95 x 226 mm.
Đặc tính kỹ thuật
| Hardware | |
| Fixed port | Four 10/100/1000Base-T Ethernet port Independent reset key, function keys (Mesh, wireless optimization) |
| Wireless | 4 built-in high gain omnidirectional antennas (2.4 GHz 3 dBi & 5 GHz dBi) |
| CPU | Dual-core 1.0 GHz |
| Memory | 512 MB |
| Indicator | Front LED: system status indicator Rear LED: 1 WAN port status indicator, 3 LAN port status indicators |
| Dimensions (W×D×H) | 95 x 95 x 226 mm |
| Power supply | 12V-2A |
| Cooling method | Natural cooling |
| Wireless | |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Spatial flow | 2.4 GHz 2x2 MIMO 5 GHz 4x4 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
| Wireless rate | Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps |
| Wireless roaming | Follow-up supporting of 11k/v |
| MU-MIMO | Upstream and downstream MU-MIMO |
| Software | |
| Internet connection | Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
| EasyMesh | Support |
| IPv6 | Support |
| Blind-mating port | Available upon software update |
| Security features | WPA-PSK/WPA2-PSK//WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
| Network management | Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS (NoIP, DynDNS), VPN (PPTP Client, L2TP Client) |
| Management method | Support H3C Magic App (iOS, Android), Web |
| Fault diagnosis | Link detection Internet diagnosis |
| Operating environment | |
| Operating temperature | 0ºC-40ºC |
| Storage humidity | 10%-90%, RH non-condensing |
- Bảo hành: 24 tháng.
