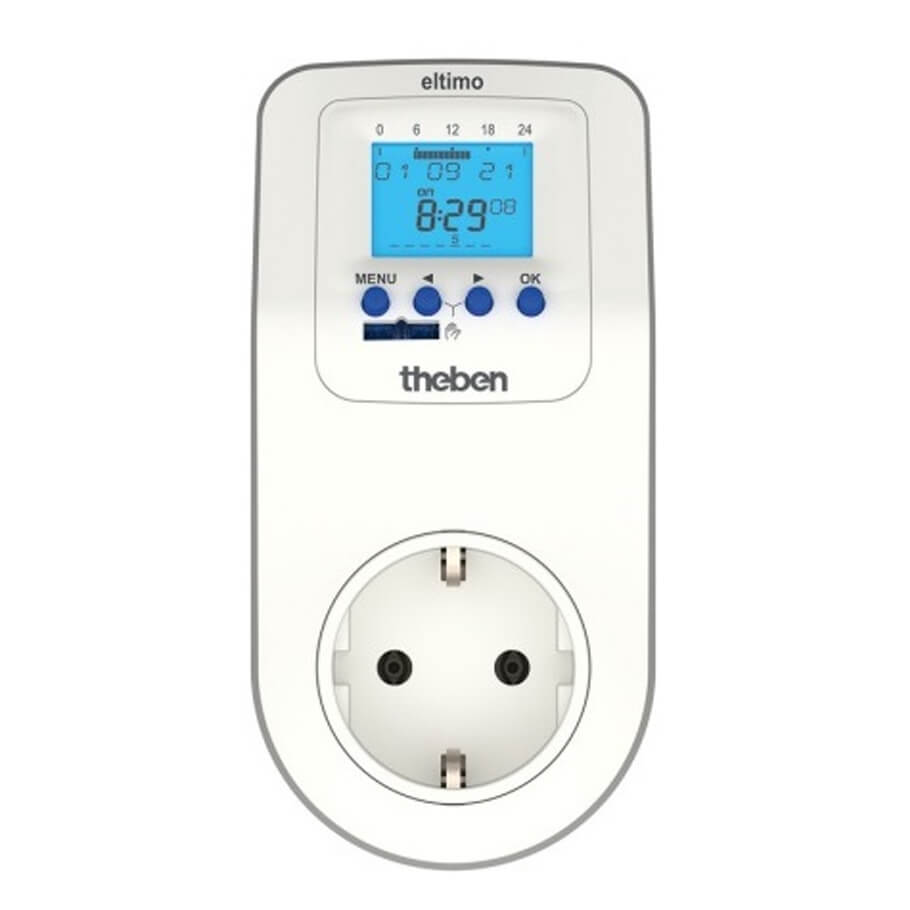

Digital Time Switch THEBEN theben-eltimo 020 top3
Part Number: 0200130
- Digital plug-in timer with weekly program.
- Programming by app possible.
- Safe transfer via optional Bluetooth Low Energy OBELISK top3.
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.
- Use with earthed sockets.
- 1 channel.
- Easy operation via keys for program function and day of the week, hours, minutes.
- ON-OFF switching times.
- Switching preselection.
- Permanent switching ON/OFF.
- Random program.
- Automatic summer/winter time changeover.
Đặc tính kỹ thuật
| Operating voltage | 230 V AC, +10 % / –15 % |
| Frequency | 50 Hz |
| Standby | 0,9 W |
| Max switching capacity | 16 A (at 250 V, cos ϕ = 1) |
| Switching capacity | 10 A (at 250 V, cos ϕ = 0,6) |
| Min. switching capacity | 10 mA/230 V AC |
| Shortest switching time | 1 min |
| Switching accuracy | accurate to the second |
| Protection rating | IP 20 in accordance with EN 60529 |
| Protection class | II (housing), I (plug system) in accordance with EN 60730-1 |
| Mode of operation | type 1 BSTU |
| Power reserve | 6 years at +20 °C (without Bluetooth OBELISK top3) |
| Time accuracy (typical) | ± 0,25 s/day (25 °C) |
| Glow lamp load | 2600 W |
| Halogen lamp load | 2600 W |
| Fluorescent lamp load: uncorrected/series corrected: parallel-corrected: |
2600 VA 600 VA (72 µF) |
| Compact fluorescent tubes (EVG) | 1100 W |
| LED lamps (< 2 W) | 30 W |
| LED lamps (> 2 W) | 300 W |
| Resistive switching load | 3680 W |
| Rated impulse withstand voltage | 2,5 kV |
| Pollution degree | 2 |
| Software class | A |
| Bluetooth OBELISK top3: - Protection rating: - Temperature: - Range: |
IP 40 -30 °C to +55 °C 15 m on open air test site |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
