0916 287 068 Công tắc hẹn giờ dạng cơ THEBEN SUL 188 hw
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Công tắc hẹn giờ dạng cơ THEBEN SUL 188 hw
Mã số:13145986

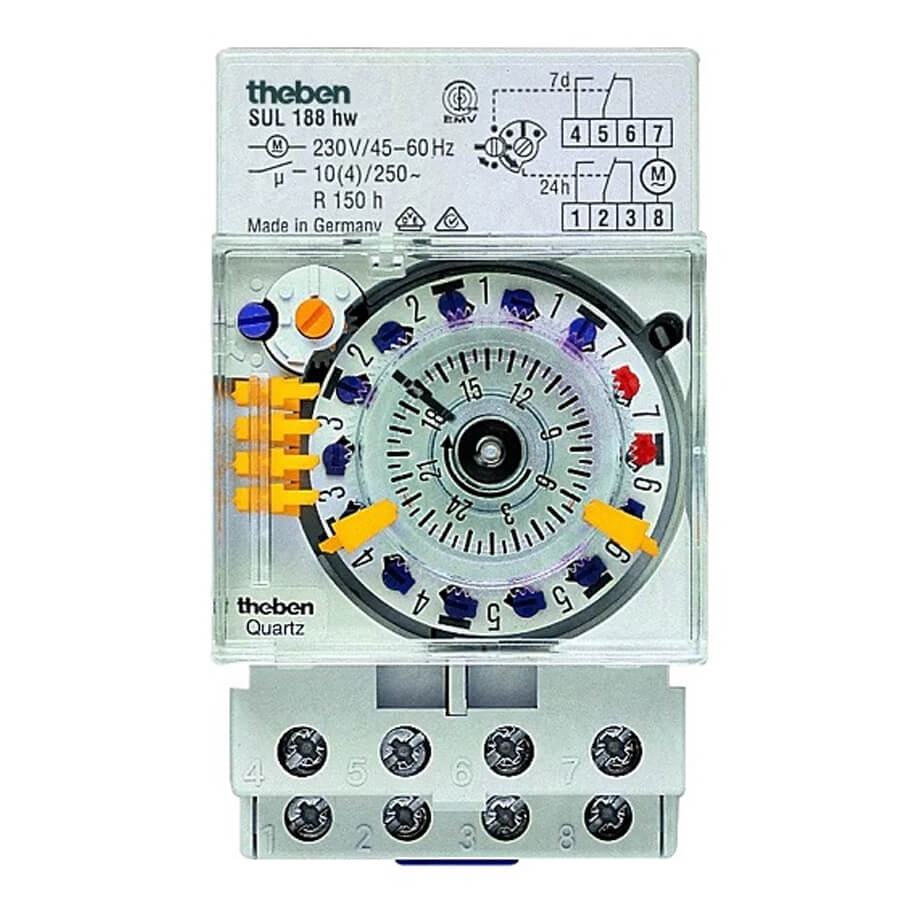

Công tắc hẹn giờ dạng cơ THEBEN SUL 188 hw
- Analogue time switch
- Daily/weekly program and 1/2 day OFF function for the weekdays
- 1 channel (with series connection of the 2 contacts)
- Tappets and turning segments
- Shortest switching time: 45 minutes (12 hours for the 1/2 day OFF function)
- 6 tappets included in delivery
- With power reserve (NiMH rechargeable battery)
- Quartz controlled
- Tappets
- Screw terminals
- Switching status display
- Operating indication
Specifications
| Model | SUL 188 hw |
| Operating voltage | 230 V AC |
| Frequency | 45 - 60 Hz |
| Number of channels | 1 |
| Width | 3 modules |
| Installation type | DIN rail |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 3 days |
| Switching capacity at 250 V AC, cos φ = 1 | 10A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 4A |
| Shortest switching times | 45 min, 12 h |
| Programmable every | 15 min, 12 h |
| Time accuracy at 25 °C | ≤ ± 1 s/day (quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Stand-by consumption | ~0.5 W |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -20°C ... 55°C |
- Bảo hành: 12 tháng.
Giá: 2.938.000 VND
