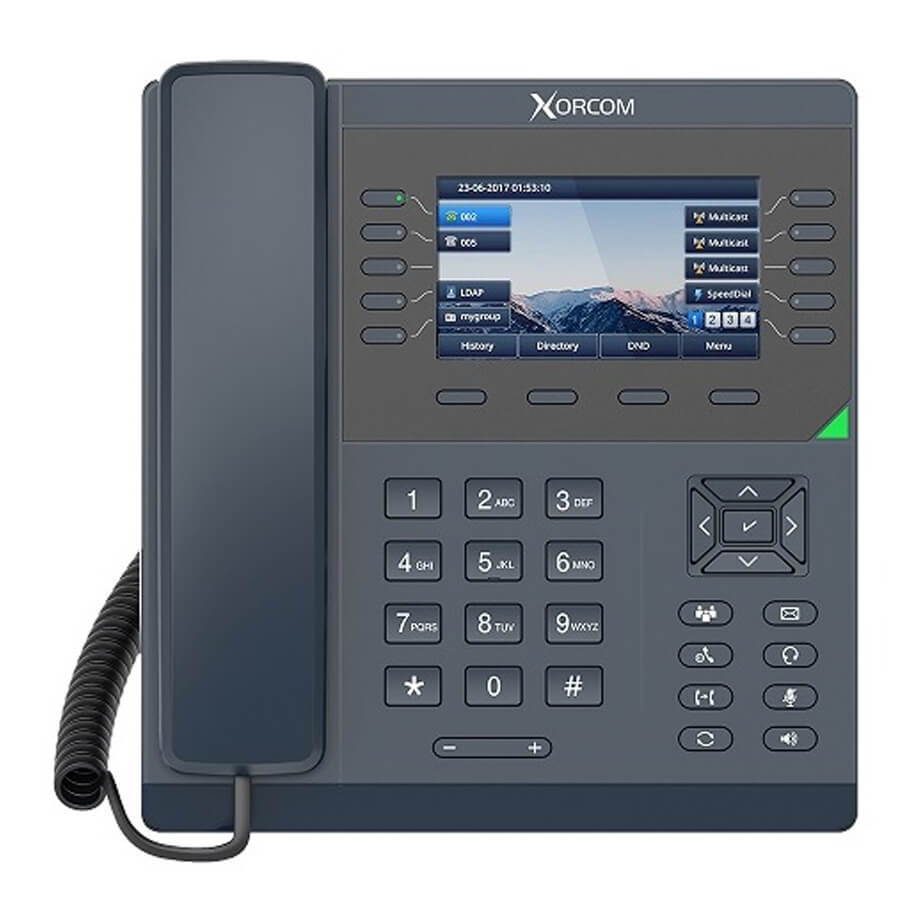

Điện thoại IP XORCOM UC507U
- XORCOM UC507U là dòng điện thoại IP hỗ trợ 16 tài khoản SIP, cùng với màn hình hiển thị TFT-LCD 4.3-inch 480×272 pixel.
- Điện thoại IP Xorcom UC507U mang đến chất lượng âm thanh HD vượt trội, giao diện đẹp, hoạt động bền bỉ, các tính năng điện thoại phong phú, tất cả các chức năng của phần mềm đều giống như các mẫu máy Xorcom khác.
- Tích hợp Bluetooth và WiFi.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| Phone Features | 16 SIP accounts Call hold, mute, DND One-touch speed dial, hotline Call forward, call waiting, call transfer Redial, call return, auto answer, direct IP call 5-way conferencing Group listening, SMS, emergency call Ring tone selection/provisioning Set date time automatically or manually Dial plan for each account RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) Action URL/URI USB port (2.0 compliant) for: USB call recording through USB flash drive USB storage(screen saver, wallpaper) USB headset |
| Audio Features | HD Voice: HD Speaker, HD Handset Codecs: iLBC, G.722, G.711(A/μ), Opus,G.723.1, G.729AB, G.726-32,G.722.1 DTMF: In-band, RFC 2833, SIP INFO Full-duplex hands-free speakerphone with AEC AEC, VAD, AGC, CNG, PLC, AJB |
| Directory | Local phonebook up to 10000 entriesXML/LDAP remote phonebook Intelligent search method Phonebook search/import/export Call history: dialed/received/missed/forwarded Black list |
| IP-PBX Features | Busy Lamp Field (BLF), bridged Line Appearance(BLA) Anonymous call, anonymous call rejection Hot-desking, voice mail Call park, call pickup Intercom, paging Music on hold Flexible seating Call recording |
| Display and Indicator | 4.3-inch 480×272-pixel color display with backlight 24 bit depth color LED for call and message waiting indication Dual-color(red or green) illuminated LEDs for line status information Wallpaper, multi-language selection Intuitive user interface with icons and soft keys Caller ID with name, number and photo |
| Feature keys | 10 line keys with LED 10 line keys can be programmed up to 36 Paperless DSS keys (4-page view) 8 feature keys: voice mail, headset, mute, Speaker, conference, hold, transfer, redial 4 context-sensitive soft keys 5 Navigation keys, volume control keys |
| WiFi/Bluetooth | - Built-in dual-band Wi-Fi: Network Standard: IEEE802.11a/b/g/n/ac Transmission Rate: Up to 433 Mbps Frequency Range: 2.4GHz/5GHz - Built-in Bluetooth: Bluetooth specification: V4.0+HSsystem Enhanced Data Rata (EDR) compliant for both 2Mbps and 3Mbps supported Bluetooth frequency range: 2.402GHz-2.480GHz Compatible with Bluetooth specification V4.0, backward Compatible with Bluetooth1.1 1.2 2.0 and 3.0 for wide-ranging use |
| Interface | Dual-port Gigabit Ethernet Power over Ethernet (IEEE 802.3af), class 3 1xRJ9 (4P4C) handset port 1xRJ9 (4P4C) headset port 1 x RJ12 (6P6C) EXT port Support EHS Support up to 6 Expansion Modules 1xUSB Port(2.0 compliant) |
| Physical Features | Stand with 2 adjustable angles Wall mountable External universal AC adapter : AC 100~240V input and DC 5V/1.2A output Power consumption (PSU): 2.0~4.6W Power consumption (PoE): 2.5~5.5W Operating humidity: 10~95% Operating temperature: -10~50°C |
| Management | Configuration: browser/LCD-Menu/auto-provision Auto provision via HTTP/HTTPS/FTP/TFTP Auto-provision with PnP Reset to factory, reboot Local tracing log export, system log Phone lock for personal privacy protection |
| Network and Security | SIP v1 (RFC2543), v2 (RFC3261) SIP server/proxy redundancy NAT Traversal: STUN mode IP assignment: static/DHCP HTTP/HTTPS web server Time and date synchronization using SNTP DNS-NAPTR/DNS-SRV(RFC 3263) QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP Transport Layer Security(TLS1.2), SRTP, ZRTP HTTPS certificate manager AES encryption for configuration file Digest authentication using MD5/MD5-sess IEEE802.1X/OpenVPN IPv4/IPv6, LLDP/CDP/DHCP VLAN |
- Xuất xứ tại Israel.
- Bảo hành: 12 tháng.
