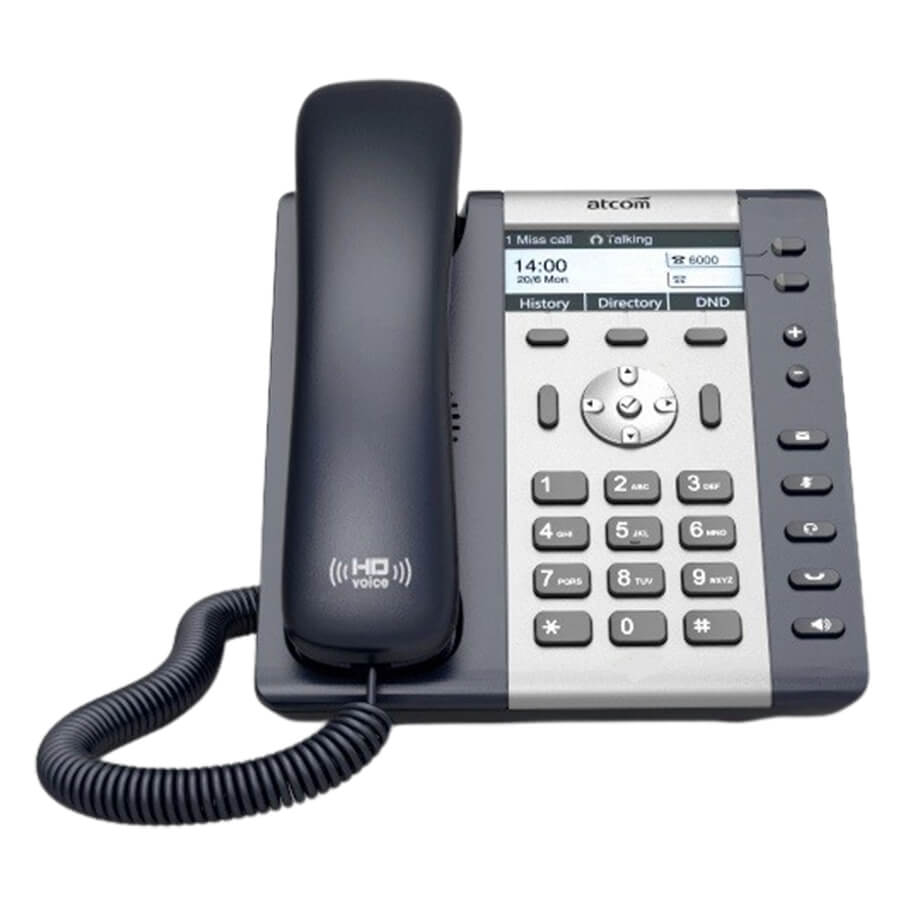

Điện thoại IP Wifi Atcom A20WAC
-Điện thoại IP sử dụng 6 tài khoản SIP.
-Hiển thị màn hình LCD.
-Chức năng không dây Wifi 2.4GHz và 5GHz.
-Hỗ trợ cổng Gigabit Ethernet.
-Hỗ trợ đàm thoại hội nghị 5 bên.
-A20WAC designed by 'visual operation, Simple button, rich features, HD voice, exquisite details, innovative appearance', is a high-end 6 SIP account entry-level business phone specifically for office staffs.
-It incorporates full view black&white graphic lattice screen, support Wi-Fi access and dual-port Ethernet. Its '3W high-power loudspeaker hands-free, 5- party conference, higher level of ZRTP encryption and innovative appearance' are highlight advantages in Entry-level IP Phone.
-A20WAC supports 802.11AC protocol, 2.4G+5G dual band, integrate two 5DB high gain antennas.
Đặc tính kỹ thuật
| Basic functions | 132 x 58 graphic lattice LCD, 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute, DND, Local 5-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 entries), Direct IP call without SIP proxy, Black list, Dialed/Received/Missed/Forward call (total 400), Call Center Headsets mode,support EHS headset |
| Quick to use features | 14 Programmable keys; One key reach to the menu; One key to read phone information; BLF quick setting; Support phone book intelligent search; Dial assistant |
| IP PBX Features | Supports Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish ,Hebrew |
| Advanced Features | Multicast, LDAP address book, XML remote address book, Action UR |
| Audio Features | 10 (built-in+customized) ring tones, 8 levels adjustable volume + mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC |
| Network Features | IPv4 & IPv6, VLAN, LLDP, OpenVPN, IEEE802.1X, STUN Intranet penetration,Rport; SIP connection mode: proxy mode, P2P direct mode, DNS SRV(RFC3263), 3 DTMF modes: In-band, RFC2833, SIP INFO; Built-in HTTP / HTTPS web server, LAN / PC: bridging mode, web capture function, PC port capture package function, Syslog |
| WiFi Features | IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS.IEEE802.11i (WPA, WPA2) authentication,WPA/WPA2-Enterprise 802.1X EAP-PEAP, A20WAC support 2.4G and 5G based on 802.11Ac |
| Security | TLS, HTTPS, SRTP protocol (RFC3711), ZRTP(special version), support 'Accept trusted server only', support information verification mechanism MD5/MD5-SESS, support AES encryption algorithm (profile encryption), support four level phone lock, administrator/user hierarchic pattern |
| Configuration | Plug and Play Configuration: implemented base on server, manual configurate: local WEB page configuration, LCD user interface configuration |
| Batch deployment | HTTPS / HTTP / FTP / TFTP / RPS / PnP / DHCP Option 66, TR069, WEB import and export configuration templates, configuration file batch generation tool, periodic testing and updating |
| Physical | Power Interface: DC 5V-1A, PoE power supply: IEEE 802.3af Class 2 2x RJ45 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack. 1 status indicator, 2 line keys, 3 soft keys, 5 navigation keys, 2 volume keys, 7 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free) |
| Certifications | CE: EN60950,EN50332,EN300328 V1.9.1 FCC: Part15, Part 15.247 |
-Sản xuất tại Trung Quốc.
-Bảo hành: 12 tháng.
