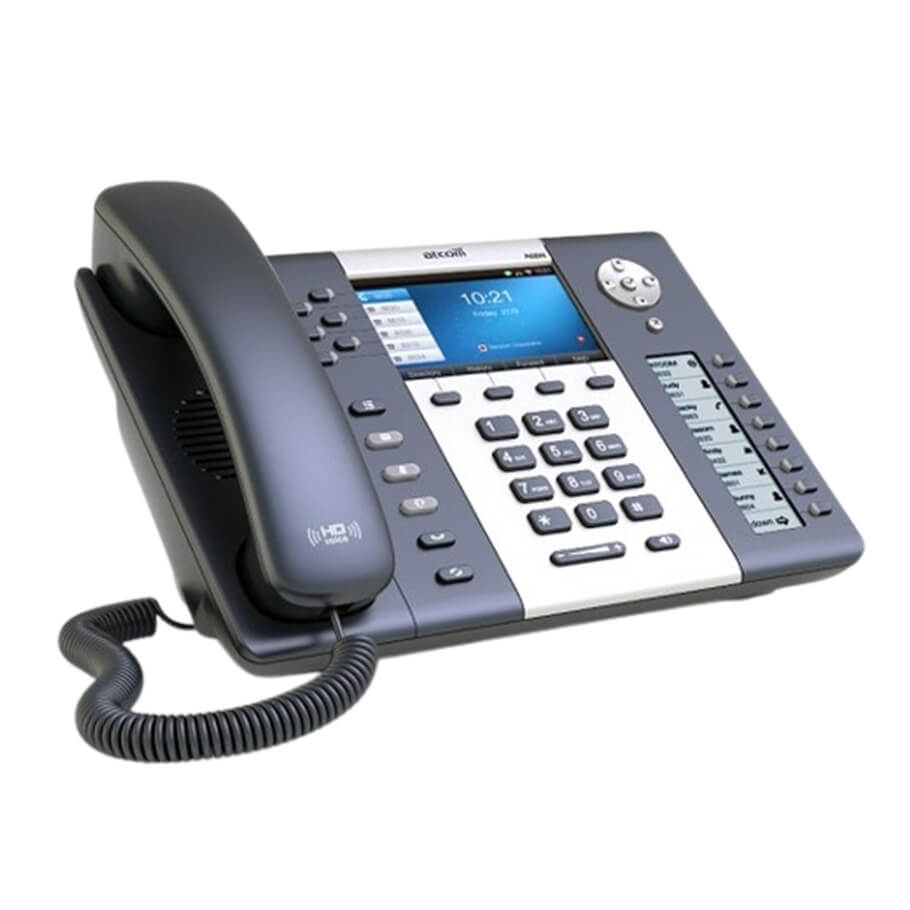

Điện thoại IP Atcom A68LTE
- 2 màn hình LCD: Màn hình chính 4.3 inch màu + màn hình LCD phụ.
- 32 tài khoản SIP.
- Giao tiếp mạng di động, công nghệ 2.5G/3G/4G LTE theo chuẩn quốc tế.
- 2 cổng mạng Gigabit, hỗ trợ PoE.
- Đàm thoại hội nghị 9 bên.
- Loa ngoài công suất lớn 3W.
Đặc tính kỹ thuật
| Model | A68LTE |
| Basic functions | 4.3-inch TFT LCD, 480x272 Pixel, 32 SIP accounts. Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Redial, Mute, DND, Local 9-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 ), Direct IP call without SIP proxy, Black list, Dialed/ Received/ Missed/ Forwarded call (400 total), Call Center Headsets mode, support color extended AET, EHS headset(Jabra, Sennheiser, Plantronics) |
| Shortcut functions | 38 programmable keys, one key to arrive menu, one key to read the phone information, BLF quick set, Intelligent search for phonebook, dial assistant |
| IP PBX Features | Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording |
| Mult-language | English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Traditional Chinese, Polish, Turkish, Hebrew |
| Advanced Features | LDAP, XML remote phonebook, Action URL, Active URI, CSTA, Muticast paging |
| Audio Features | 10 (own ring tone+custom ring tone) article, 8 volume adjustable + Mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC |
| Network Features | IPv4&IPv6, VlAN, LLDP, CDP, OpenVPN, IEEE 802.1X, STUN NAT Traversal, RPORT. Support Qos(IEEE802.1Q/p VLAN tagging) and layer 3 QoS(ToS,DiffServ,MPLS). SIP connection mode: Proxy mode, Peer to Peer. Support DNS SRV (RFC3263). DTMF: In-band, RFC2833, SIP INFO. HTTP/HTTPS web server. LAN/PC: support bridge mode, Support auto negotiation, Package tracing via PC port. Package tracing export by web. Support DHCP Option12 host name and Option 60 Vendor Class ID. Support syslog |
| 4G (LTE)/3G Features | Support all the 4G(LTE) and 3G standard, But notice that different country might need different module parts |
| Security | TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration files, Phone lock, the administrator/ user level access control |
| Management | Configurable through web interface/ phone |
| Auto provision | FTP/ TFTP/ HTTP/ HTTPS, DHCP Option 66 or custom Option 128~254, PnP, Remote Provision Service(RPS), TR069, Import/Export CFG file via web, Generate multiple configuration files via tool, Periodic check and update |
| Physical | Power Interface: DC 5V-2A, PoE power supply: IEEE 802.3af Class 2. 2x RJ45 10/100M or 100/ 1000M adaptive Ethernet ports, 1x RJ45 expanded port, 1x RJ9 headphone jack, 1x RJ9 handset jack |
| Keys Features | 1 status indicator, 4 line keys, 4 soft keys, 5 navigation keys, 1 volume key, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, hands-free), 8 BLF keys |
| Temperature and Humidity | Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90% |
| Package | Qty/CTN: 10PCS, G.W/CTN: 16KG, Giftbox size: 290 mm (L) 200 mm (W) x 120 mm (H) Carton Meas: 615mm (L) x 405mm (W) x 310mm (H) |
| Certifications | CE: EN60950, EN50332, EN300328 V1.9.1 FCC: Part15, Part15.247 |
| PBX Compatibility | Broadsoft Asterisk Elastix Trixbox Freeswitch Huawei Avaya Mitel Unify ZTE Epygi |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
