Điện thoại IP Fanvil X301
Trang Chủ >>
Điện thoại IP >> Điện thoại IP Fanvil >> Điện thoại IP Fanvil X301
Mã số:05183995

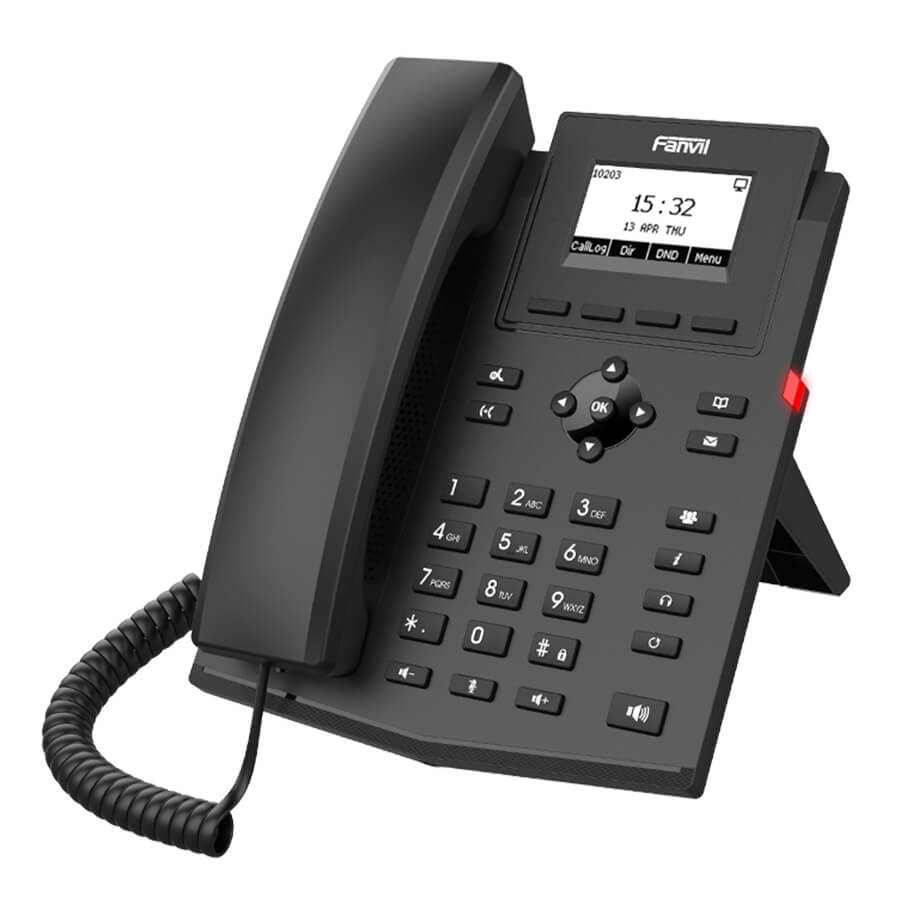

Điện thoại IP Fanvil X301
- Fanvil X301 là dòng điện thoại IP màn hình ma trận điểm 128 x 48 pixel 2.3-inch, hỗ trợ 2 tài khoản SIP.
- Hỗ trợ tính năng SIP hotspot.
- Hỗ trợ 2 jack RJ45, jack cắm tai nghe RJ9.
- Âm thanh HD.
- Danh bạ lưu 1000 số, nhật ký (In/Out/Missed) 600.
- Hỗ trợ G.711a/u, G.726-32K, G.729A, iLBC, G.722, Opus.
- Tích hợp quản lý Cloud.
Đặc tính kỹ thuật
Generic | - 2 SIP Lines - HD Voice - Dot-matrix display screen - Handset/ Hands-free/ Headset mode - Desktop Stand/ Wall mountable (optional) - Optional External Power Supply |
Phone Functions | - Local Phonebook (1000 entries) - Remote Phonebook (XML/LDAP, 1000 entries) - Call logs (In/Out/Missed, 600 entries) - Blocked List/Allowed List - Voice Message Waiting Indication (VMWI) - Programmable DSS/Soft keys - Network Time Synchronization - Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) - Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) - Support Recording (Through Server) - Action URL / Active URI - uaCSTA |
Call Functions | - Call out/Answer/Reject - Mute/ Unmute (Microphone) - Call Hold/ Resume - Call Waiting - Intercom - Caller ID Display - Speed Dial - Anonymous Call (Hide Caller ID) - Call Forward(Always/Busy/No Answer) - Call Transfer (Attended/Unattended) - Call Parking/Pick-up (Depending on server) - Redial - Do-Not-Disturb - Auto-Answering - Voice Message (with server) - 6-way Conference - Hot Line - Hot desking |
Audio | - HD Voice Microphone/Speaker - Wideband ADC/DAC 16KHz Sampling - Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC - Wideband Codec: G.722, Opus - Full-duplex Acoustic Echo Canceller (AEC) - Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE)/ Noise Reduction (NR)/ Automatic Gain Control (AGC) - Packet Loss Concealment (PLC) - Dynamic Adaptive Jitter Buffer - DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO) - VQM voice quality monitoring |
Network | - Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass - IP Mode: IPv4/IPv6 - IP Configuration: Static IP / DHCP / PPPoE - Network Access Control: 802.1x - VPN: L2TP / OpenVPN - VLAN - LLDP - QoS - RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
Protocols | - SIP2.0 over UDP/TCP/TLS - RTP/RTCP/SRTP - STUN - DHCP - IPV6 - LLDP - PPPoE - 802.1x l L2TP - OpenVPN - SNTP - FTP/TFTP - HTTP/HTTPS - TR-069 - AES128 & AES256 |
Deployment & Management | - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 - Web Management Portal - Web-based Packet Dump - Configuration Export / Import - Phonebook Import/Export - Firmware Upgrade - Syslog |
Physical Specifications | - LCD: 128x48 pixel graphical LCD with backlight - Keypad: 33 keys, including + 4 Soft-keys + 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook/MWI/Headset/Redial/Hands-free) + 4 Navigation keys + 1 OK key + 12 Standard Phone Digits keys + 3 Volume Control keys (Up/Down/Mute (Microphone)) - Handset (RJ9) x1 - Standard RJ9 Handset Wire x1 - 1.5M CAT.5E Ethernet Cable x1 - Desktop Stand x1 - Status Indicator Light x1 (Red) - RJ9 Port x2: Handset x1, Headset x1 - RJ45 Port x2: Network x1, PC x1 (Bridged to Network) - Security Slot x1 - DC Power Input: 5V/0.6A - Power Consumption(Adapter): 0.8~1.29W - Power Consumption(PoE): 1.25~1.86W - Working Temperature: 0~45℃ - Working Humidity: 10~95% - Installation: + Desktop Stand + Wall mountable (optional) - Wall mountable (optional ) - Color: Black |
- Bảo hành: 24 tháng.
Giá: 876.000 VND
