Đầu ghi hình camera IP 16 kênh Hanwha Vision QRN-1630S

Trang Chủ >> Camera quan sát >> Đầu ghi hình Hanwha Vision >> Đầu ghi hình camera IP 16 kênh Hanwha Vision QRN-1630S
Mã số:02200394

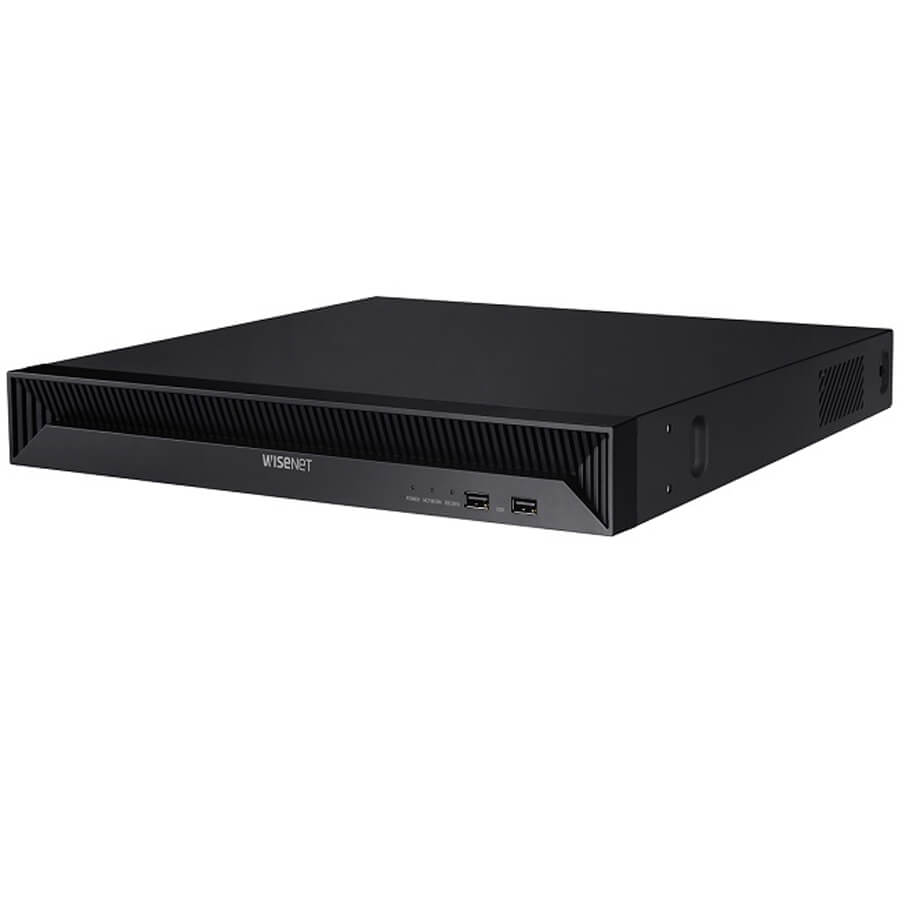

Đầu ghi hình camera IP 16 kênh Hanwha Vision QRN-1630S

Đầu ghi hình camera IP 16 kênh Hanwha Vision QRN-1630S

- Up to 16CH, 8MP camera IP supported

- H.265, H.264, MJPEG codec

- 128Mbps network camera recording

- Plug & play by 16 PoE (LAN, 10/100), 1 PoE (WAN, 1Gbps)

- SATA 2ea (up to 20TB)

- ARB supported

- P2P service (QR code connect) supported

Specifications

Display
Network camera Inputs Max. 16CH
Resolution 12MP ~ CIF
Protocols SUNAPI, ONVIF
Decoding Local Display HDMI1: 3840x2160 (30Hz), HDMI2: 1920x1080 (60Hz)
Multi Screen Display Clone Mode: Dynamic layout
Expand Mode: HDMI1 Dynamic layout, HDMI2 up to 16 Div.
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution [Local Monitor]
8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps)
Performance
Operating System Embedded Linux
Record Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 128Mbps
Resolution 8MP ~ CIF
Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
Search & Play Playback Bandwidth Max. 32Mbps
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 40CH(Local 16CH, Remote 8CH per user)
Fisheye Dewarping CMS
Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution CIF ~ 8MP
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage Supported HDD Up to 10TB
HDD Slot SATA 2ea(Max. 20TB)
Backup File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
Function Multi channel (Up to 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 128Mbps
Audio Input/Output 16CH (network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate (Hanwha Techwin Root CA), Signed firmware
Web viewer Supported OS Windows 10, macOS 11
Supported browser Google Chrome, Microsoft Edge, Mac Safari
Interface
Front Indicator Power, Record, Network
Storage OK
HDMI 2ea
Audio Out 1EA (RCA output)
Ethernet PoE RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps)
Alarm In 4EA, Out 2EA
USB 2EA(Front 2 x USB 2.0)
Power inlet AC 1EA
System
Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Keyboard, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
General
Operating Temperature 0°C to +40°C
Operating Humidity 20% ~ 85% RH
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption Max. 200W(682 BTU with 2HDD, PoE ON)
PoE Budget 130W
Color / Material Black / Metal
Dimension (WxHxD) 370.0 x 50.7 x 320 mm
Weight 2.87Kg

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi (Đã bao gồm VAT)
