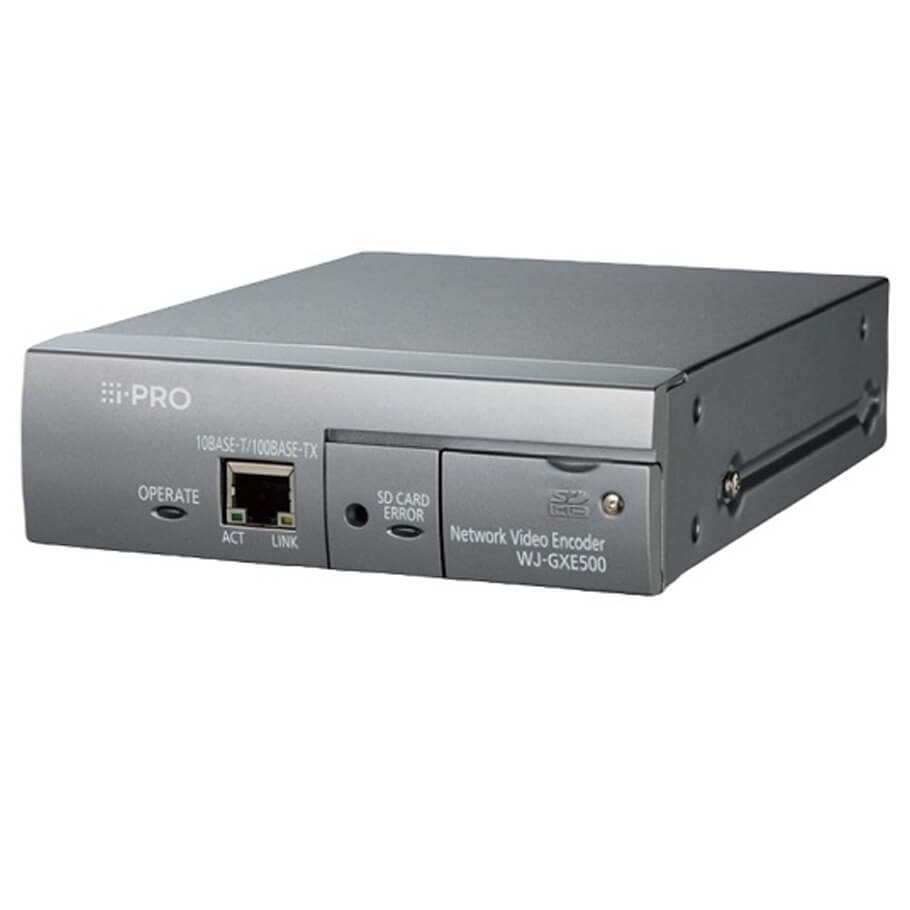

Đầu ghi hình 4 kênh I-PRO WJ-GXE500E
- Đầu ghi hình 4 kênh I-PRO WJ-GXE500E kết nối lên tới 4 camera tương tự.
- Truyền ảnh Full frame H.264 cho mỗi 4 kênh.
- Tương thích với tín hiệu ngõ ra: Xuất hình ra đồng thời H.264/MPEG-4 và JPEG với kích thước VGA.
- Âm thanh song hướng (1 kênh).
- Kích thước (WxHxD): 140 x 44 x 185 mm.
- Trọng lượng: 1.0kg.
Đặc tính kỹ thuật
| Model | WJ-GXE500E |
| Audio/Video IF | |
| Video Input | - NTSC: 4x 1.0V [p-p]/75Ω NTSC composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH - PAL: 4x 1.0V [p-p]/75Ω PAL composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH |
| Microphone/Line Input | MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable microphone: Plug-in power type) Supply voltage: 2.5V ±0.5V Input impedance: approx. 2kΩ |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level |
| Browser GUI | |
| Camera Control | Pan/ tilt/ zoom/ focus/ preset positions/ auto focus (When using Panasonic P/T/Z cameras) |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens (JPEG only). 20 characters camera title available. |
| Unit Title | Up to 20 characters |
| Camera Title (OSD) | Up to 16 characters On/Off |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window |
| Audio | - Mic (Line) Input: ON/OFF Volume adjustment: Low/Middle/High - Audio Output: ON/OFF Volume adjustment: Low/Middle/High |
| SD Memory Data Download | Still or motion images recorded in the SD/SDHC memory card can be downloaded |
| GUI/Setup Menu Language | NTSC: English, French (Installation required for French) |
| PAL: English, French, Italian, Spanish, German, Russian (Installation required except for English) | |
| System Log | Up to 100 (Internal), Up to 4,000 (SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 |
| Supported Browser | Windows® Internet Explorer® 10.0(32 bit), Windows® Internet Explorer® 9.0(32 bit), Windows® Internet Explorer® 8.0(32 bit), Windows® Internet Explorer® 7.0(32 bit), Microsoft® Internet Explorer® 6.0 SP3 |
| Network | |
| Network IF | 10Base-T/100Base-TX, RJ-45 connector |
| Image Resolution | NTSC - VGA mode: VGA (640 x 480)/QVGA (320 x 240) - D1 mode: D1 (720 x 480) |
| PAL - VGA mode: VGA (640 x 480)/QVGA (320 x 240) - D1 mode: D1 (720 x 576) |
|
| H.264/MPEG-4 | Transmission Mode: Constant bitrate / Framerate priority |
| Frame Rate - NTSC: 1/3/5/7.5/10/15/20/30 fps - PAL: 1/3.1/4.2/6.25/8.3/12.5/20/25 fps |
|
| Bit Rate/Client: 64/128/256/384/512/768/1.024/ 1.536/2.048/3.072/4.096 kbps/Unlimited | |
| Image Quality: Low/Normal/Fine | |
| Refresh Interval: 0.2/0.33/0.5/1/2/3/4/5s | |
| Transmission Type: UNICAST/MULTICAST | |
| JPEG | Image Quality: 10 steps |
| Refresh Interval - NTSC: 0.1fps ~ 30fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.) - PAL: 0.08fps ~ 25fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.) |
|
| Transmission Type: PULL/PUSH | |
| Audio Compression | G.726 (ADPCM), 32 kbps / 16 kbps, CH1 only. |
| Audio Mode | OFF/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Authentification for Audio | Level 1 only/ Level 2 higher/ All users |
| Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1.024/ 2.048/ 4.096/ 8.192 kbps/ Unlimited |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP |
| FTP Client | Periodic image transfer, Alarm image transfer (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDHC/SD Memory Card (Option) | Alarm REC/ Backup upon network failure/ Manual REC (JPEG only) Compatible SD (SDHC) card: Panasonic 256 MB, 512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card |
| Alarm | |
| Alarm Source | 3 terminal input, VMD, Command alarm, Camera site alarm, Video loss alarm |
| Alarm Action | SDHC/SD memory recording, E-mail notification, Alarm terminal output, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDHC/SD memory card: 5.000 logs, without SDHC/SD memory card: 1.000 logs |
| Input/Output | |
| Termina | Terminal 1: Alarm input, Terminal 2: Alarm input/Alarm output, Terminal 3: Alarm input/Alarm output/AUX output |
| RS-485 Port | 1x RS-485 (RJ-11, 4 wire / 2 wire, Full/Half duplex. Open command conversion table for other manufacturers' PTZ camera) |
| General | |
| Safety/EMC Standard | NTSC: UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) PAL: CE (EN55022, ClassB, EN55024) |
| Power Source and Power Consumption | 12 VDC: 500 mA, PoE (IEEE802.3af): 6 W (Class 0 device) |
| Ambient Operating Temperature | -10°C ~ +50°C (14°F ~ 122°F) |
| Ambient Operating Humidity | 90% or less (without condensation) |
| Dimensions | 140 mm (W) x 44 mm (H) x 185 mm (D) (excluding rubber feet and projections) |
| Mass (approx.) | 1.0 kg |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
