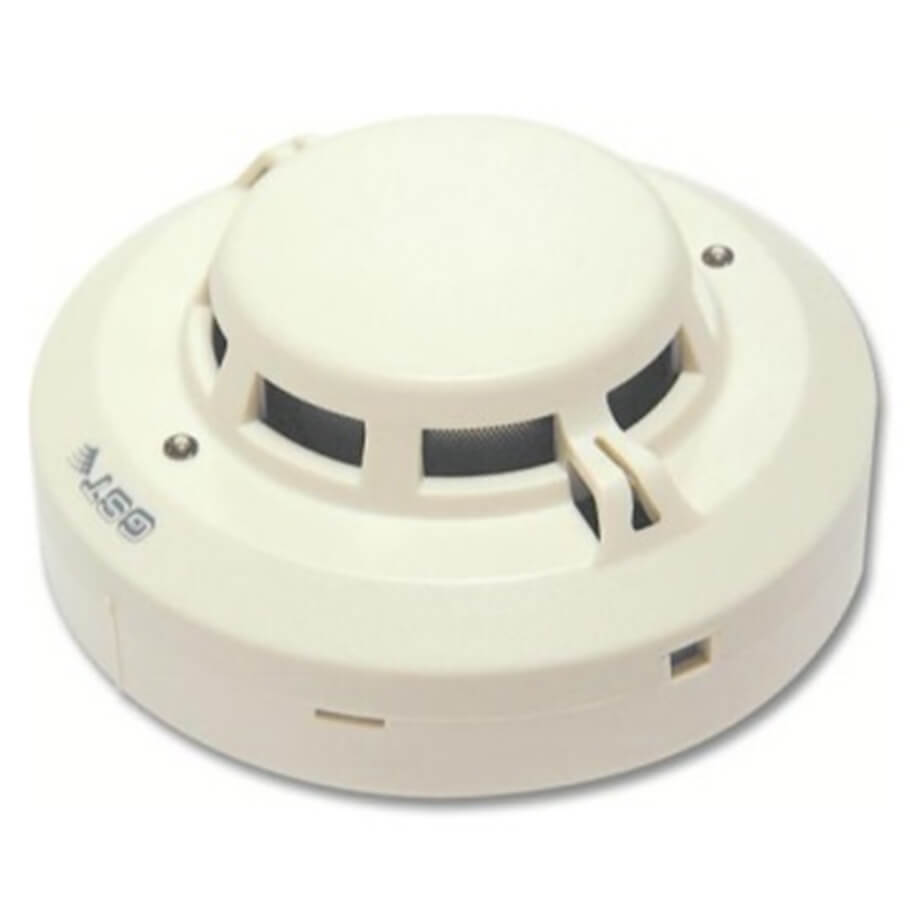

Đầu dò báo khói nhiệt kết hợp GST C-9101

Đầu dò báo khói nhiệt kết hợp GST C-9101

- C-9101 Conventional Combination Heat/Photoelectric Smoke Detector is consisted of smoke sensing and semi-conductor temperature sensing parts in processing and circuitry. Matching with P-9907 Active End of Line Unit (AEOL), it can be connected with conventional fire alarm control panel or intelligent fire alarm control panels through I-9319 Addressable Zone Monitor Unit to execute signal processing. This non-addressable detector has the advantages of both conventional photoelectric detector and rate of rise and fixed temperature heat detector. Just because of the combination technology of smoke detector and heat detector, it overcomes the non-sensitivity to dark smoke particles of ordinary scattering type photoelectric detectors. It can also pick up fire with obvious rise of temperature such as alcohol fire, thus extending the application range.

- Drift compensation to suit environment changing extensively.

- Integrated algorithm for analyzing fire, improving the sensitivity highly.

- Self-diagnostic.

- Removable innovative sensing chamber, easy for maintenance.

- Reporting dirt fault for contaminated chamber.

- Remote indicator output available.

- 3 levels sensitivities programmable; Level 1 complies with EN 54-7. Fix temperature or rate of rise programmable, rate of rise mode complies with EN 54-5.

Thông số kỹ thuật

- Bảo hành: 12 tháng.
