0916 287 068 Đầu beam 4 tia TAKEX PB-200HFA-KH
Trang Chủ >>
Báo cháy-Báo trộm >> Báo động TAKEX >> Đầu beam 4 tia TAKEX PB-200HFA-KH
Mã số:13305163

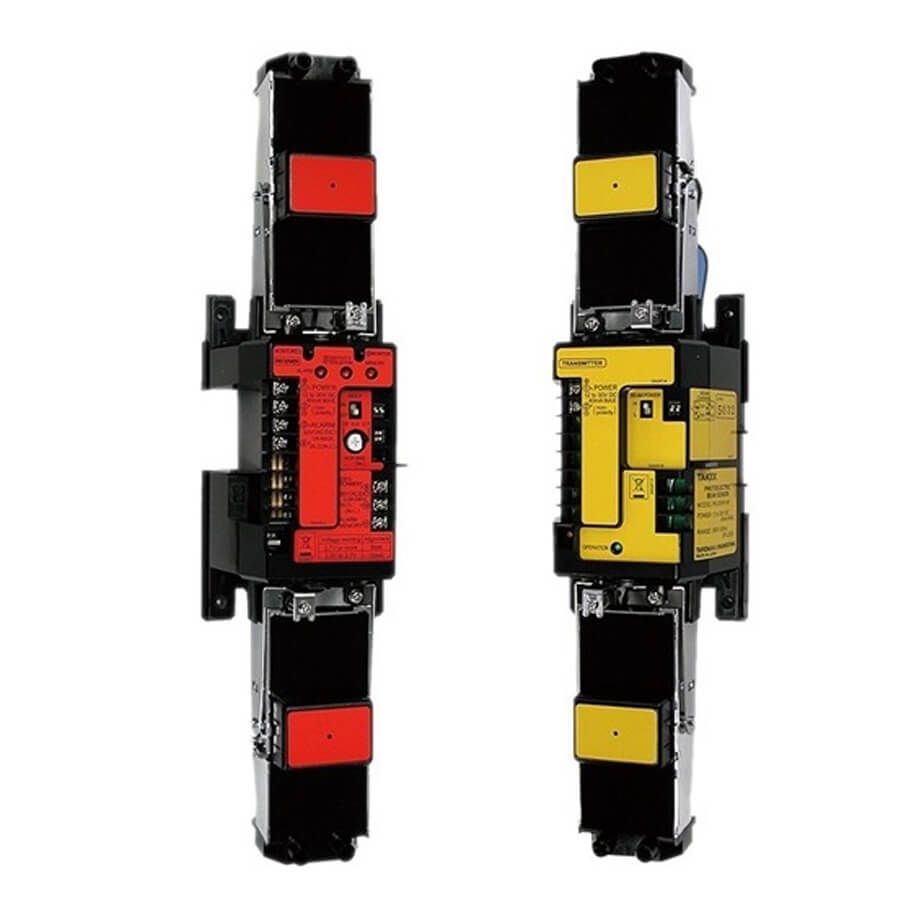

Đầu beam 4 tia TAKEX PB-200HFA-KH
- 4 x Synchronised high power beams
- Specifically designed for use in TA series Tower Enclosures
- Double coated electronics for demanding environments
- Supplied with “Quick fix” mounting brackets for easy adjustment
- 4 x Selectable beam channels to prevent crosstalk
- Environmental monitoring circuit
- Dynamic auto-gain lock (AGL)
- Vivid internal body stickers aid beam alignment procedure
- Double modulation for unsurpassed light immunity
- Auto-gain control (AGC)
- 50,000 lux sunlight immunity
Thông số kỹ thuật
| Model | PB-200HFA-KH |
| Type | Quad Beam |
| Detection distance | 660ft. (200m) or less |
| Max. arrival distance | 6600ft. (2000m) (tenfold margin distance) |
| Infrared beam | LED (pulsed beam by LED) Double modulation |
| Frequency Selection | 4 Channels |
| Detection system | Photoelectric beam |
| Response time | 0.05sec. to 0.7sec. (Variable at pot) |
| Alarm output | Dry contact relay output N.O. / N.C. Contact action: Interruption time + delay time (approx. 2sec.) Contact capacity: 30V (AC/DC) 1A |
| Environmental output | Dry contact relay output N.O. / N.C. Contact capacity: 30V (AC/DC) 0.5A |
| Supply voltage | 12 to 30V DC |
| Current consumption | When alarmed 85mA or less ・Transmitter: 40mA or less ・Receiver: 45mA or less When adjusted 120mA or less |
| Functions | Alignment tone switch, Attenuation LED, Monitor jack, Alarm memory function Four channel frequency selection. Environmental check, Automatic gain control (AGC) circuit |
| Mounting position | Inside TA series Beam Towers |
| Weight | Transmitter 10.6oz (300g) Receiver 14.1oz (400g) |
- Bảo hành: 12 tháng.
Giá: 5.668.000 VND
(Đã bao gồm VAT)
