0916 287 068 Cảm biến lửa TAKEX FP-5500E
Trang Chủ >>
Báo cháy-Báo trộm >> Báo động TAKEX >> Cảm biến lửa TAKEX FP-5500E
Mã số:13309655

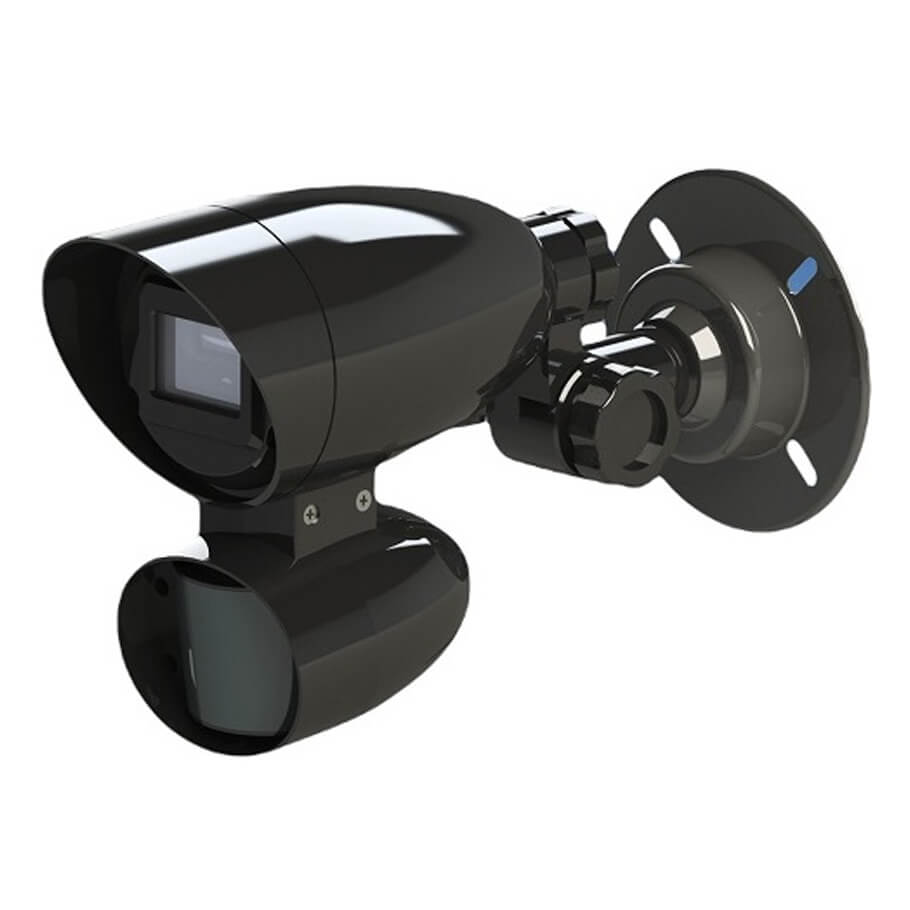

Cảm biến lửa TAKEX FP-5500E
- Cảm biến ngọn lửa UV có độ nhạy cao + PIR xâm nhập góc rộng.
- Hai chế độ đầu ra: AND/OR.
- Hoạt động đầu ra cưỡng chế khi phát hiện ngọn lửa liên tục.
- Điều chỉnh độ nhạy.
- Chức năng ghi nhớ báo động.
- Bộ phát hiện hẹn giờ.
Thông số kỹ thuật
| Flame sensor | |
| Detection system | Ultraviolet rays (Detection wave length 185 to 260nm) |
| Detection distance | 15m: 15cm flame on 4cm square pan in front 10m: 7cm lighter flame in front |
| Detection area angle | Approx. 120° conically |
| Detection setting | Detection timer: 4steps (1sec, 3sec, 6sec, 15sec) Detection sensitivity: (H [100%], L [50%]) *Selectable only in 'AND' mode (Fixed to H [100%] in 'AND' mode |
| Alarm LED (RED) | Inside front window - Lighting at alarm (Detection time + off delay. Approx. 2 sec.) *Blinking (3 min)/Lighting (47 min) at memory |
| Passive sensor | |
| Detection system | Passive infrared |
| Detection area angle | Wide Angle 15m Max |
| Sensitivity setting | 4 steps (100%, 80%, 50%, 20%) |
| Alarm LED (RED) | Inside front window - Lighting at alarm (Detection time + off delay. Approx. 2 sec.) *Blinking (3 min)/Lighting (47 min) at memory |
| Alarm output | |
| Contact operation | - AND mode + When flame sensor detects twice within set “AND” timer, (Detection time after 2nd detection + o delay. Approx. 2 sec.) or + When flame sensor detects for “Flame duration time” (Detection time after 30/60 sec + o delay. Approx. 2 sec.) - Individual mode + When flame sensor detects (Detection time + off delay. Approx. 2 sec.) |
| Contact method | Dry contact relay (Semi-Conductor) (N.C./N.O. selectable) |
| Contact capacity | 30V (AC/DC) 0.25A Max. (resistive load) |
| Alarm output | |
| Contact operation | AND mode + When both flame and passive sensor detect within set “AND” timer (Detection time (2 sec Min.) Individual mode + When passive sensor detects (One shot. Approx. 2 sec) |
| Contact method | Dry contact relay (Semi-Conductor) (N.C./N.O. selectable) |
| Contact capacity | 30V (AC/DC) 0.25A Max. (resistive load) |
| General | |
| Power supply | 10V to 30VDC (non-polarity) |
| Power consunmption | 25mA Max. |
| Alarm memory | Reset after blinking (3 min) and lighting (47 min) (Operative individually with flame and passive sensors) * No indication when Alarm LED is off |
| Ambient temperature range | -20°C to + 50°C (-4°F to + 122°F) without condensation and freeze |
| Mounting position | Indoor/outdoor (IP43) |
| Connections | Lead wire (Cord length: 0.5m) (6 cores: 2×power, 4×alarm) |
| Weight | Approx. 550g (including flange) |
| Appearance | Body: Resin (Black) |
- Bảo hành: 12 tháng.
Giá: 7.254.000 VND
(Đã bao gồm VAT)
