0916 287 068 Công tắc hẹn giờ kỹ thuật số THEBEN TR 636 top2
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Công tắc hẹn giờ kỹ thuật số THEBEN TR 636 top2
Mã số:13145861

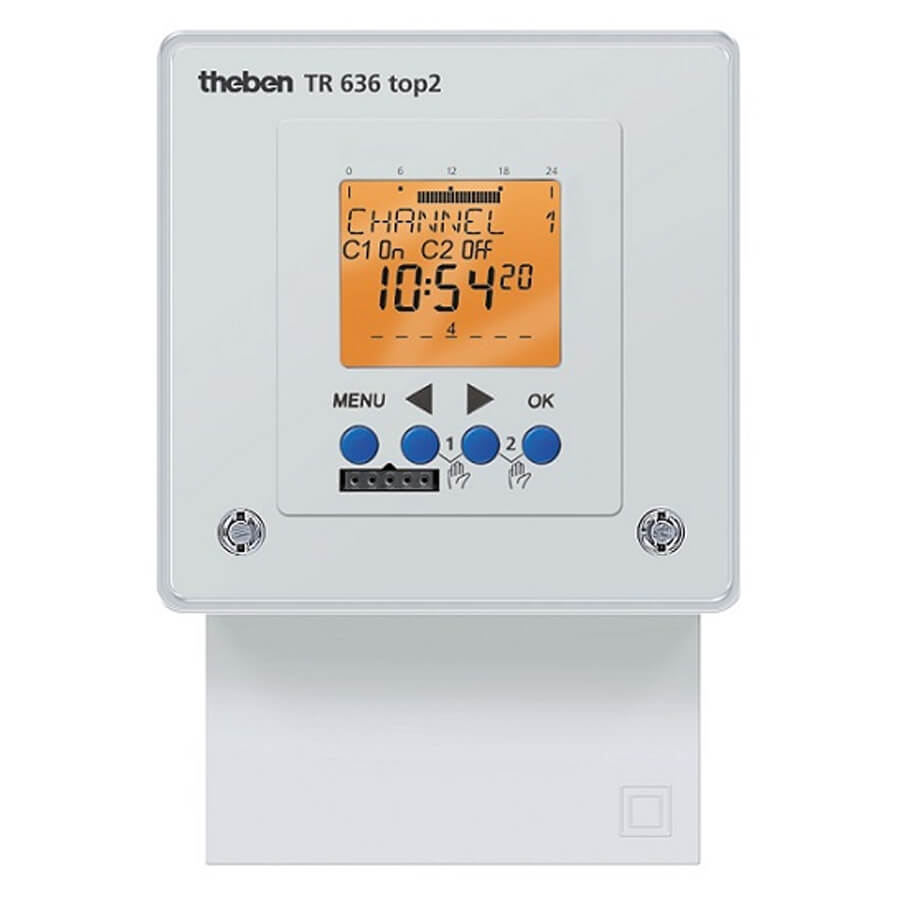

Công tắc hẹn giờ kỹ thuật số THEBEN TR 636 top2
- Digital time switch with weekly program
- 2 channels
- Text-based operator guidance in the display
- Preset date and time
- fully operable without mains connection
- 84 memory locations
- Interface for OBELISK top2 memory card (PC programming)
- 2. insertable switching program
- Copying programs
- Storing programs
Specifications
| Operating voltage | 230 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Installation type | Front panel installation/wall installation |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm (µ) |
| Program | Weekly program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 2 |
| Number of memory locations | 84 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ = 1 | 6A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 6A |
| Incandescent/halogen lamp load | 1200 W |
| Energy saving lamps | 90 W |
| LED lamp < 2 W | 20 W |
| LED lamp 2-8 W | 50 W |
| Fluorescent lamp load (conventional) not corrected | 1000 VA |
| Fluorescent lamp load (conventional) series-corrected | 1000 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 400 VA 42 µF |
| Shortest switching times | 1 s |
| Time accuracy at 25 °C | ≤ ± 0.5 s/day (quartz) at 25 °C |
| Time basis | Quartz |
| Stand-by consumption | ~1.1 W |
| Type of connection | Screw terminals |
| Display | LCD-Anzeige mit Textzeile |
| Keyboards | 4 touch buttons, 1 reset button |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 230 V AC |
| Ambient temperature | -30°C ... 55°C |
- Bảo hành: 12 tháng.
Giá: 4.160.000 VND
