0916 287 068 Extention module THEBEN EM 4 top2
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Extention module THEBEN EM 4 top2
Mã số:13147478

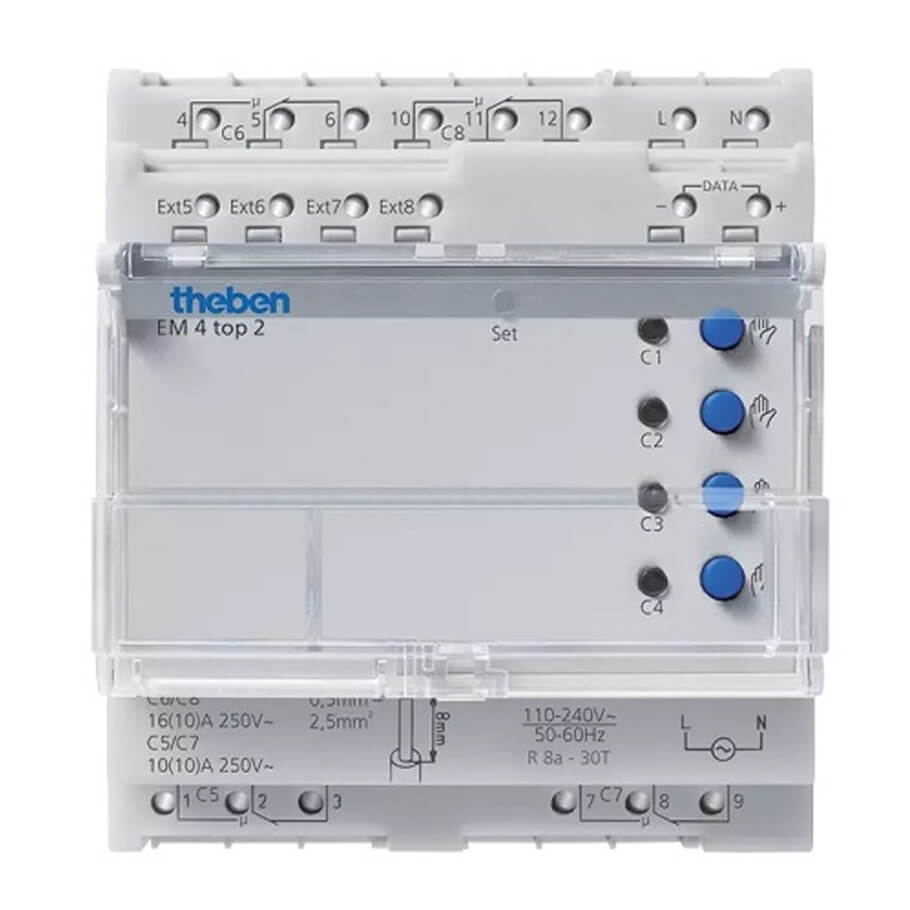

Extention module THEBEN EM 4 top2
- Extension module for TR 641 top2 RC, TR 642 top2 RC and TR 644 top2 RC
- 4 channels
- Width: 4 modules
- DuoFix spring terminals
- 4 external inputs
- Switching preselection
- Permanent ON/OFF switching
- 4 LEDs for displaying switching status
- Zero-cross switching for relay-saving switching and high lamp loads
Thông số kỹ thuật
| Operating voltage | 110 - 240 V AC |
| Frequency | 50 - 60 Hz |
| Width | 4 modules |
| Installation type | DIN rail |
| Type of contact | Two-way switch |
| Switching output | Phase-independent |
| Opening width | < 3 mm |
| Program | Yearly program |
| Number of channels | 4 |
| External inputs | 4 |
| Switching capacity at 250 V AC, cos φ = 1 | 16A |
| Switching capacity channels 1+3 | 10A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 10A |
| Incandescent/halogen lamp load | 2300 W |
| Incandescent/halogen lamp load 120 V | 1150 W |
| Energy saving lamps | 22 x 7 W, 18 x 11 W |
| Energy saving lamps 120 V | 11 x 7 W, 9 x 11 W |
| Switching capacity min. | ca. 10 mA |
| Stand-by consumption | ~1.5 W |
| Capacity loss max. | 4.8 W |
| Type of connection | DuoFix spring terminals |
| Keyboards | 4 buttons for manual switching |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 110-240 V AC |
| Ambient temperature | -30°C ... 55°C |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
