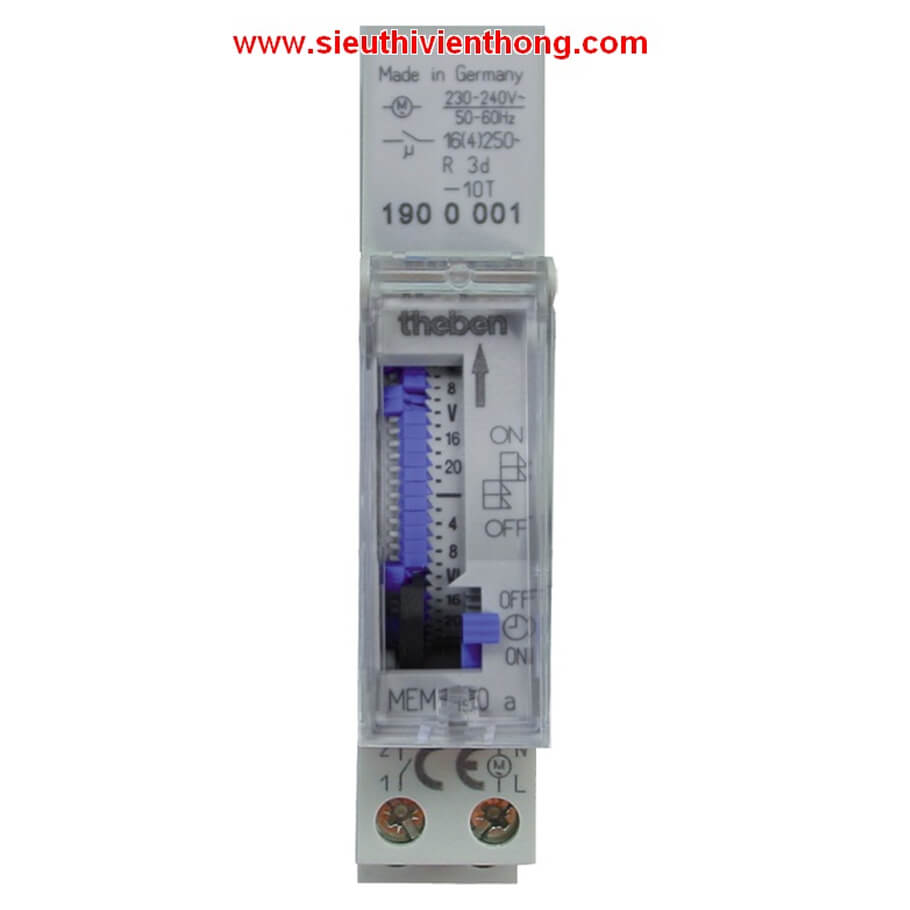

Công tắc hẹn giờ dạng cơ THEBEN MEM 190 a
- Analogue time switch
- 1 channel
- Weekly program
- With power reserve (exchangeable NiMH rechargeable battery)
- 84 switching segments
- Quartz controlled
- Shortest switching time: 2 hours
- Screw terminals
- Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
- Switching status display
Specifications
|
Operating voltage |
230-240 V AC |
|
Frequency |
50-60 Hz |
|
Number of channels |
1 |
|
Program |
Weekly program |
|
Width |
1 modules |
|
Installation type |
DIN rail |
|
Type of connection |
Screw terminals |
|
Drive |
Quartz-controlled stepper motor |
|
Program |
Weekly program |
|
Power reserve |
3 days |
|
Switching capacity at 250 V AC, cos φ = 1 |
16 A |
|
Switching capacity at 250 V AC, cos φ = 0,6 |
4:00 AM |
|
Incandescent/halogen lamp load |
1000 W |
|
Shortest switching times |
2 h |
|
Programmable every |
2 h |
|
Time accuracy |
≤ ± 1s/day (quartz) |
|
Type of contact |
NO contact |
|
Switching output |
Potential-free and phase-independent |
|
Number of switching segments |
84 |
|
Stand-by consumption |
0,5 W |
|
Test approval |
VDE |
|
Housing and insulation material |
High-temperature resistant, self-extinguishing thermoplastic |
|
Type of protection |
IP 20 |
|
Protection class |
II as per EN 60 730-1 |
|
Ambient temperature |
-10°C...+50°C |
- Hàng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
