Mã số:13141964

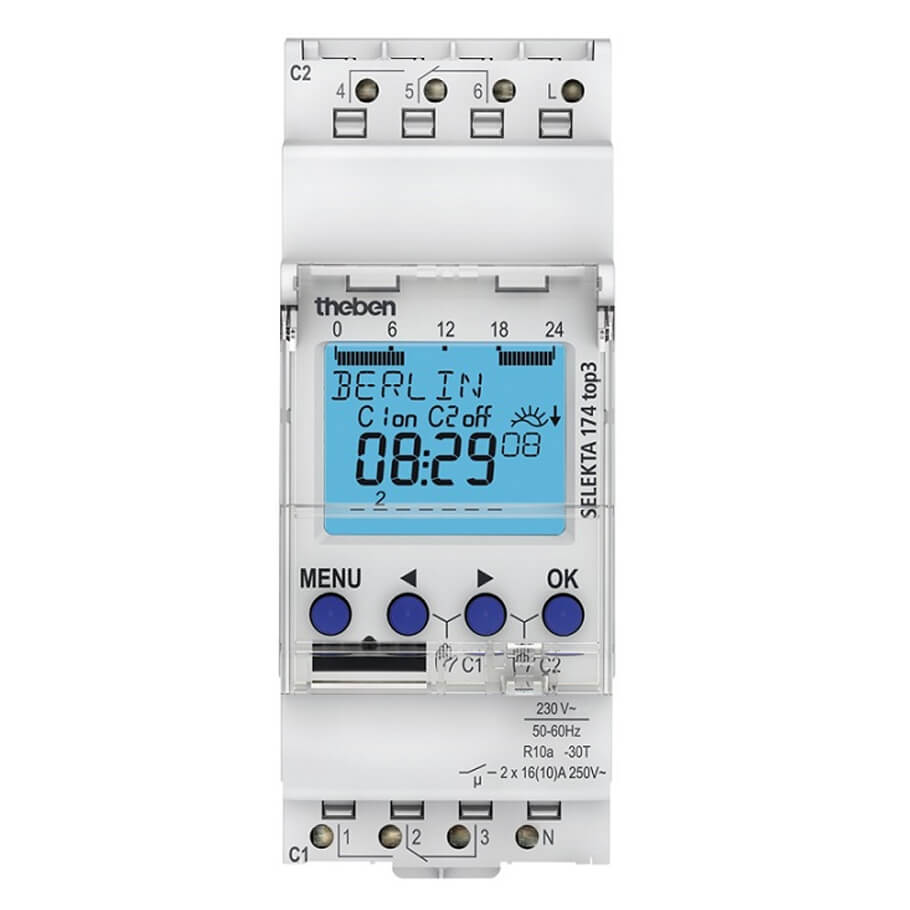

Công tắc thời gian thiên văn THEBEN SELEKTA 174 top3
- Astronomical time switch with weekly program
- 2 channels
- 56 memory locations
- Programming by app possible
- Safe transfer via optional Bluetooth Low Energy OBELISK top3
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
- 100 % compatible with top2
- Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)
- Offset for adjusting of sunrise and sunset times
- Position data via coordinates or country/city lists can be programmed
Thông số kỹ thuật
| Model | SELEKTA 174 top3 |
| Operating voltage | 230 V AC |
| Frequency | 50 – 60 Hz |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm (µ) |
| Program | Weekly program, Astronomical program |
| Program functions | ON-OFF |
| Number of channels | 2 |
| Number of memory locations | 56 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ = 1 | 16A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 10A |
| Incandescent/halogen lamp load | 2600 W |
| Energy saving lamps | 1100 W |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Fluorescent lamp load (conventional) not corrected | 2600 VA |
| Fluorescent lamp load (conventional) series-corrected | 2600 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 1300 VA |
| Inrush current | max. 800 A / 200 µs |
| Switching capacity min. | ca. 10 mA |
| Shortest switching times | 1 min |
| Time accuracy at 25 °C | typical ± 0,25 s/day (quartz) |
| Time basis | Quartz |
| Stand-by consumption | ~0.4 W |
| Type of connection | DuoFix spring terminals |
| Display | LCD-Anzeige mit Textzeile |
| Keyboards | 4 touch buttons |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 230 V AC |
| Ambient temperature | -30°C ... 55°C |
- Bảo hành: 12 tháng.
Giá: 4.498.000 VND
