0916 287 068 Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp mạng HIKVISION >> Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G
Giảm giá 50.000 đồng
Mã số:11218594

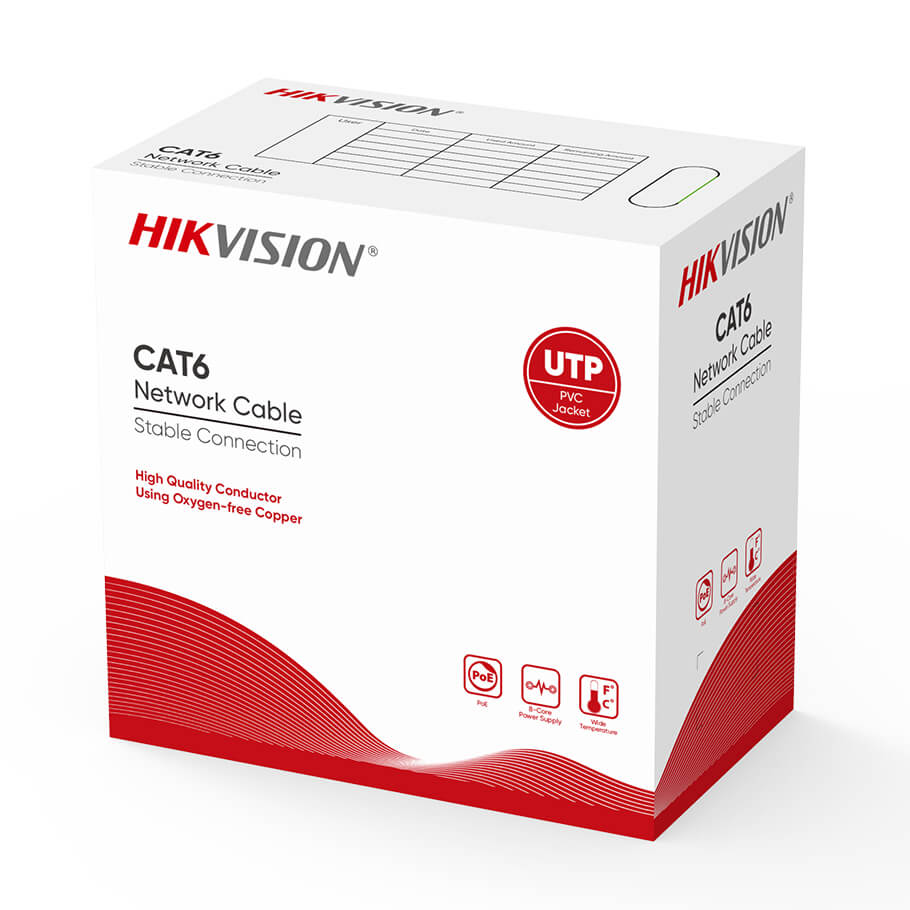

Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G
- U/UTP Cat6 PVC 23 AWG Cable.
- Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Thông số kỹ thuật
| Model | DS-1LN6U-G |
| Category | Cat.6 |
| Sheath printing | HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS |
| Reference standard | ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 |
| Fire resistance | No |
| Conductor | - Material: Solid-Bare Copper (99.95%) - Diameter: 0.55 ± 0.005 mm, 23 AWG |
| Insulation | - Material: HDPE - Diameter: 0.98 ± 0.05 mm |
| Sheath | - Thickness: 0.50 ± 0.10 mm - Diameter: 6.00 ± 0.30 mm - Material: PVC - Color: Grey |
| Rip-cord | Yes |
| Separator | Yes |
| Sheath physical properties | - Before aging: + Tensile strength ≥ 13.5 Mpa + Elongation ≥ 150% - Aging period: 100°C × 24h × 10d - After aging: + Tensile strength ≥ 12.5 Mpa + Elongation ≥ 125% - Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
| Electrical Characteristics (20°C) | |
| 1.0-250.0 MHz impedance | 100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz |
| 1.0-250.0 MHz delay skew | ≤ 45 ns/100 m |
| DC resistance | ≤ 9.38 Ω/100 m |
| DC conductor resistance unbalance | ≤ 5.0% |
| Package dimension | 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75' × 15.75' × 9.45') |
| Weight | 12.3 ± 0.5kg |
| Cable length | (305 ± 1.5) m |
| Ambient temperature | -20°C to 75°C (-4°F to 167°F) |
| Operating voltage | 60 V |
Giá: 2.436.000 VND
(Đã bao gồm VAT)
Giảm giá 50.000 đồng
